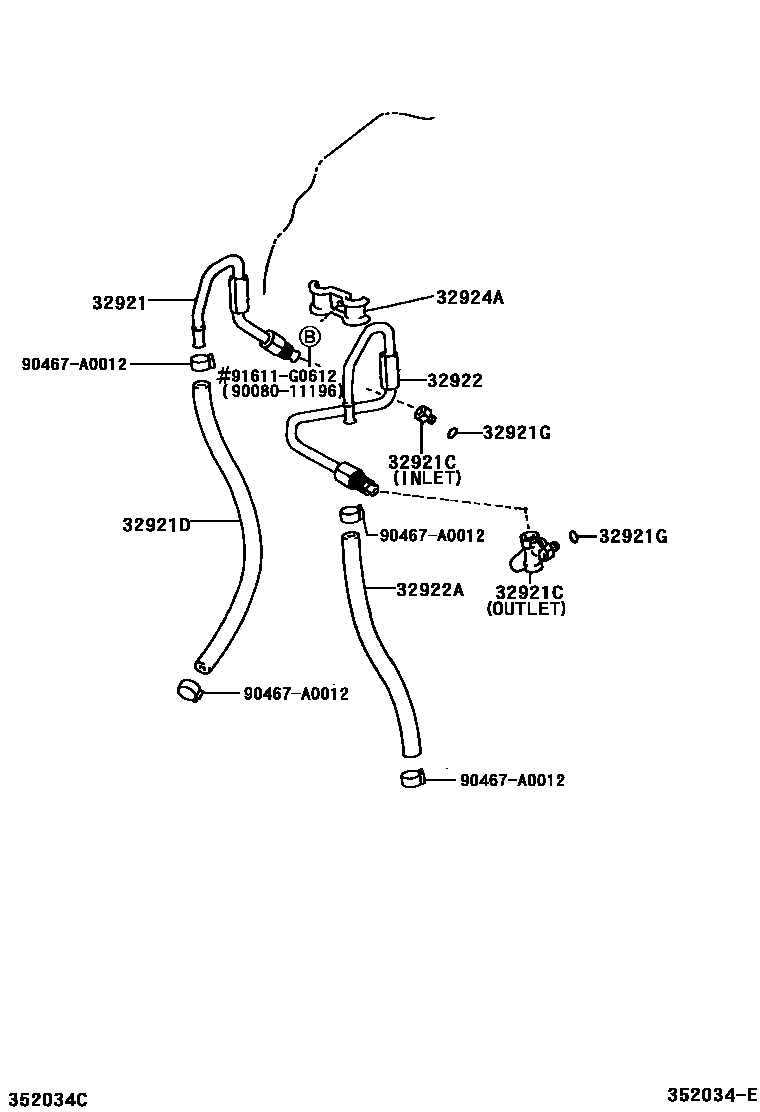

OIL COOLER & TUBE (ATM)

0001 1A541E 0002 1A541E,AIR COOLING OIL COOLER

32921TUBE, OIL COOLER INLET, NO.1

main32921-07010iMCX20199908-200206

32921CUNION(FOR OIL COOLER TUBE)

main32901-32050iMCX20199908-200206

OUTLET

main90404-16031iMCX20199908-200206

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-06030iMCX20199908-200206

main32941-07010iMCX20200206

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iMCX20199908-200206

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-07010iMCX20199908-200206

32922AHOSE(FOR OIL COOLER OUTLET)

main90080-44117iMCX20199908-200206

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-12074iMCX20199908-200206

9008011196

main90080-11196

90467A0012

main90467-A0012

91611G0612

main91611-G0612

10 parts on this diagram · 2 diagrams in section
