E
EPC Data

CRANKSHAFT & PISTON

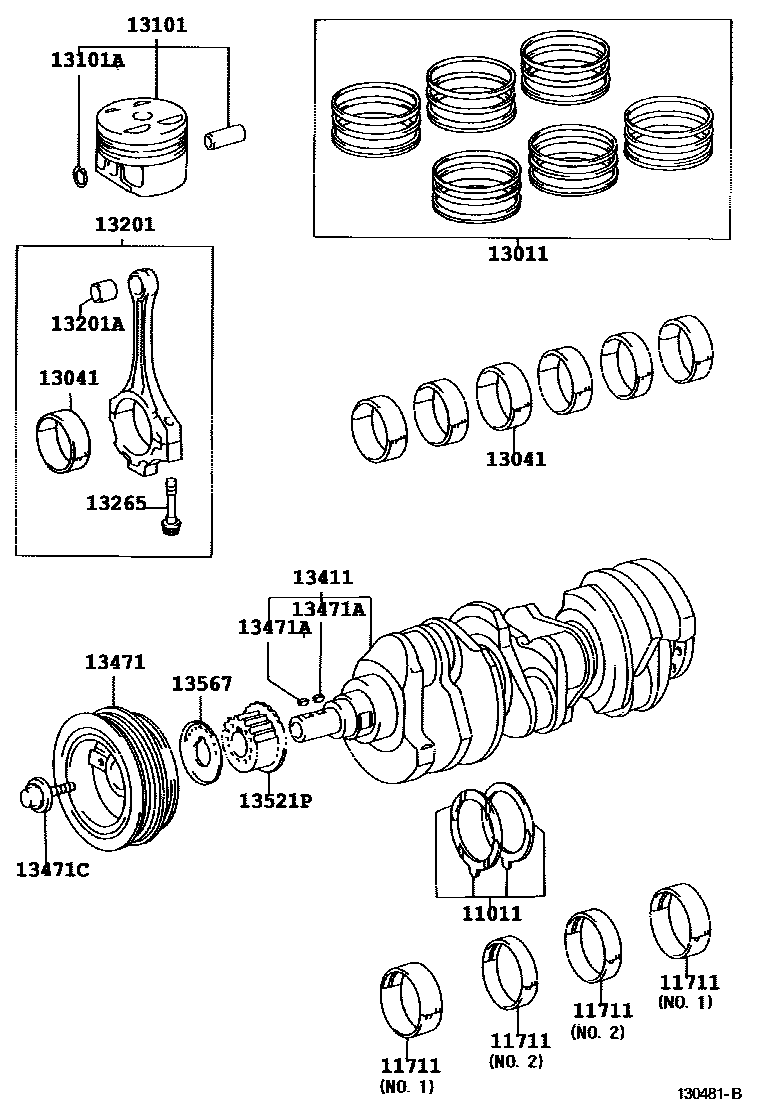

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-0A010i199908-200306
STD,(L)
sub11011-20020
main11011-20020i200306-200501
STD
main11011-20020i199908-200306
STD,(J)
11711BEARING, CRANKSHAFT
main11071-0A010-01i199908-200206
MARK 1,MARK 1,NO.2,(L)
sub11071-0A020
main11071-0A010-01i200206-200305
REFER TO REPAIR MANUAL,MARK 1,(L),NO.2
sub11071-0A020
main11071-0A010-02i199908-200206
MARK 2,MARK 2,NO.2,(L)
sub11071-0A020
main11071-0A010-02i200206-200305
REFER TO REPAIR MANUAL,MARK 2,(L),NO.2
sub11071-0A020
main11071-0A010-03i199908-200206
MARK 3,MARK 3,NO.2,(L)
sub11071-0A020
main11071-0A010-03i200206-200305
MARK 3,(L),NO.2
sub11071-0A020
main11071-0A010-04i199908-200206
MARK 4,MARK 4,NO.2,(L)
sub11071-0A020
main11071-0A010-04i200206-200305
REFER TO REPAIR MANUAL,MARK 4,(L),NO.2
sub11071-0A020
main11071-0A010-05i199908-200206
MARK 5,MARK 5,NO.2,(L)
sub11071-0A020
main11071-0A010-05i200206-200305
REFER TO REPAIR MANUAL,MARK 5,(L),NO.2
sub11071-0A020
main11071-0A010-06i200206-200305
REFER TO REPAIR MANUAL,MARK 6,(L),NO.2
sub11071-0A020
main11071-0A010-07i200206-200305
REFER TO REPAIR MANUAL,MARK 7,(L),NO.2
sub11071-0A020
main11071-0A020-01i200305-200306
REFER TO REPAIR MANUAL,MARK 1,(L),NO.2
sub11071-20021
main11071-0A020-02i200305-200306
REFER TO REPAIR MANUAL,MARK 2,(L),NO.2
sub11071-20021
main11071-0A020-03i200305-200306
REFER TO REPAIR MANUAL,MARK 3,(L),NO.2
sub11071-20021
main11071-0A020-04i200305-200306
REFER TO REPAIR MANUAL,MARK 4,(L),NO.2
sub11071-20021
main11071-0A020-05i200305-200306
REFER TO REPAIR MANUAL,MARK 5,(L),NO.2
sub11071-20021
main11071-0A020-06i200305-200306
REFER TO REPAIR MANUAL,MARK 6,(L),NO.2
sub11071-20021
main11071-0A020-07i200305-200306
REFER TO REPAIR MANUAL,MARK 7,(L),NO.2
sub11071-20021
main11071-20020-01i200306-200412
REFER TO REPAIR MANUAL,MARK 1,NO.2
sub11071-20021
main11071-20020-01i200206-200306
REFER TO REPAIR MANUAL,MARK 1,(J),NO.2
sub11071-20021
main11071-20020-01i199908-200206
MARK 1,MARK 1,NO.2,(J)
sub11071-20021
main11071-20020-02i200206-200306
REFER TO REPAIR MANUAL,MARK 2,(J),NO.2
sub11071-20021
main11071-20020-02i199908-200206
MARK 2,MARK 2,NO.2,(J)
sub11071-20021
main11071-20020-02i200306-200412
REFER TO REPAIR MANUAL,MARK 2,NO.2
sub11071-20021
main11071-20020-03i200206-200306
REFER TO REPAIR MANUAL,MARK 3,(J),NO.2
sub11071-20021
main11071-20020-03i199908-200206
MARK 3,MARK 3,NO.2,(J)
sub11071-20021
main11071-20020-03i200306-200412
REFER TO REPAIR MANUAL,MARK 3,NO.2
sub11071-20021
main11071-20020-04i199908-200206
MARK 4,MARK 4,NO.2,(J)
sub11071-20021
main11071-20020-04i200206-200306
REFER TO REPAIR MANUAL,MARK 4,(J),NO.2
sub11071-20021
main11071-20020-04i200306-200412
REFER TO REPAIR MANUAL,MARK 4,NO.2
sub11071-20021
main11071-20020-05i199908-200206
MARK 5,MARK 5,NO.2,(J)
sub11071-20021
main11071-20020-05i200306-200412
REFER TO REPAIR MANUAL,MARK 5,NO.2
sub11071-20021
main11071-20020-05i200206-200306
REFER TO REPAIR MANUAL,MARK 5,(J),NO.2
sub11071-20021
main11071-20020-06i200206-200306
REFER TO REPAIR MANUAL,MARK 6,(J),NO.2
sub11071-20021
main11071-20020-06i200101-200206
MARK 6,MARK 6,NO.2,(J)
sub11071-20021
main11071-20020-06i200306-200412
REFER TO REPAIR MANUAL,MARK 6,NO.2
sub11071-20021
main11071-20020-07i200206-200306
REFER TO REPAIR MANUAL,MARK 7,(J),NO.2
sub11071-20021
main11071-20020-07i200306-200412
REFER TO REPAIR MANUAL,MARK 7,NO.2
sub11071-20021
main11071-20020-07i200101-200206
MARK 7,MARK 7,NO.2,(J)
sub11071-20021
main11071-20021-01i200412-200501
REFER TO REPAIR MANUAL,MARK1,NO.2
main11071-20021-02i200412-200501
REFER TO REPAIR MANUAL,MARK2,NO.2
main11071-20021-03i200412-200501
REFER TO REPAIR MANUAL,MARK3,NO.2
main11071-20021-04i200412-200501
REFER TO REPAIR MANUAL,MARK4,NO.2
main11071-20021-05i200412-200501
REFER TO REPAIR MANUAL,MARK5,NO.2
main11071-20021-06i200412-200501
REFER TO REPAIR MANUAL,MARK6,NO.2
main11071-20021-07i200412-200501
REFER TO REPAIR MANUAL,MARK7,NO.2
main11701-0A010-03i200206-200305
REFER TO REPAIR MANUAL,MARK 3,(L),NO.1
sub11701-0A010
sub11701-0A020
main11701-0A010-03i199908-200206
MARK 3,MARK 3,NO.1,(L)
sub11701-0A010
sub11701-0A020
main11701-0A010-04i200206-200305
REFER TO REPAIR MANUAL,MARK 4,(L),NO.1
sub11701-0A010
sub11701-0A020
main11701-0A010-04i199908-200206
MARK 4,MARK 4,NO.1,(L)
sub11701-0A010
sub11701-0A020
main11701-0A010-05i199908-200206
MARK 5,MARK 5,NO.1,(L)
sub11701-0A010
sub11701-0A020
main11701-0A010-05i200206-200305
REFER TO REPAIR MANUAL,MARK 5,(L),NO.1
sub11701-0A010
sub11701-0A020
main11701-0A010-06i200206-200305
REFER TO REPAIR MANUAL,MARK 6,(L),NO.1
sub11701-0A010
sub11701-0A020
main11701-0A010-06i199908-200206
MARK 6,MARK 6,NO.1,(L)
sub11701-0A010
sub11701-0A020
main11701-0A010-07i199908-200206
MARK 7,MARK 7,NO.1,(L)
sub11701-0A010
sub11701-0A020
main11701-0A010-07i200206-200305
REFER TO REPAIR MANUAL,MARK 7,(L),NO.1
sub11701-0A010
sub11701-0A020
main11701-0A020-01i200305-200306
REFER TO REPAIR MANUAL,MARK 1,(L),NO.1
sub11701-20030
main11701-0A020-02i200305-200306
REFER TO REPAIR MANUAL,MARK 2,(L),NO.1
sub11701-20030
main11701-0A020-03i200305-200306
REFER TO REPAIR MANUAL,MARK 3,(L),NO.1
sub11701-20030
main11701-0A020-04i200305-200306
REFER TO REPAIR MANUAL,MARK 4,(L),NO.1
sub11701-20030
main11701-0A020-05i200305-200306
REFER TO REPAIR MANUAL,MARK 5,(L),NO.1
sub11701-20030
main11701-0A020-06i200305-200306
REFER TO REPAIR MANUAL,MARK 6,(L),NO.1
sub11701-20030
main11701-0A020-07i200305-200306
REFER TO REPAIR MANUAL,MARK 7,(L),NO.1
sub11701-20030
main11701-20020-01i200306-200412
REFER TO REPAIR MANUAL,MARK 1,NO.1
sub11701-20030
main11701-20020-01i200101-200206
MARK 1,MARK 1,NO.1,(J)
sub11701-20030
main11701-20020-01i200206-200306
REFER TO REPAIR MANUAL,MARK 1,(J),NO.1
sub11701-20030
main11701-20020-02i200101-200206
MARK 2,MARK 2,NO.1,(J)
sub11701-20030
main11701-20020-02i200306-200412
REFER TO REPAIR MANUAL,MARK 2,NO.1
sub11701-20030
main11701-20020-02i200206-200306
REFER TO REPAIR MANUAL,MARK 2,(J),NO.1
sub11701-20030
main11701-20020-03i200306-200412
REFER TO REPAIR MANUAL,MARK 3,NO.1
sub11701-20030
main11701-20020-03i199908-200206
MARK 3,MARK 3,NO.1,(J)
sub11701-20030
main11701-20020-03i200206-200306
REFER TO REPAIR MANUAL,MARK 3,(J),NO.1
sub11701-20030
main11701-20020-04i199908-200206
MARK 4,MARK 4,NO.1,(J)
sub11701-20030
main11701-20020-04i200306-200412
REFER TO REPAIR MANUAL,MARK 4,NO.1
sub11701-20030
main11701-20020-04i200206-200306
REFER TO REPAIR MANUAL,MARK 4,(J),NO.1
sub11701-20030
main11701-20020-05i199908-200206
MARK 5,MARK 5,NO.1,(J)
sub11701-20030
main11701-20020-05i200206-200306
REFER TO REPAIR MANUAL,MARK 5,(J),NO.1
sub11701-20030
main11701-20020-05i200306-200412
REFER TO REPAIR MANUAL,MARK 5,NO.1
sub11701-20030
main11701-20020-06i200306-200412
REFER TO REPAIR MANUAL,MARK 6,NO.1
sub11701-20030
main11701-20020-06i199908-200206
MARK 6,MARK 6,NO.1,(J)
sub11701-20030
main11701-20020-06i200206-200306
REFER TO REPAIR MANUAL,MARK 6,(J),NO.1
sub11701-20030
main11701-20020-07i200306-200412
REFER TO REPAIR MANUAL,MARK 7,NO.1
sub11701-20030
main11701-20020-07i199908-200206
MARK 7,MARK 7,NO.1,(J)
sub11701-20030
main11701-20020-07i200206-200306
REFER TO REPAIR MANUAL,MARK 7,(J),NO.1
sub11701-20030
main11701-20030-01i200412-200501
REFER TO REPAIR MANUAL,MARK1,NO.1
main11701-20030-02i200412-200501
REFER TO REPAIR MANUAL,MARK2,NO.1
main11701-20030-03i200412-200501
REFER TO REPAIR MANUAL,MARK3,NO.1
main11701-20030-04i200412-200501
REFER TO REPAIR MANUAL,MARK4,NO.1
main11701-20030-05i200412-200501
REFER TO REPAIR MANUAL,MARK5,NO.1
main11701-20030-06i200412-200501
REFER TO REPAIR MANUAL,MARK6,NO.1
main11701-20030-07i200412-200501
REFER TO REPAIR MANUAL,MARK7,NO.1
13011RING SET, PISTON
main13011-0A020i200110-200306
STD,(L)
main13011-20022i200110-200206
STD,(J)
sub13011-20023
main13011-20023i200206-200501
STD
main13011-20030i199908-200110
STD
13041BEARING, CONNECTING ROD
main13041-0A010-01i199908-200306
REFER TO REPAIR MANUAL,MARK 1,(L)
main13041-0A010-02i199908-200306
REFER TO REPAIR MANUAL,MARK 2,(L)
main13041-0A010-03i199908-200306
REFER TO REPAIR MANUAL,MARK 3,(L)
main13041-0A010-04i199908-200306
REFER TO REPAIR MANUAL,MARK 4,(L)
main13041-20010-01i200306-200412
REFER TO REPAIR MANUAL,MARK 1
sub13041-20011
main13041-20010-01i199908-200306
REFER TO REPAIR MANUAL,MARK 1,(J)
sub13041-20011
main13041-20010-02i199908-200306
REFER TO REPAIR MANUAL,MARK 2,(J)
sub13041-20011
main13041-20010-02i200306-200412
REFER TO REPAIR MANUAL,MARK 2
sub13041-20011
main13041-20010-03i199908-200306
REFER TO REPAIR MANUAL,MARK 3,(J)
sub13041-20011
main13041-20010-03i200306-200412
REFER TO REPAIR MANUAL,MARK 3
sub13041-20011
main13041-20010-04i199908-200306
REFER TO REPAIR MANUAL,MARK 4,(J)
sub13041-20011
main13041-20010-04i200306-200412
REFER TO REPAIR MANUAL,MARK 4
sub13041-20011
main13041-20011-01i200412-200501
REFER TO REPAIR MANUAL,MARK1
main13041-20011-02i200412-200501
REFER TO REPAIR MANUAL,MARK2
main13041-20011-03i200412-200501
REFER TO REPAIR MANUAL,MARK3
main13041-20011-04i200412-200501
REFER TO REPAIR MANUAL,MARK4
13101PISTON SUB-ASSY, W/PIN
main13101-0A020i199908-200306
STD,(L),RH
sub13101-20030
main13101-20041i200306
STD,RH
main13301-0A020i199908-200306
STD,(L),LH
main13301-20031i200306
STD,LH
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i200003-200306
main90521-25004i199908-200003
sub90520-22025
13201ROD SUB-ASSY, CONNECTING
main13201-09070i199908-200206
(L)
sub13201-09190
main13201-09180i200211-200306
sub13201-29165
main13201-09180i200307-200312
(L)
sub13201-29165
main13201-09190i200206-200211
(L)
main13201-29015i199908-200206
(J)
sub13201-29155
main13201-29155i200206-200211
(J)
sub13201-29525
main13201-29165i200307-200312
(J)
sub13201-29525
main13201-29525i200312-200501
(L)
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73119i199908-200306
13265BOLT, CONNECTING ROD
main13265-28010i200206-200501
sub13265-28020
main13265-50020i199908-200206
13411CRANKSHAFT
main13401-0A020i199908-200306
(L)
main13401-20030i200206-200501
main13401-20030i199908-200206
(J)
13471PULLEY, CRANKSHAFT
main13408-0A010i199908-200501
main13408-20010i200306-200501
(J)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30516i199908-200501
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16004i199908-200501
13521PPULLEY, CRANKSHAFT TIMING
main13521-0A010i199908-200306
(L)
sub13521-20020
main13521-20020i200306-200501
(J)
13567GUIDE, TIMING BELT, NO.2
main13567-62010i199908-200501

15 parts on this diagram · 1 diagram in section
