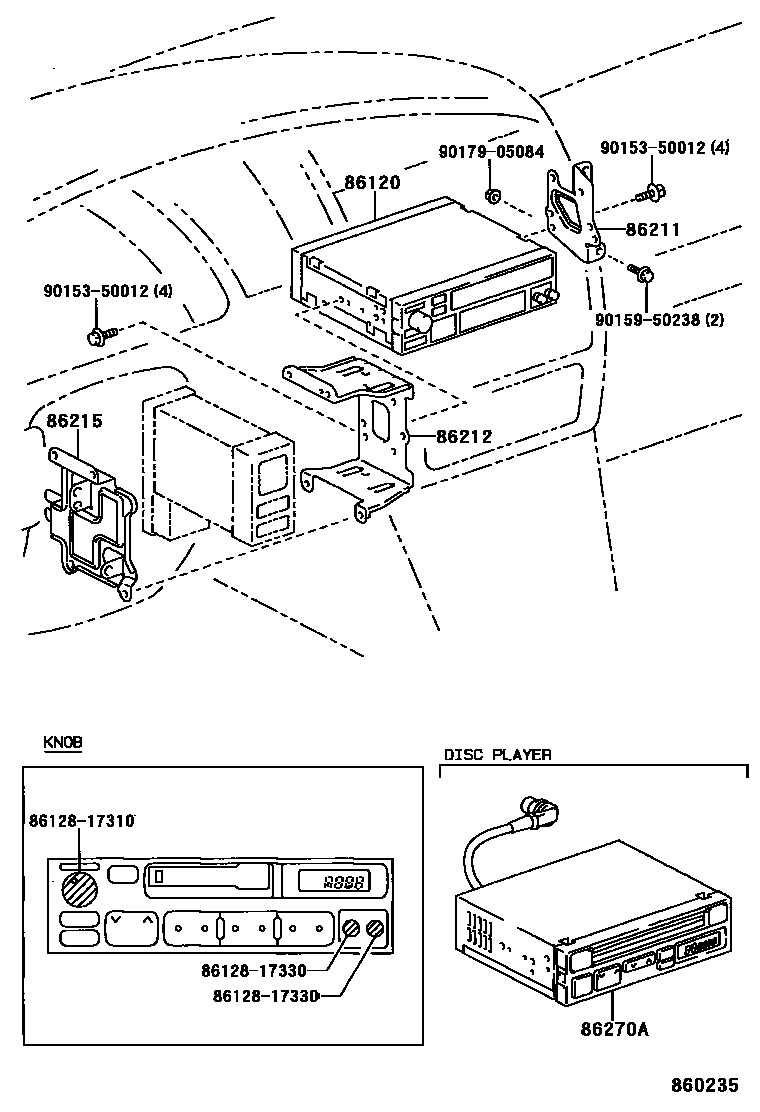

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RADIO 0002 1CONDENSOR & NOISE FILTER

86120RECEIVER ASSY, RADIO

main86120-2A180iMCX10199508

MATSUSHITA,ID=57403

86211BRACKET, RADIO, NO.1

main86211-AC020iMCX10199508

86212BRACKET, RADIO, NO.2

main86212-AC020iMCX10199508

86215BRACKET, RADIO, NO.5

main86215-AC020iMCX10199508

86270ADISC PLAYER ASSY

main86270-89101iMCX10199508

8612817310KNOB, RADIO RECEIVER

main86128-17310

8612817330KNOB, RADIO RECEIVER

main86128-17330

9015350012

main90153-50012

9015950238

main90159-50238

9017905084

main90179-05084

10 parts on this diagram · 2 diagrams in section
