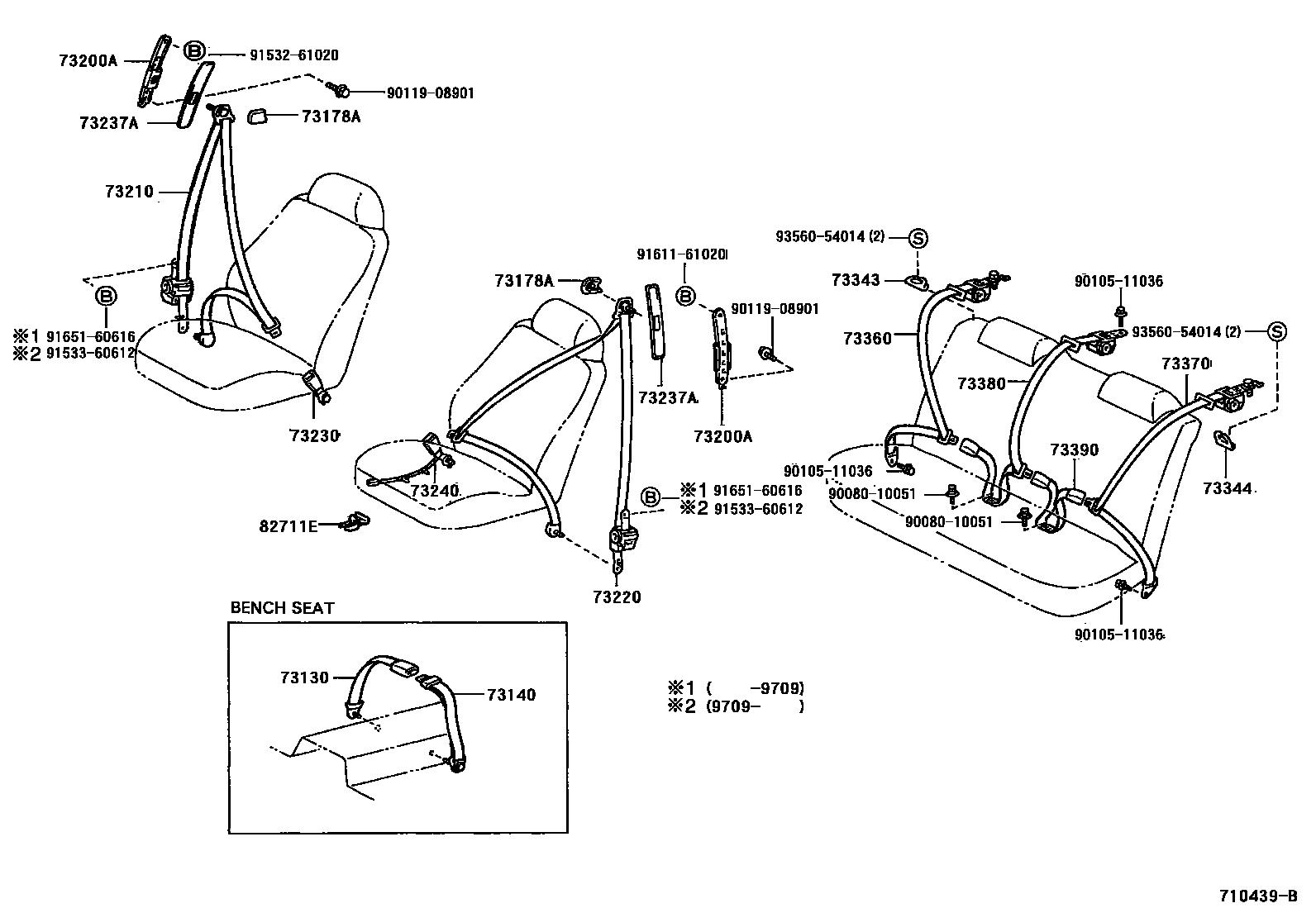

SEAT BELT & CHILD RESTRAINT SEAT
73130BELT ASSY, FRONT SEAT LAP TYPE, RH
73140BELT ASSY, FRONT SEAT LAP TYPE, LH
73178ACAP, SEAT BELT ANCHOR COVER
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
IVORY,TRIM44
BLUISH GRAY,TRIM2#
QUARTZ,TRIM43
ADOBE,TRIM42
73210BELT ASSY, FRONT SEAT OUTER, RH
73220BELT ASSY, FRONT SEAT OUTER, LH
73230BELT ASSY, FRONT SEAT INNER, RH
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM43
QUARTZ,TRIM41
LT. ADOBE,TRIM42
73237ACOVER, SHOULDER BELT ANCHOR
IVORY,TRIM44
BLUISH GRAY,TRIM2#
QUARTZ,TRIM43
QUARTZ,TRIM41
LT. ADOBE,TRIM42
73240BELT ASSY, FRONT SEAT INNER, LH
73343GUIDE, REAR SEAT SHOULDER BELT, RH
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM41
QUARTZ,TRIM43
LT. ADOBE,TRIM42
73344GUIDE, REAR SEAT SHOULDER BELT, LH
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM41
QUARTZ,TRIM43
LT. ADOBE,TRIM42
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
82711ECLAMP, WIRING HARNESS
9008010051
main90080-10051
9010511036
main90105-11036
9011908901
main90119-08901
9153261020
main91532-61020
9153360612
main91533-60612
9161161020
main91611-61020
9165160616
main91651-60616
9356054014
main93560-54014
24 parts on this diagram · 1 diagram in section
