LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-41010iMCX10199508

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-41010iMCX10199608

main69052-41020iMCX10199508-199608

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-41050iMCX10199508-199709

sub69055-33350

main69055-41060iMCX10..XL199709

main69055-41090iMCX10..XLS199709

sub69055-41101

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-41010iMCX10199508

sub69057-48011

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-33010iMCX10199508

sub69056-42020

69503CYLINDER SET, LOCK

main69005-41071iMCX10199508-199608

main69005-41072iMCX10199608-199709

main69005-41080iMCX10..XL199709

main69005-41100iMCX10..XLS199709

69503AKEY, BLANK

main90999-00185×2iMCX10..XLS199508

MASTER KEY,W(*68)

main90999-00186iMCX10..XL199709

MASTER KEY

main90999-00188iMCX10199508

SUB KEY

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-41010-A0iMCX10199508-199709

WHITE,040 ,051

main69561-41010-C0iMCX10199508-199608

BLACK,202 ,3L3 ,4M9 ,6M3 ,751 ,8K0 ,927

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20080iMCX10..XL199709

main69759-24080iMCX10..XLS199508

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080iMCX10199508

ORANGE

main69759-22090iMCX10199508

PINK

8401

9010506082

main90105-06082

9151160616

main91511-60616

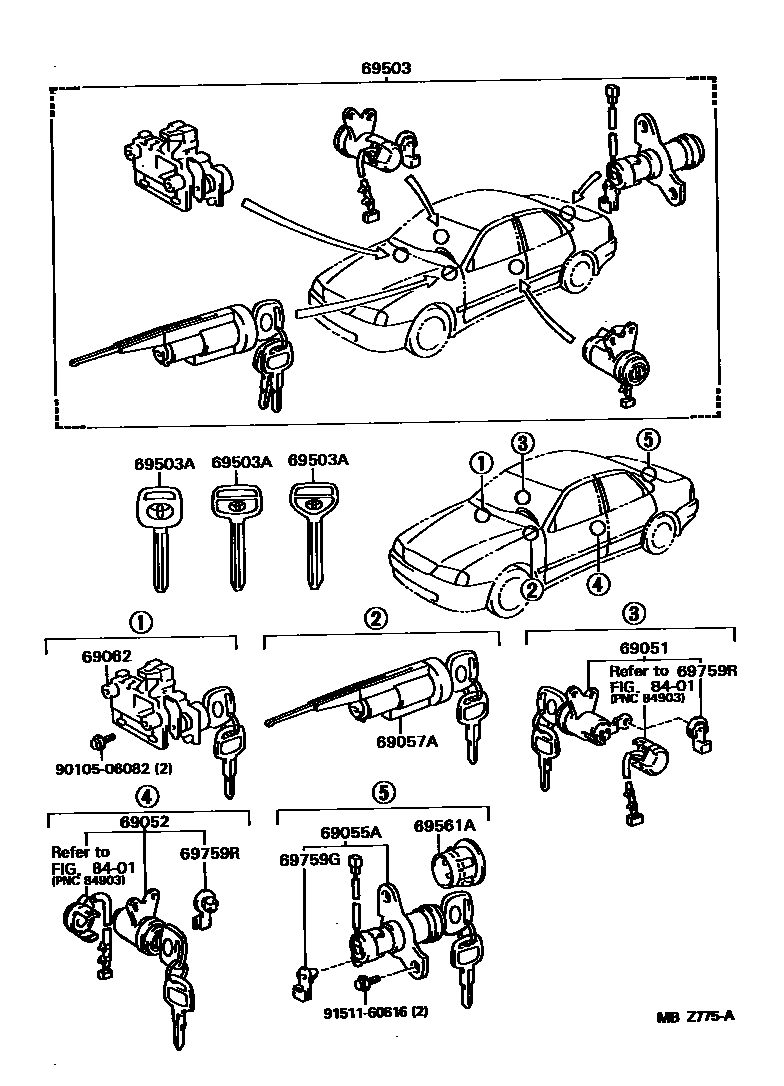

13 parts on this diagram · 1 diagram in section
