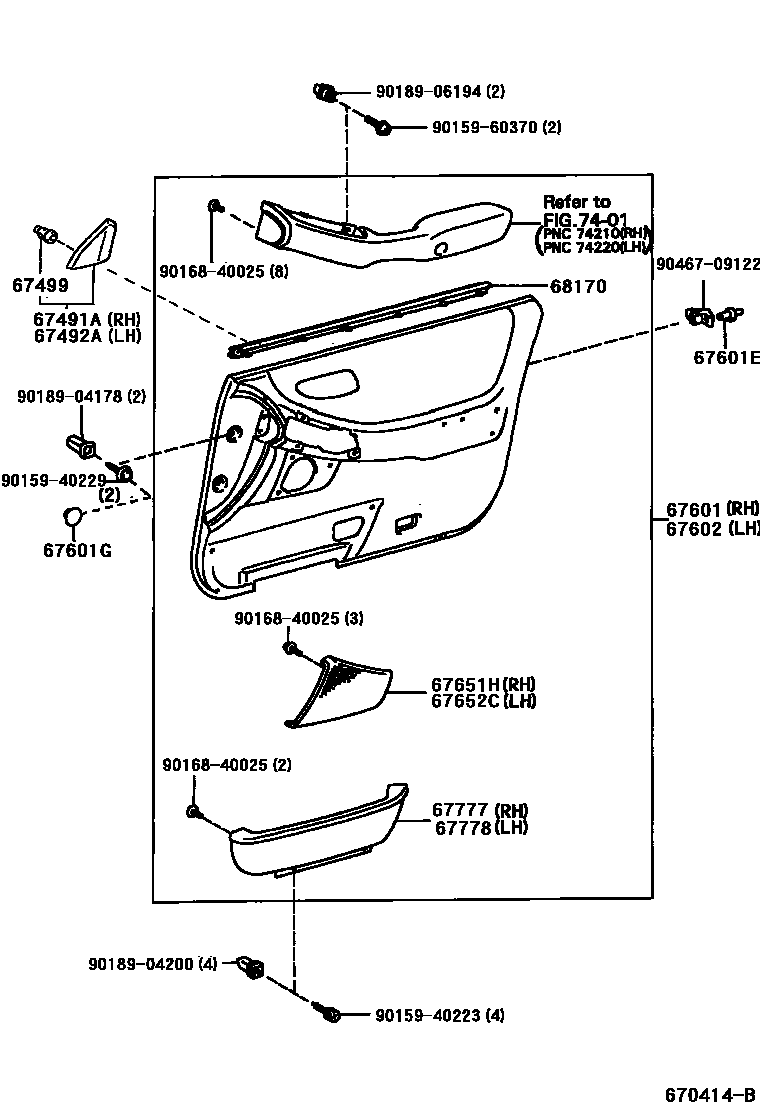

FRONT DOOR PANEL & GLASS
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
GRAY,TRIM2#
QUARTZ,TRIM41
ADOBE,TRIM42
LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE,ROSE STONE,TRIM43
LEATHER PACKAGE,SANSAL WOOD,TRIM44
BLACK,TRIM2#
ROSE STONE,TRIM43
SANSAL WOOD,TRIM44
BLACK,TRIM2#
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
67601ECAP(FOR FRONT DOOR TRIM BOARD)
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
GRAY,TRIM2#
QUARTZ,TRIM41
ADOBE,TRIM42
LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE,ROSE STONE,TRIM43
LEATHER PACKAGE,SANSAL WOOD,TRIM44
BLACK,TRIM2#
ROSE STONE,TRIM43
SANSAL WOOD,TRIM44
BLACK,TRIM2#
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
67651HGRILLE, SPEAKER DOOR, RH
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM43
IVORY,TRIM44
BLACK,TRIM2#
DK. ROSE,TRIM43
DK. ROSE,TRIM41
ADOBE,TRIM42
67652CGRILLE, SPEAKER DOOR, LH
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM43
IVORY,TRIM44
BLACK,TRIM2#
DK. ROSE,TRIM43
DK. ROSE,TRIM41
ADOBE,TRIM42
67777POCKET, FRONT DOOR TRIM, RH
IVORY,TRIM44
BLUISH GRAY,TRIM2#
QUARTZ,TRIM43
QUARTZ,TRIM41
ADOBE,TRIM42
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM43
67778POCKET, FRONT DOOR TRIM, LH
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM43
IVORY,TRIM44
BLUISH GRAY,TRIM2#
QUARTZ,TRIM43
QUARTZ,TRIM41
ADOBE,TRIM42
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
9015940223
main90159-40223
9015940229
main90159-40229
9015960370
main90159-60370
9016840025
main90168-40025
9018904178
main90189-04178
9018904200
main90189-04200
9018906194
main90189-06194
9046709122
main90467-09122
20 parts on this diagram · 2 diagrams in section
