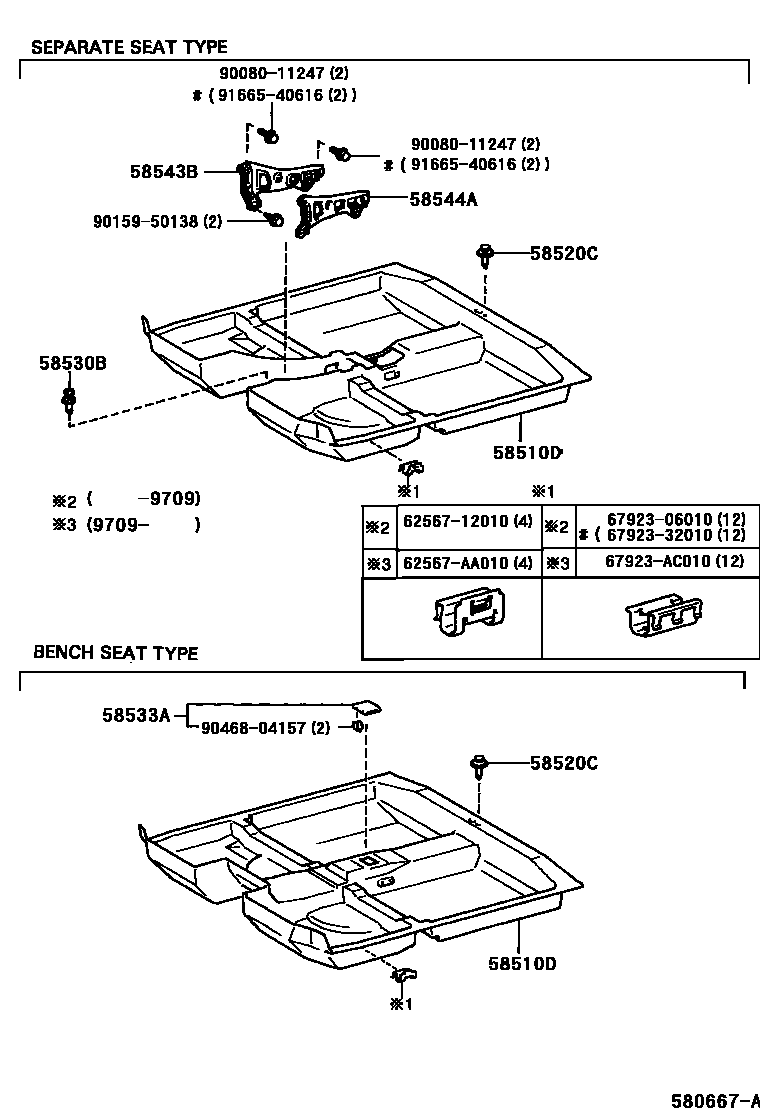

MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
GRAY,TRIM2#
QUARTZ,TRIM41
ADOBE,TRIM42
IVORY,TRIM44
BLUISH GRAY,TRIM2#
QUARTZ,TRIM41
QUARTZ,TRIM43
ADOBE,TRIM42
IVORY,TRIM44
GRAY,TRIM2#
QUARTZ,TRIM43
QUARTZ,TRIM41
ADOBE,TRIM42
58520CCLIP(FOR FRONT FLOOR CARPET)
58530BCLIP(FOR FRONT FLOOR CARPET)
58533ACOVER, FLOOR CARPET, CENTER RH
IVORY,TRIM44
BLUISH GRAY,TRIM2#
QUARTZ,TRIM43
QUARTZ,TRIM41
ADOBE,TRIM42
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
6256712010COVER, QUARTER TRIM, REAR LOWER RH
main62567-12010
62567AA010COVER, QUARTER TRIM, REAR LOWER RH
main62567-AA010
6792306010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-06010
6792332010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-32010
67923AC010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-AC010
9008011247
main90080-11247
9015950138
main90159-50138
9046804157
main90468-04157
9166540616
main91665-40616
15 parts on this diagram · 1 diagram in section
