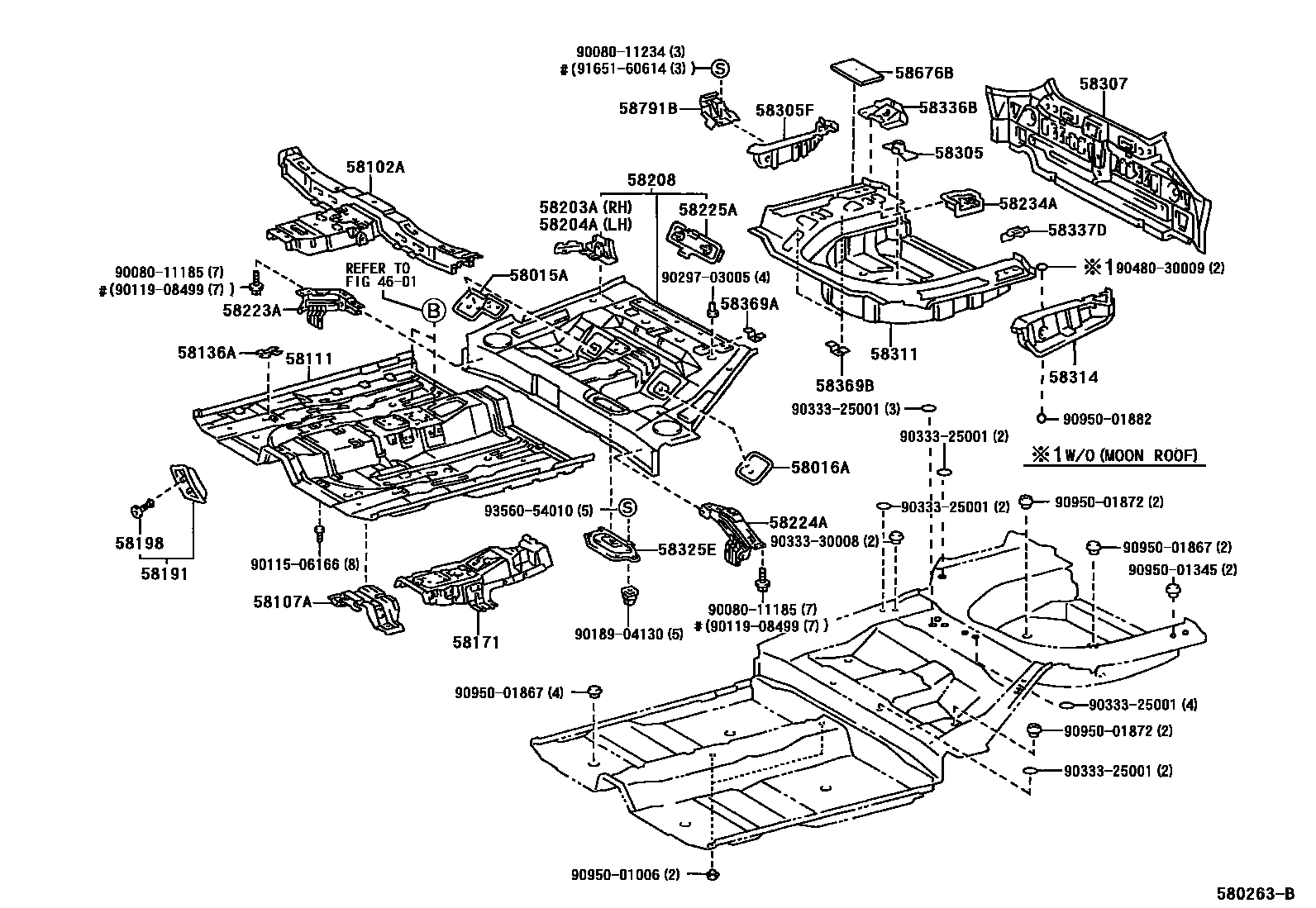

FLOOR PAN & LOWER BACK PANEL
4601
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58107ABRACKET SUB-ASSY, CLAMP SET, NO.1
58111PAN, FRONT FLOOR
58136ACOVER, FRONT FLOOR SERVICE HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58208PAN, CENTER FLOOR
58223AREINFORCEMENT, FLOOR SIDE PANEL, RH
58224AREINFORCEMENT, FLOOR SIDE PANEL, LH
58225ABRACKET, CENTER MOUNTING
58234ABRACKET, EXHAUST PIPE MOUNTING, INNER
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58307PANEL SUB-ASSY, BODY LOWER BACK
58314PANEL, REAR FLOOR SIDE, LH
58336BREINFORCEMENT, REAR FLOOR PAN
58337DREINFORCEMENT, REAR FLOOR PAN, LH
58369ABRACKET, FUEL TUBE, NO.3
58369BBRACKET, FUEL TUBE, NO.3
58676BPAD, REAR FLOOR SILENCER, NO.1 RH
58791BCARRIER, JACK
9008011185
main90080-11185
9008011234
main90080-11234
9011506166
9011908499
9018904130
9029703005
9033325001
9033330008
9048030009
9095001006
9095001345
9095001867
9095001872
9095001882
9165160614
9356054010
45 parts on this diagram · 1 diagram in section
