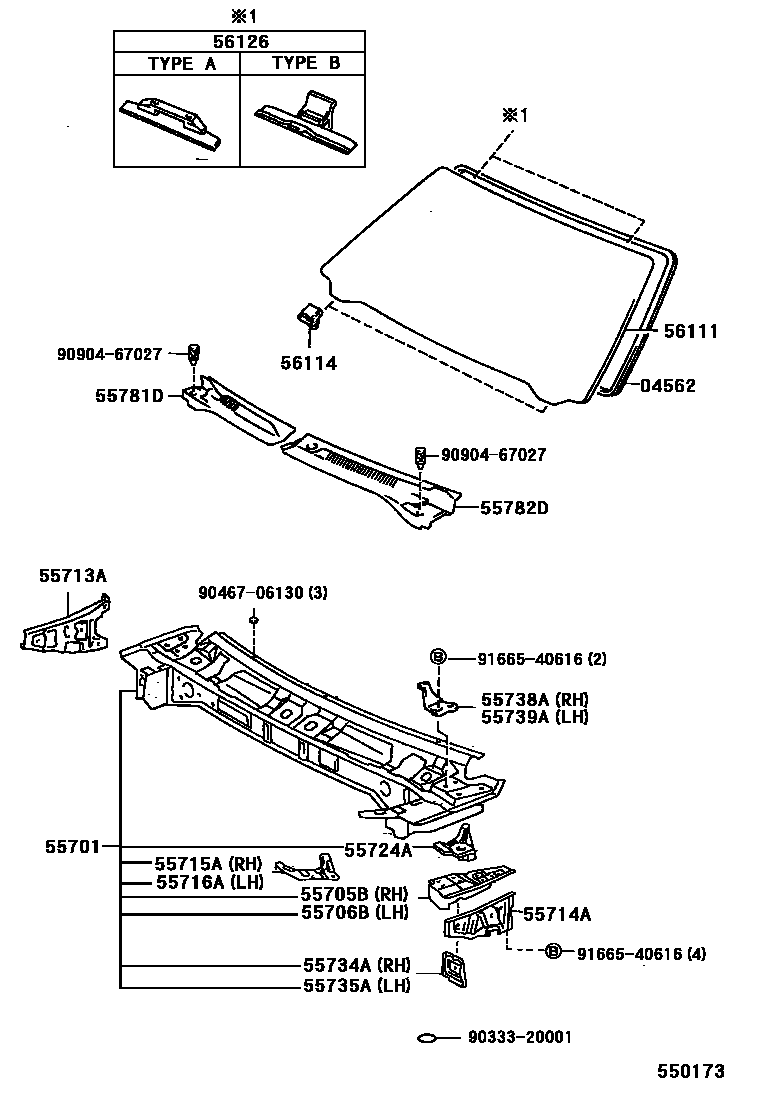

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iMCX10199508

55701PANEL SUB-ASSY, COWL

main55700-07010iMCX10199808

main55700-07030iMCX10199508-199808

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-07010iMCX10199508

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-07010iMCX10199508

55713APANEL, COWL TOP SIDE, RH

main55713-07010iMCX10199508

55714APANEL, COWL TOP SIDE, LH

main55714-07010iMCX10199508

55715ABRACE, COWL TOP TO APRON, RH

main55715-33010iMCX10199508

55716ABRACE, COWL TOP TO APRON, LH

main55716-33010iMCX10199508

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-07010iMCX10199508

55734APLATE, WATER GUARD, RH

main55734-06010iMCX10199508

(L)

main55734-33010iMCX10199508

(J)

55735APLATE, WATER GUARD, LH

main55735-06010iMCX10199508

(L)

main55735-33010iMCX10199508

(J)

55738ASTOPPER, HOOD, RH

main55738-07010iMCX10199508

55739ASTOPPER, HOOD, LH

main55739-07010iMCX10199508

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-41010iMCX10199508

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-41010iMCX10199508

56111GLASS, WINDSHIELD

main56101-AC030iMCX10199508-199608

main56101-AC050iMCX10199608-199709

*TL,T=4.8,GREEN

sub56101-AC100

main56101-AC080iMCX10199808

*TL,T=4.8,GREEN

main56101-AC100iMCX10199709-199808

*TL,T=4.8,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-06010iMCX10199508

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-22030iMCX10199508

TYPE A:REFER TO ILLUSTRATION

main56126-30010iMCX10199508-199709

TYPE B:REFER TO ILLUSTRATION

9033320001

main90333-20001

9046706130

main90467-06130

9090467027

main90904-67027

9166540616

main91665-40616

22 parts on this diagram · 1 diagram in section
