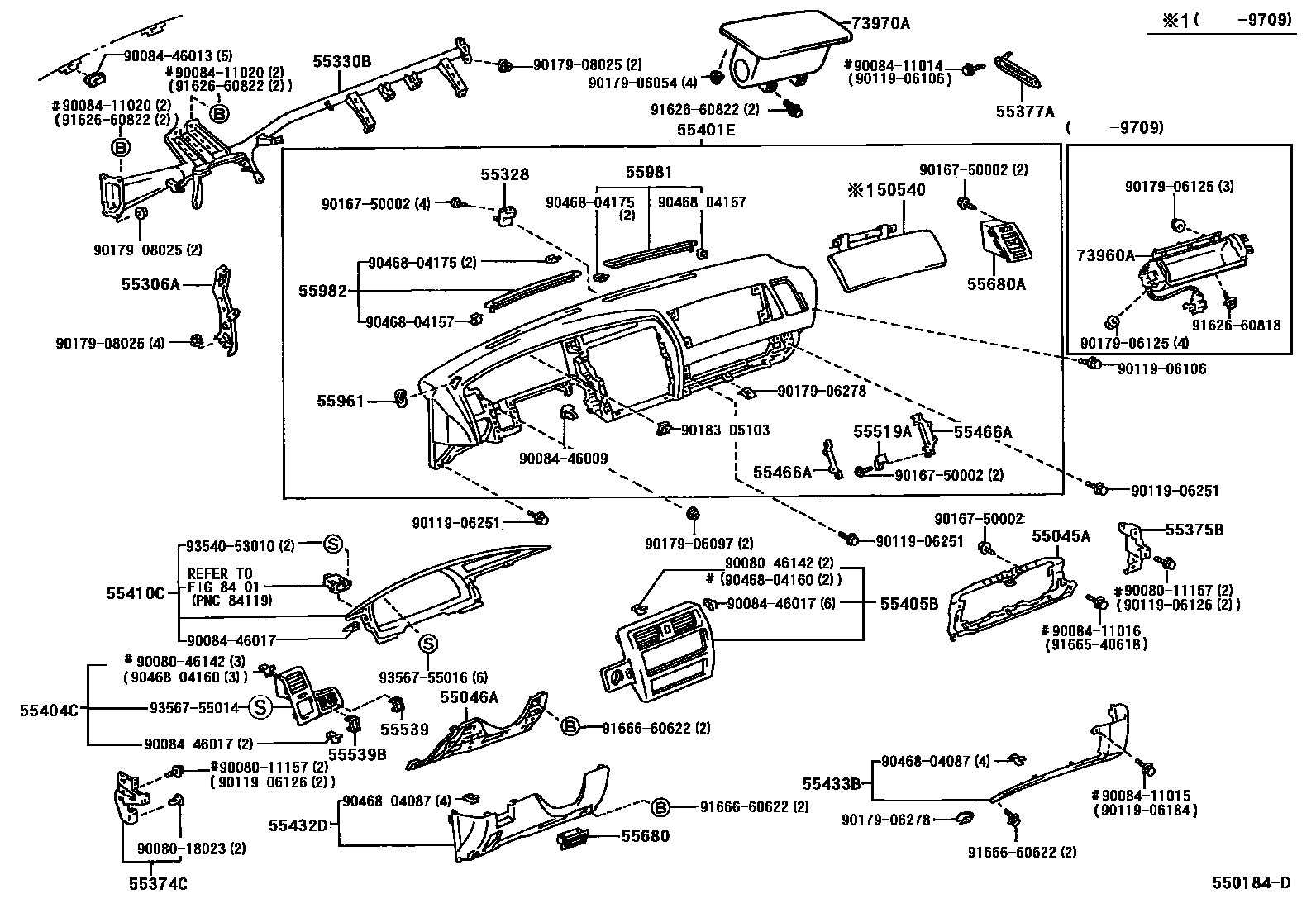

INSTRUMENT PANEL & GLOVE COMPARTMENT
50540DO0R ASSY, AIRBAG PASSENGER
BLACK,TRIM2#
DK. ROSE,TRIM41
ADOBE,TRIM42
ROSE STONE,TRIM43
55045APANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH
55046APANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM2#
DK. ROSE,TRIM41
ADOBE,TRIM42
ROSE STONE,TRIM43
BLACK,TRIM2#
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
BLACK,TRIM2#
DK. ROSE,TRIM41
ADOBE,TRIM42
BLACK,TRIM2#
BLACK,TRIM2#
DK. ADOBE,TRIM4#
ROSE STONE,TRIM4#
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
BLACK,TRIM2#
DK. ROSE,TRIM41
ADOBE,TRIM42
ROSE STONE,TRIM43
BLACK,TRIM2#
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH
55432DPANEL, INSTRUMENT PANEL FINISH, LOWER NO.1
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM43
LT. ADOBE,TRIM42
55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM41
LT. ADOBE,TRIM42
55466ARETAINER, INSTRUMENT PANEL SAFETY PAD
55519ASUPPORT, AIRBAG PASSENGER DOOR
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680AREGISTER ASSY, INSTRUMENT PANEL, NO.4
BLACK,TRIM2#
DK. ROSE,TRIM41
ADOBE,TRIM42
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,TRIM2#
DK. ROSE,TRIM41
ADOBE,TRIM42
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
55981GARNISH, DEFROSTER NOZZLE, NO.1
55982GARNISH, DEFROSTER NOZZLE, NO.2
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
BLACK,TRIM2#
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
8401
9008011157
main90080-11157
9008018023
main90080-18023
9008046142
main90080-46142
9008411014
main90084-11014
9008411015
main90084-11015
9008411016
main90084-11016
9008411020
main90084-11020
9008446009
main90084-46009
9008446013
main90084-46013
9008446017
main90084-46017
9011906106
main90119-06106
9011906126
main90119-06126
9011906184
main90119-06184
9011906251
main90119-06251
9016750002
main90167-50002
9017906054
main90179-06054
9017906097
main90179-06097
9017906125
main90179-06125
9017906278
main90179-06278
9017908025
main90179-08025
9018305103
main90183-05103
9046804087
main90468-04087
9046804157
main90468-04157
9046804160
main90468-04160
9046804175
main90468-04175
9162660818
main91626-60818
9162660822
main91626-60822
9166540618
main91665-40618
9166660622
main91666-60622
9354053010
main93540-53010
9356755014
main93567-55014
9356755016
main93567-55016
59 parts on this diagram · 2 diagrams in section
