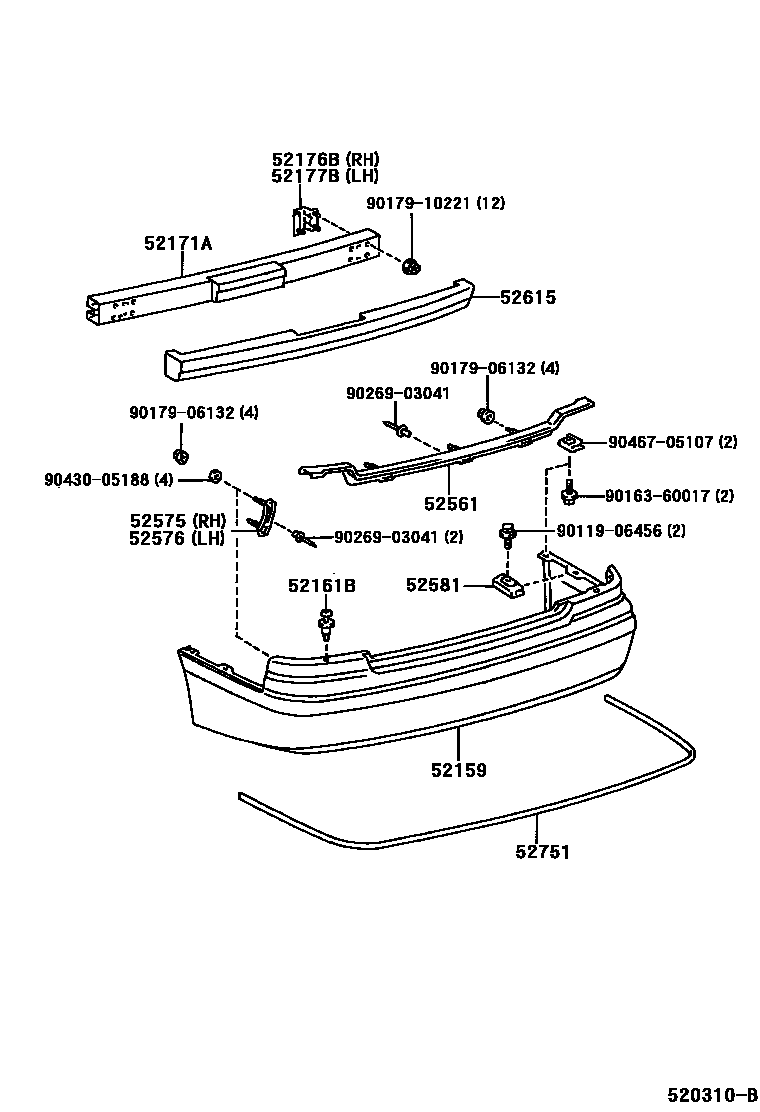

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52159COVER, REAR BUMPER

main52159-AC900iMCX10199508-199709

main52159-AC902iMCX10199709-199908

52161BPIECE, REAR BUMPER

main52161-02020iMCX10199709

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-AC020iMCX10199709

52176BREINFORCEMENT, REAR BUMPER ARM MOUNTING, RH

main52176-AC010iMCX10199709

52177BREINFORCEMENT, REAR BUMPER ARM MOUNTING, LH

main52177-AC010iMCX10199709

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-AC010iMCX10199508-199709

main52561-AC020iMCX10199709

52575RETAINER, REAR BUMPER SIDE, RH

main52575-AC010iMCX10199508

52576RETAINER, REAR BUMPER SIDE, LH

main52575-AC010iMCX10199508

52581PROTECTOR, REAR BUMPER, RH

main52581-AC010iMCX10199508

52615ABSORBER, REAR BUMPER ENERGY

main52615-AC010iMCX10199508-199709

main52615-AC020iMCX10199709

52751MOULDING, REAR BUMPER

main52751-AC010iMCX10199709

9011906456

main90119-06456

9016360017

main90163-60017

9017906132

main90179-06132

9017910221

main90179-10221

9026903041

main90269-03041

9043005188

main90430-05188

9046705107

main90467-05107

18 parts on this diagram · 2 diagrams in section
