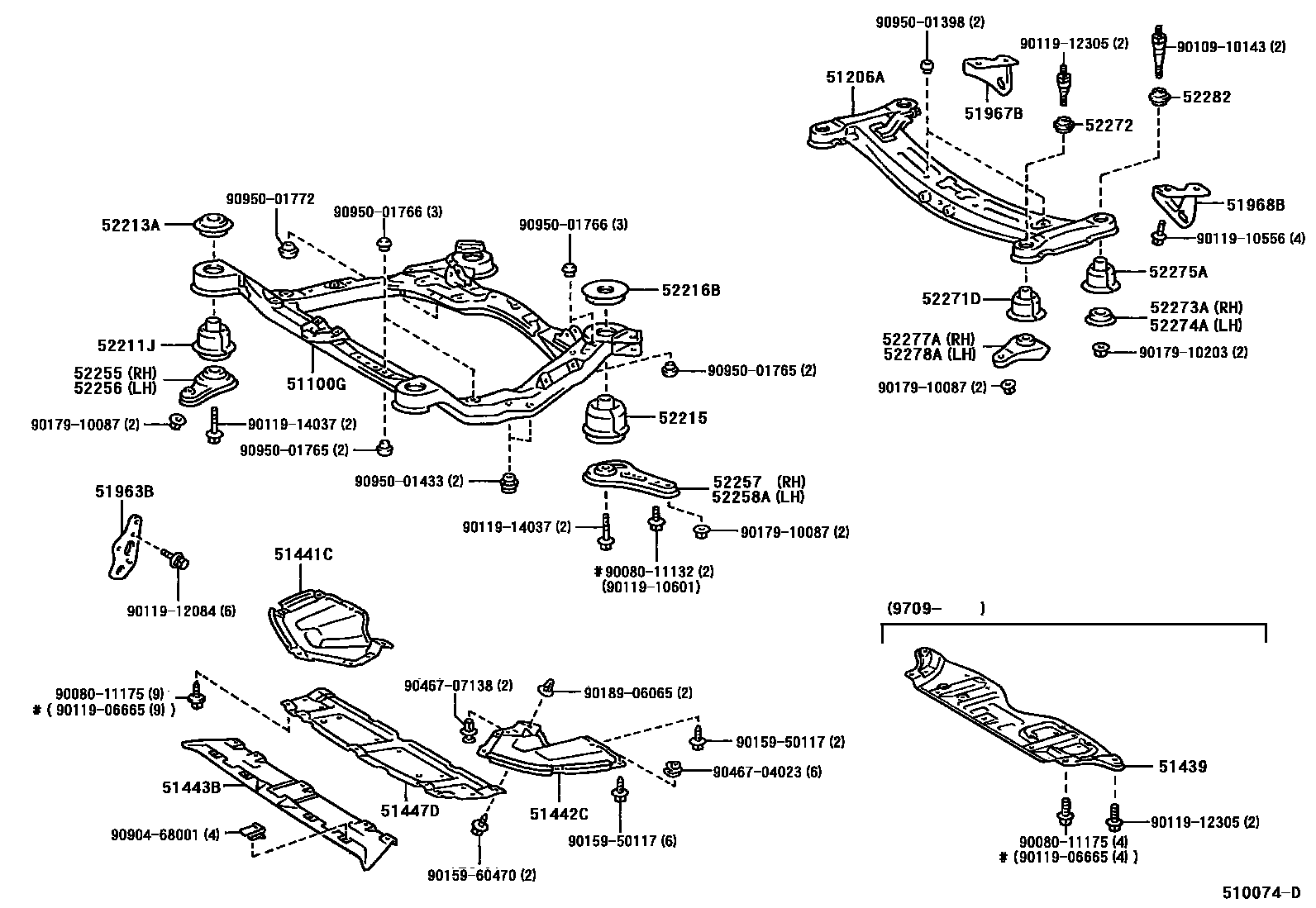

SUSPENSION CROSSMEMBER & UNDER COVER

51100GFRAME ASSY, FRONT

main51100-06010iMCX10199508-199708

main51100-06020iMCX10199708-199906

sub51100-07010

main51100-07020iMCX10199906-199908

sub51100-07010

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-06011iMCX10199508-199608

main51206-06040iMCX10199608-199708

main51206-06041iMCX10199708-199902

main51206-06042×2iMCX10199902

sub51206-33040

51439PLATE, ENGINE REAR SIDE SHUTTER

main51439-33020iMCX10199709

51441CCOVER, ENGINE UNDER, RH

main51441-AC010iMCX10199508

51442CCOVER, ENGINE UNDER, LH

main51442-AC010iMCX10199508

51443BCOVER, ENGINE UNDER, NO.3

main51443-06010iMCX10199508

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-06010iMCX10199508-199709

51963BHOOK, TRANSPORT, FRONT RH

main51963-AC010×2iMCX10199508-199709

51967BHOOK, TRANSPORT, REAR RH

main51967-AA010iMCX10199709

main51967-AC010iMCX10199508-199709

51968BHOOK, TRANSPORT, REAR LH

main51968-06010iMCX10199709

main51968-06020iMCX10199508-199709

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33030×2iMCX10199508

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33030×2iMCX10199508

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33030×2iMCX10199508

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06010×2iMCX10199508

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-33010iMCX10199508-199709

main52255-33020iMCX10199709

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-33010iMCX10199508-199709

main52256-33020iMCX10199709

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33010iMCX10199605

main52257-33010iMCX10199508-199605

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33010iMCX10199605

main52258-33010iMCX10199508-199605

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-33010×2iMCX10199508

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-33010×2iMCX10199508

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-32010iMCX10199508

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-32010iMCX10199508

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-33010×2iMCX10199508

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52203-33010iMCX10199508

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52204-33010iMCX10199508

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-33010×2iMCX10199508

9008011132

main90080-11132

9008011175

main90080-11175

9010910143

main90109-10143

9011906665

main90119-06665

9011910556

main90119-10556

9011910601

main90119-10601

9011912084

main90119-12084

9011912305

main90119-12305

9011914037

main90119-14037

9015950117

main90159-50117

9015960470

main90159-60470

9017910087

main90179-10087

9017910203

main90179-10203

9018906065

main90189-06065

9046704023

main90467-04023

9046707138

main90467-07138

9090468001

main90904-68001

9095001398

main90950-01398

9095001433

main90950-01433

9095001765

main90950-01765

9095001766

main90950-01766

9095001772

main90950-01772

48 parts on this diagram · 1 diagram in section
