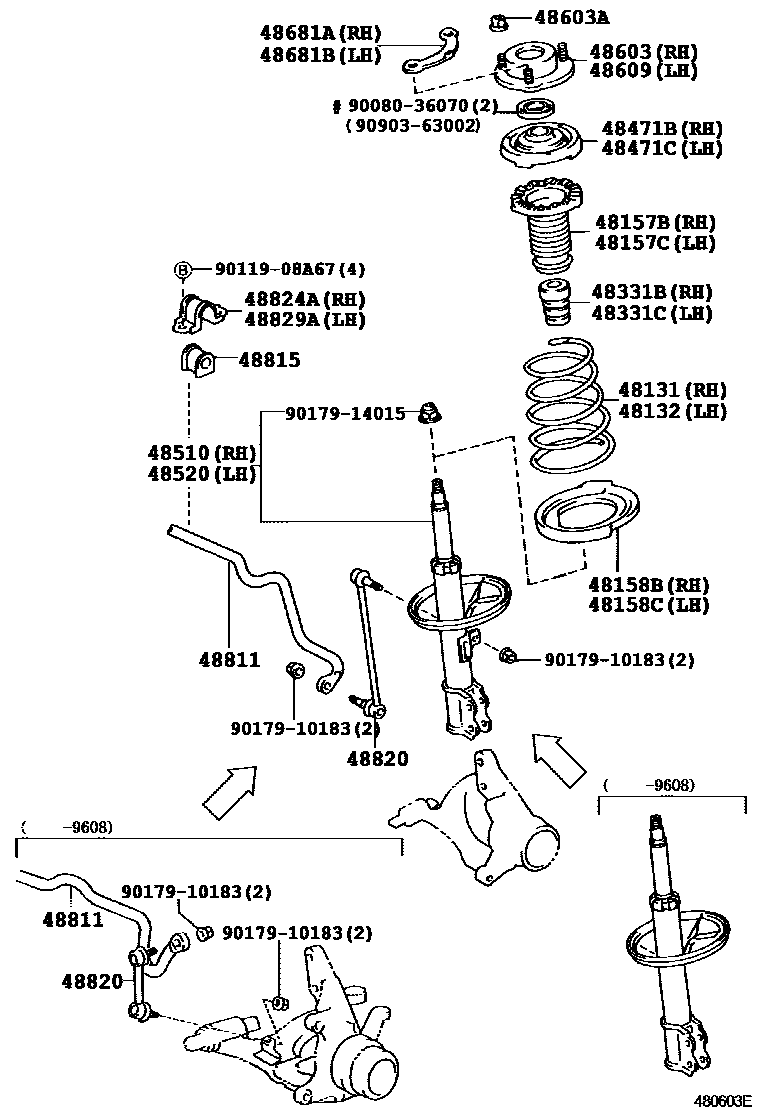

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
(L)
(J)
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
(L)
(J)
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48681AGASKET, FRONT SUSPENSION SUPPORT, RH
48681BGASKET, FRONT SUSPENSION SUPPORT, LH
48811BAR, STABILIZER, FRONT
PINK PAINTED
48820LINK ASSY, FRONT STABILIZER
LH
RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
sub48824-33020
48829ABRACKET, FRONT STABILIZER, NO.1 LH
sub48824-33020
9008036070
main90080-36070
9011908A67
main90119-08A67
9017910183
main90179-10183
9017914015
main90179-14015
9090363002
main90903-63002
27 parts on this diagram · 1 diagram in section
