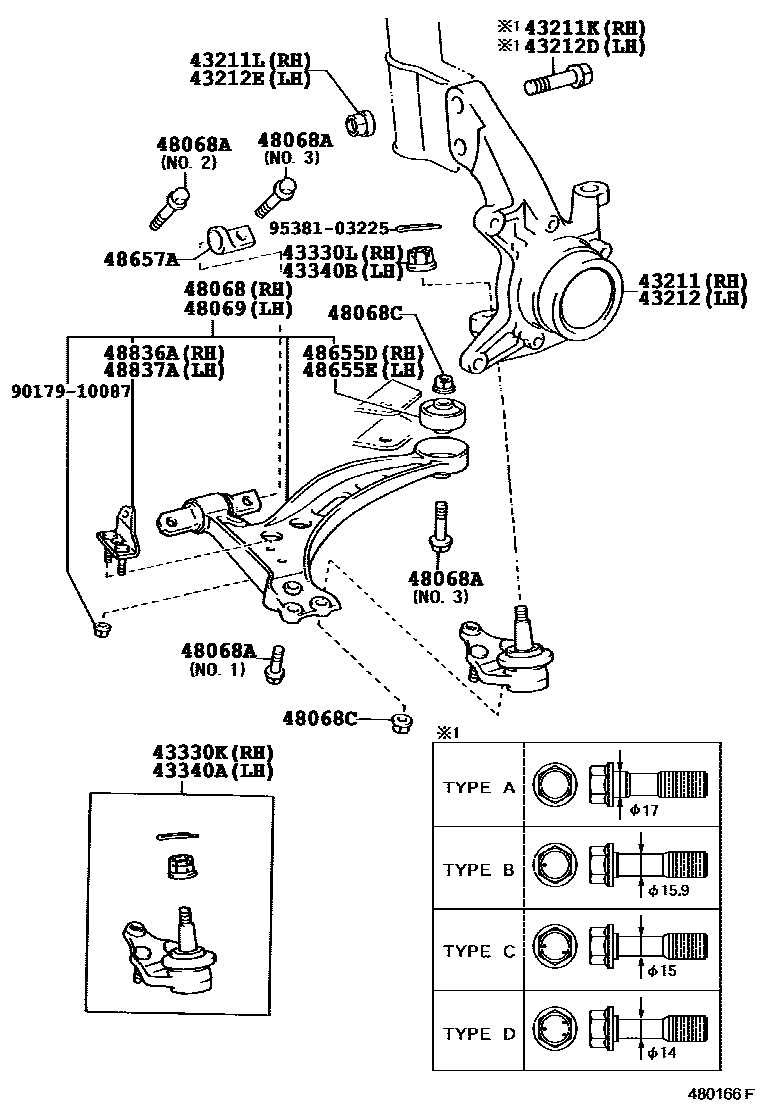

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
(L)
W(ABS)
(J)
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=17,TYPE A:REFER TO ILLUSTRATION,SET BOLT,REFER R/M
OD=15.9,TYPE B:REFER TO ILLUSTRATION,*370
OD=15,TYPE C:REFER TO ILLUSTRATION,*370
OD=14,TYPE D:REFER TO ILLUSTRATION,*370
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
(L)
W(ABS)
(J)
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=17,TYPE A:REFER TO ILLUSTRATION,SET BOLT,REFER R/M
OD=15.9,TYPE B:REFER TO ILLUSTRATION,*370
OD=15,TYPE C:REFER TO ILLUSTRATION,*370
OD=14,TYPE D:REFER TO ILLUSTRATION,*370
43212ENUT (FOR STEERING KNUCKLE LH)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
(L)
(L)
(J)
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
NO.1,(L)
NO.1
NO.1
NO.2
NO.3
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
BALL JOINT SIDE
BALL JOINT SIDE
BODY SIDE
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
(L)
(L)
(J)
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
48836ABRACKET, FRONT STABILIZER END, RH
48837ABRACKET, FRONT STABILIZER END, LH
9017910087
main90179-10087
9538103225
main95381-03225
21 parts on this diagram · 1 diagram in section
