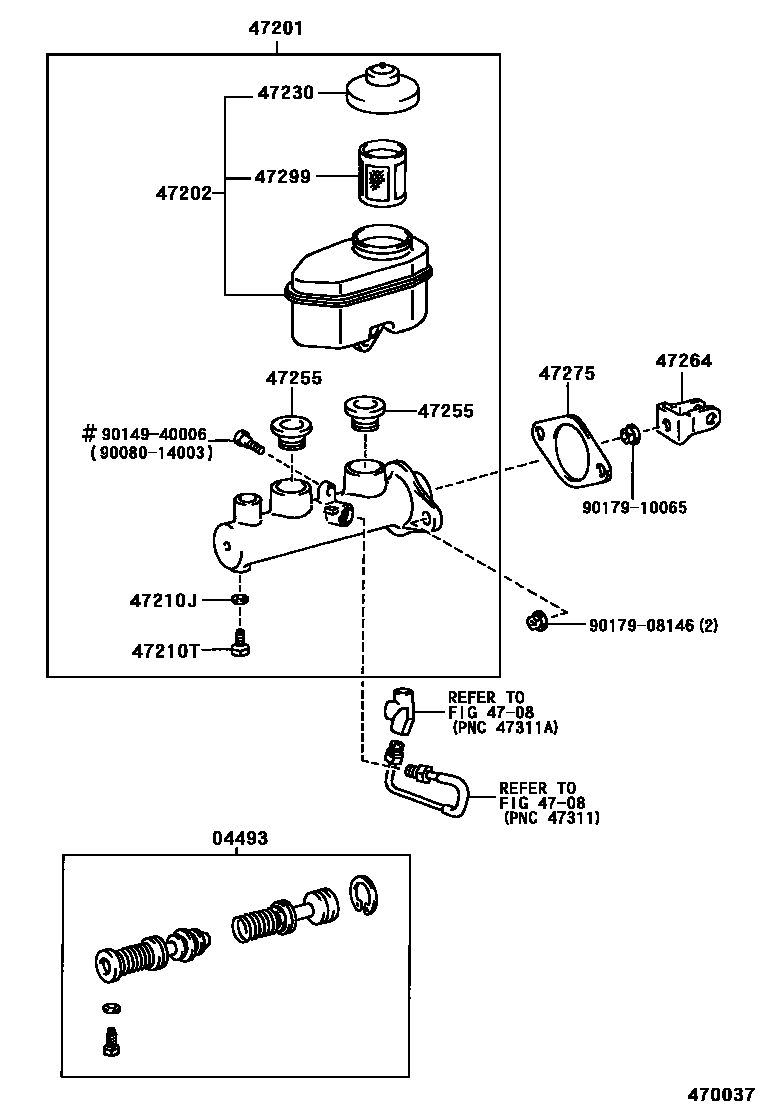

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-07010iMCX10199510

main04493-33010iMCX10199508-199510

sub04493-33050

main04493-33020iMCX10199508-199510

W(ABS)

sub04493-33060

main04493-33060iMCX10199510

W(ABS)

sub04493-33160

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-07010iMCX10199508

main47201-07020iMCX10199508

W(ABS)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-06011iMCX10199508

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iMCX10199508

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iMCX10199508

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iMCX10199508

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-03010iMCX10199508

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-33010iMCX10199508

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iMCX10199508

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iMCX10199508

9008014003

main90080-14003

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

15 parts on this diagram · 1 diagram in section
