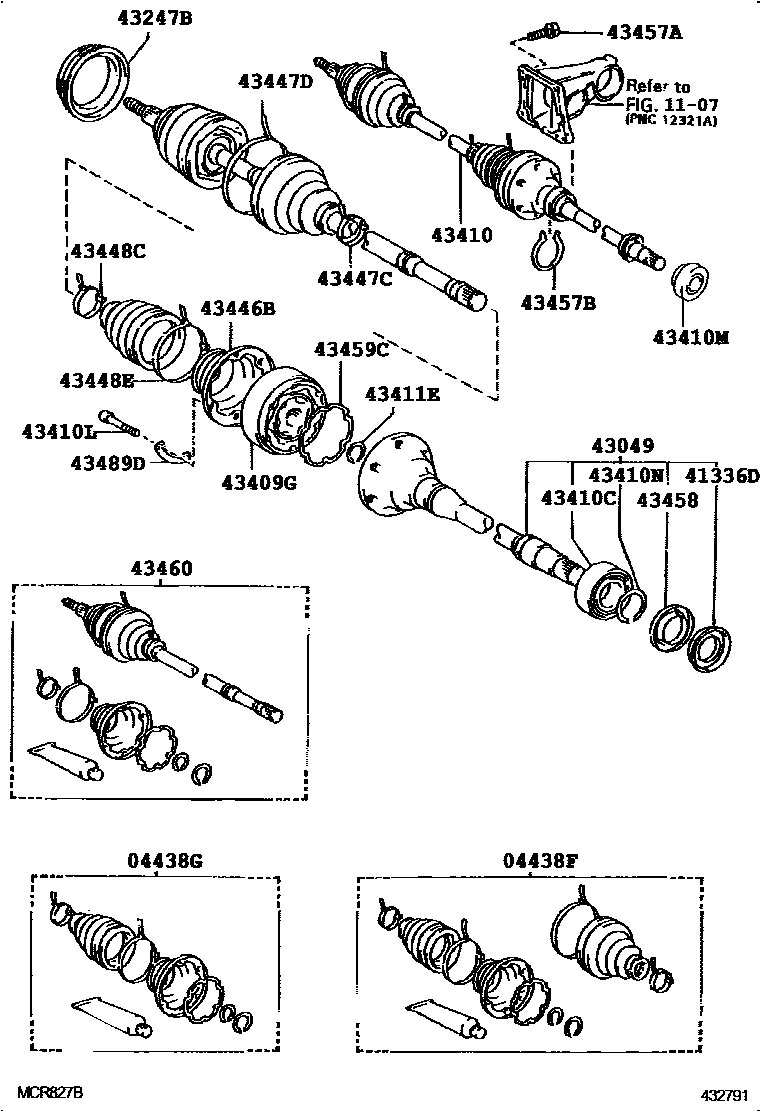

FRONT DRIVE SHAFT
1107
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43049SHAFT SUB-ASSY, FRONT DRIVE FLANGE
43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
W(ABS)
43409GJOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, RH
43410SHAFT ASSY, FRONT DRIVE, RH
sub43410-06170
TYPE B:REFER TO ILLUSTRATION,W(ABS)
W(ABS)
TYPE B:REFER TO ILLUSTRATION
43410CBEARING (FOR FRONT DRIVE SHAFT)
sub90363-41002
43410LBOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH)
43410MOIL SEAL, FRONT DRIVE SHAFT, RH
sub90311-40028
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43446BCOVER, FRONT AXLE INBOARD JOINT, RH
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
*10-1.25PX19.8-8.3
43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
43458COVER, FRONT DRIVE SHAFT DUST
43459CGASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION, W(ABS)
W(ABS)
TYPE B:REFER TO ILLUSTRATION,W(ABS)
TYPE B:REFER TO ILLUSTRATION
43489DWASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH
24 parts on this diagram · 4 diagrams in section
