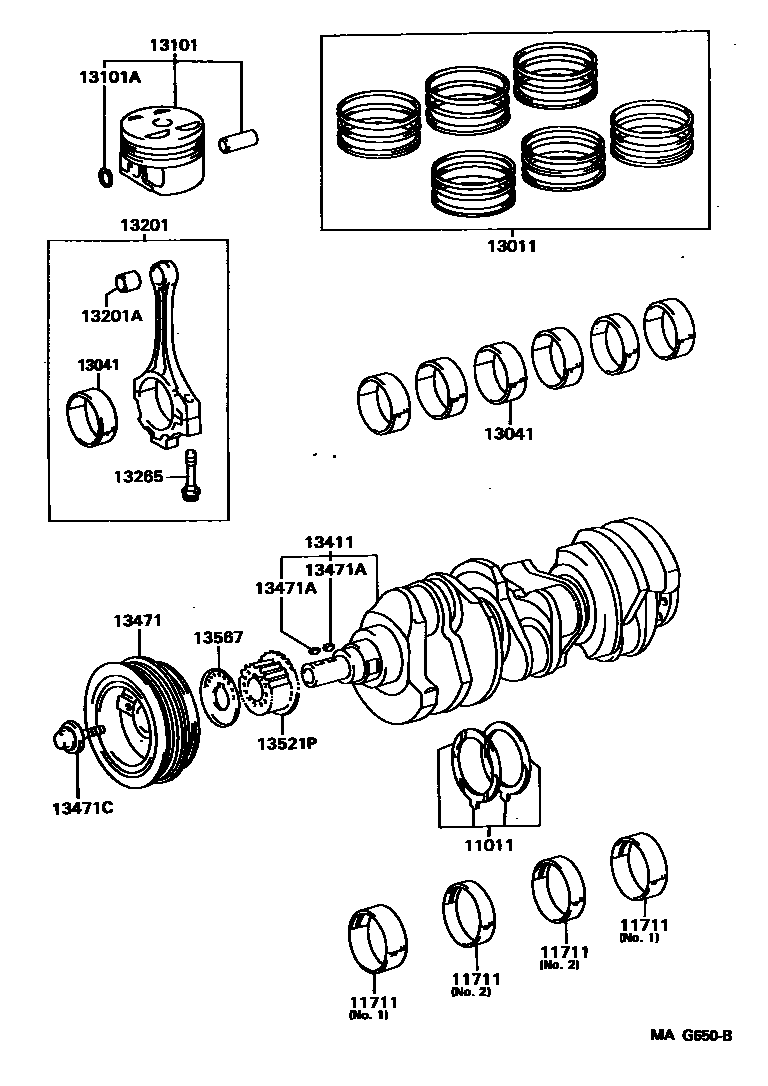

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,(L)
STD,(J)
11711BEARING, CRANKSHAFT
MARK 1,NO.2,(J)
MARK 2,NO.2,(J)
MARK 3,NO.2,(J)
MARK 4,NO.2,(J)
MARK 5,NO.2,(J)
MARK 1,NO.1,(J)
MARK 2,NO.1,(J)
MARK 3,NO.1,(J)
MARK 4,NO.1,(J)
MARK 5,NO.1,(J)
MARK 6,NO.1,(J)
MARK 7,NO.1,(J)
13011RING SET, PISTON
STD
13041BEARING, CONNECTING ROD
MARK 1,(L)
MARK 2,(L)
MARK 3,(L)
MARK 4,(L)
13101PISTON SUB-ASSY, W/PIN
STD,RH,(L)
STD,RH,(L)
STD,RH,(J)
STD,RH,(J)
STD,LH,(L)
STD,LH,(L)
STD,LH,(J)
STD,LH,(J)
13101ARING, HOLE SNAP(FOR PISTON PIN)
sub90520-22025
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13411CRANKSHAFT
(J)
(J)
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521PPULLEY, CRANKSHAFT TIMING
sub13521-20020
13567GUIDE, TIMING BELT, NO.2
