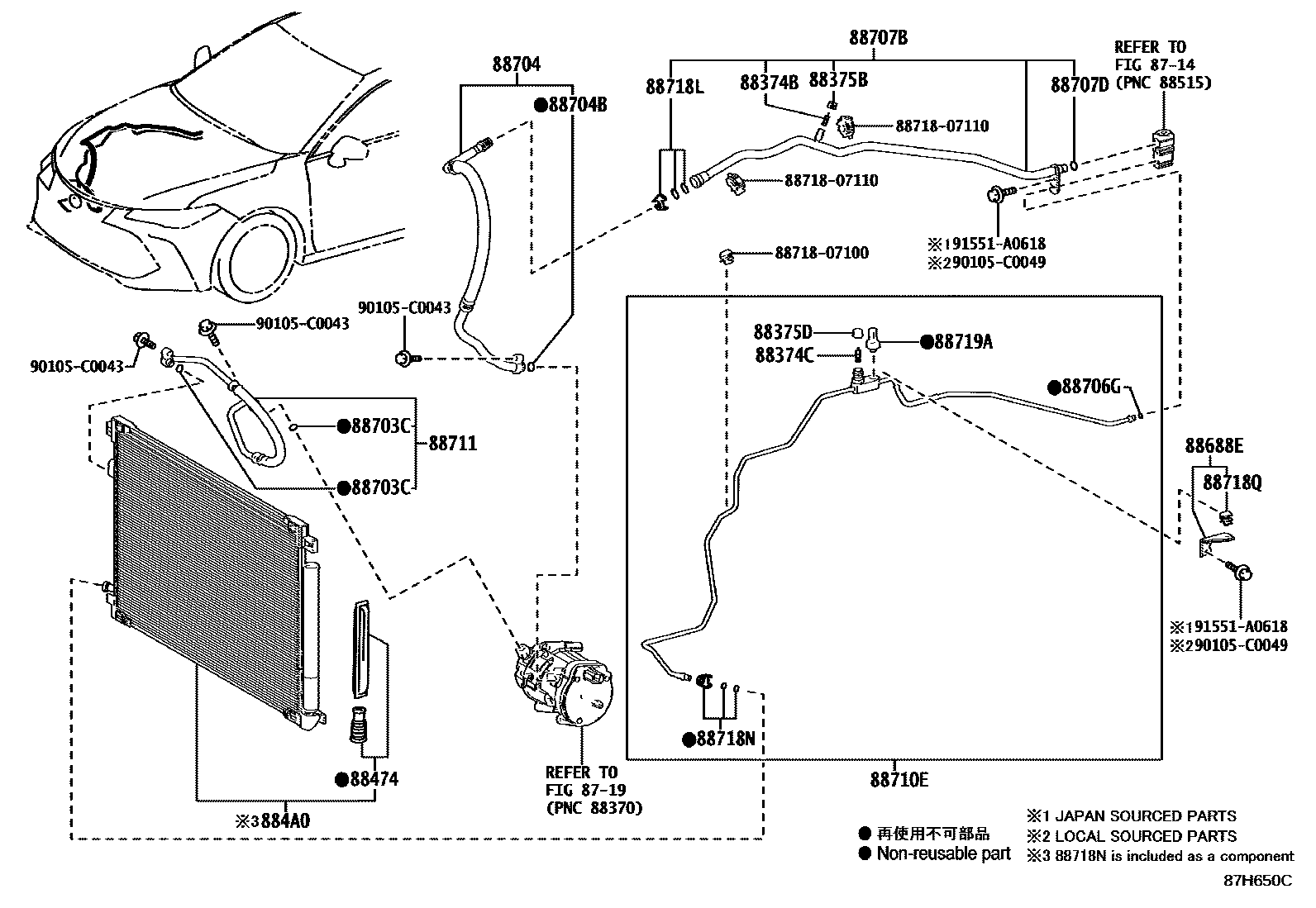

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88474DRYER, COOLER
884A0CONDENSER ASSY, COOLER
88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88706GRING, O(FOR LIQUID TUBE)
ID=6.7,OD=10.3
88707BTUBE SUB-ASSY, SUCTION, B
88707DRING, O(FOR SUCTION TUBE)
ID=13.4,OD=18.2
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88718LCLAMP, PIPING
88718NCLAMP, PIPING
88718QCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
8871807100PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-07100
8871807110PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-07110
90105C0043
main90105-C0043
90105C0049
main90105-C0049
91551A0618
main91551-A0618
26 parts on this diagram · 2 diagrams in section
