HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

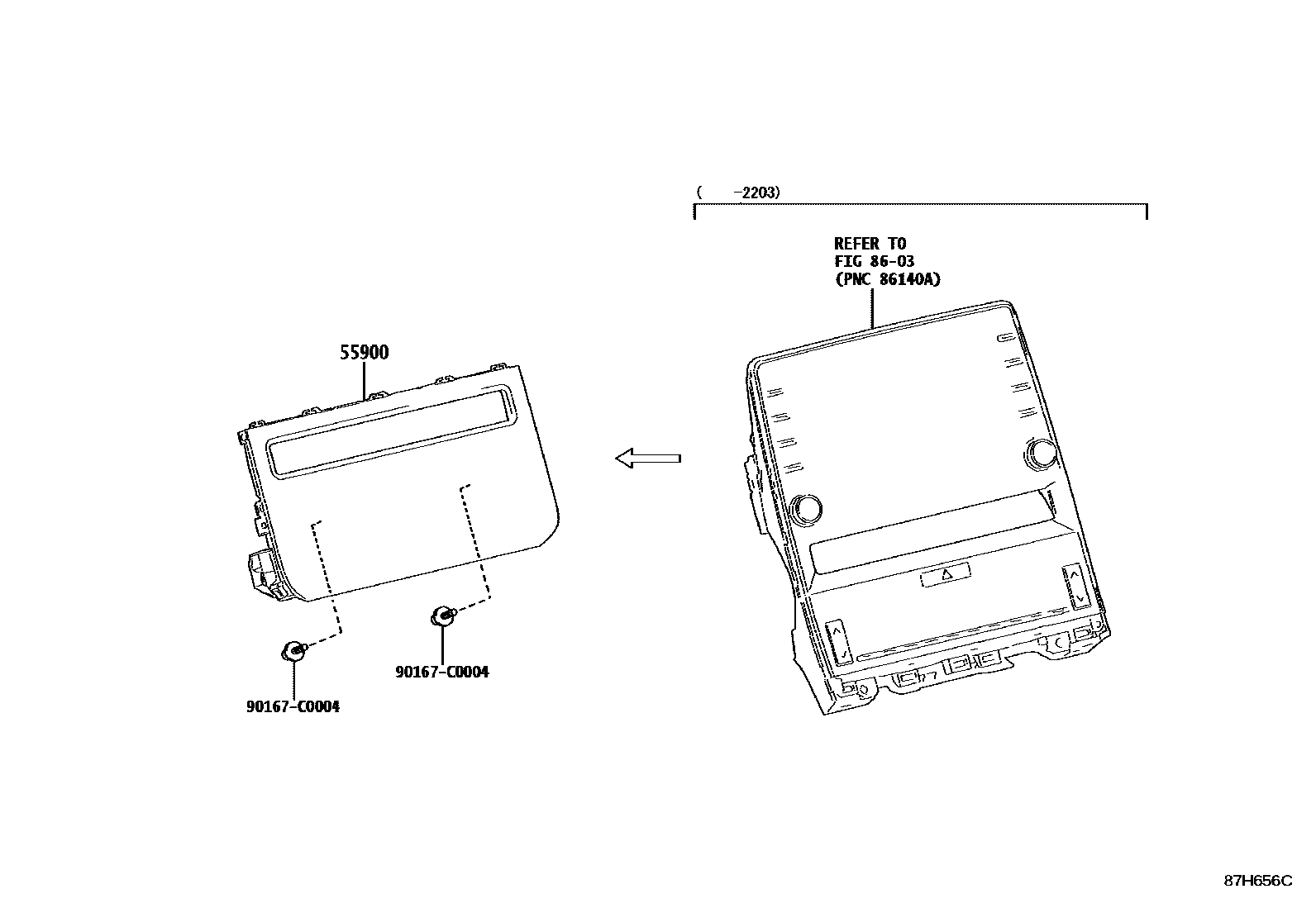

55900CONTROL ASSY, AIR CONDITIONER

main55900-07231iMXXA50..B,E202203-202407

main55900-07241iMXXA50..G202203-202303

main55900-07251iAXXA50,AXXH50..G202203-202303

main55900-07261iAXXA50,AXXH50..G,Q202203-202303

main55900-YK010iMXXA50,MXXH50..B,E202407

main55900-YK020iAXXH52,MXXH50..G,Q202407

8603

90167C0004

main90167-C0004

3 parts on this diagram · 3 diagrams in section
