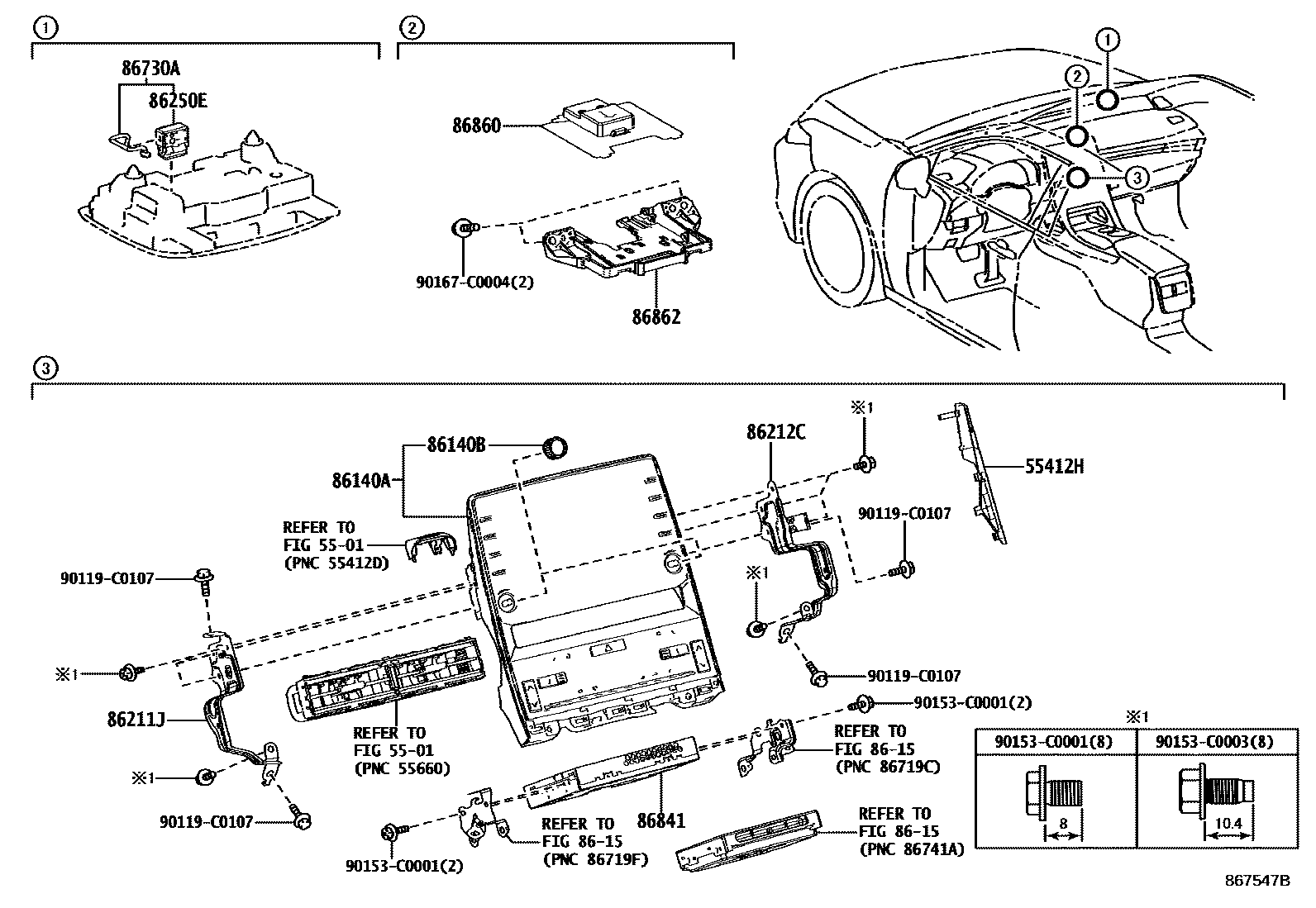

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

5501

55412HPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-07060iAXXH50201903-202203

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-07120iAXXH50,MXXA50..B202203-202207

DESAY

sub86100-07121

main86100-07120iAXXA50..E202203-202207

DESAY,B GRADE PACKAGE(WITH BACK MONITOR)

sub86100-07121

main86100-07121iAXXH50,MXXA50..B202208-202211

DESAY

sub86100-07122

main86100-07121iAXXA50..E202208-202211

DESAY,B GRADE PACKAGE(WITH BACK MONITOR)

sub86100-07122

main86100-07122iAXXA50..E202211-202303

DESAY,B GRADE PACKAGE(WITH BACK MONITOR)

sub86100-07124

main86100-07122iAXXA50,AXXH50,MXXA50..B202211-202307

DESAY

sub86100-07124

main86100-07123iAXXA50,AXXH50,MXXA50..B202307-202309

DESAY

sub86100-07124

main86100-07124iAXXA50,AXXH50..B202310-202407

DESAY

main86100-07160iAXXA50,AXXH50,MXXA50..G202203-202207

DESAY

sub86100-07161

main86100-07161iAXXA50,AXXH50,MXXA50..G202208-202211

DESAY

sub86100-07162

main86100-07162iAXXA50,AXXH50,MXXA50..G202211-202307

DESAY

sub86100-07164

main86100-07163iAXXA50,AXXH50,MXXA50..G202307-202309

DESAY

sub86100-07164

main86100-07164iAXXA50,AXXH50,MXXA50..G202310

DESAY

main86100-07170iAXXH50..Q202203-202207

DESAY

sub86100-07171

main86100-07171iAXXH50..Q202208-202210

DESAY

sub86100-07172

main86100-07172iAXXH50..Q202210-202307

DESAY

sub86100-07174

main86100-07173iAXXH50..Q202307-202309

DESAY

sub86100-07174

main86100-07174iAXXH50..Q202310

DESAY

main86100-YK010iMXXA50,MXXH50..B202407

DESAY

main86100-YK020iAXXH52,MXXH50..G,Q202407

DESAY

main86140-07080iAXXA50..E201903-201909

PIONEER

sub86140-07081

main86140-07081iMXXA50;AXXA50..E201910-202203

PIONEER

main86140-07260iAXXH50..Q201903-201909

PIONEER

sub86140-07261

main86140-07261iAXXH50..Q201910-202203

PIONEER

main86140-07270iAXXH50..B,E201903-201909

PIONEER

sub86140-07271

main86140-07271iAXXH50..B,E201910-202203

PIONEER

main86140-07280iAXXH50..G201903-201909

PIONEER

sub86140-07281

main86140-07281iAXXH50..G201910-202203

PIONEER

main86140-07290iAXXA50..G201903-201909

PIONEER

sub86140-07291

main86140-07291iAXXA50..G201910-202203

PIONEER

main86140-07300iAXXA50,MXXA50..E202203-202305

DESAY

sub86140-07301

main86140-07301iAXXH50..E202306-202407

DESAY

main86140-YK010iMXXA50,MXXH50..E202407

HANGSHENG

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90011-25309iAXXA50,MXXA50201903-202203

8615

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-07060iAXXH50..E201903-202203

main86211-07070iMXXA50..B,E202203-202407

main86211-YK010iMXXA50..B,E;AXXH52,MXXH50202407

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-07070iAXXA50,MXXA50201903-202203

main86212-07080iAXXA50,AXXH50,MXXA50202203-202407

main86212-YK010iMXXA50..B,E;AXXH52,MXXH50202407

86250EMICROPHONE ASSY, AMPLIFIER

main86250-06020iMXXA50..B,E202304-202407

main86250-52030iAXXH50..E201903-202203

86730AMICROPHONE ASSY, TELEPHONE

main86730-06060iAXXA50,MXXA50201903-202407

main86730-0A010iMXXA50,MXXH50..E202407

86841COMPUTER, NAVIGATION

main86840-07070iAXXH50..Q201903-201904

sub86840-07071

main86840-07071iAXXH50..Q201905-201910

sub86840-07081

main86840-07081iAXXH50..Q201910-202004

sub86840-07082

main86840-07082iAXXH50..Q202005-202009

sub86840-07083

main86840-07083iAXXH50..Q202010-202104

sub86840-07084

main86840-07084iAXXH50..Q202105-202109

sub86840-07085

main86840-07085iAXXH50..Q202110-202203

86860ANTENNA ASSY, NAVIGATION

main86860-07030iAXXH50..E201903-202203

main86880-02100iMXXA50..B,E;AXXH52,MXXH50202407

main86880-0R020iAXXA50,AXXH50,MXXA50202203-202407

86862BRACKET, NAVIGATION ANTENNA

main86862-0E030iMXXA50..B,E;AXXH52,MXXH50202407

main86862-42010iAXXA50,AXXH50,MXXA50202203-202407

main86862-58020iAXXH50201903-202203

90119C0107

main90119-C0107

90153C0001

main90153-C0001

90153C0003

main90153-C0003

90167C0004

main90167-C0004

16 parts on this diagram · 2 diagrams in section
