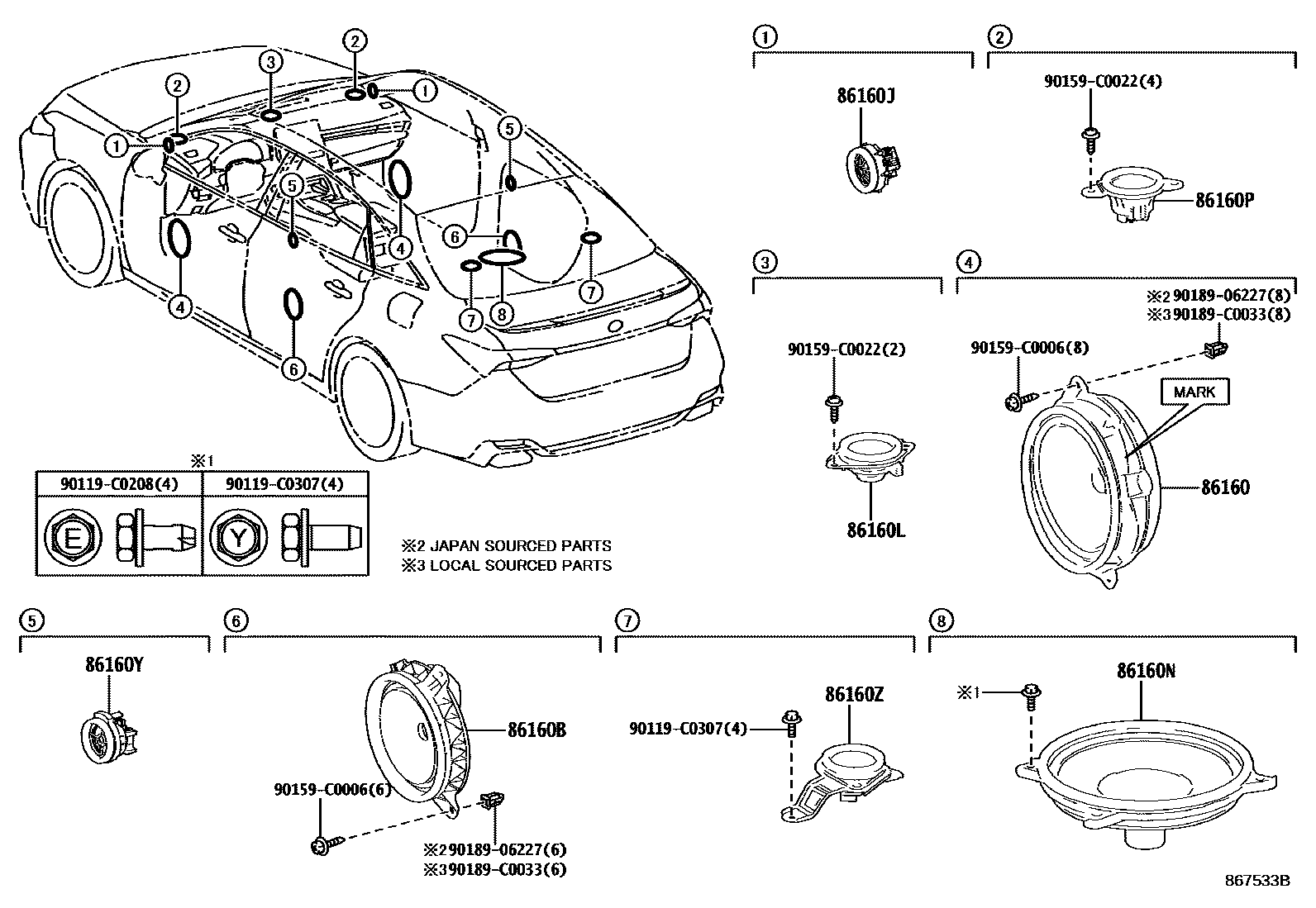

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-06880iAXXH50..Q201903-202303

main86160-07150iAXXH50..B,G;AXXA50,MXXA50201903-202407

86160BSPEAKER ASSY, REAR

main86160-02C60iAXXH50..E201903-202407

main86160-06870iAXXH50..Q201903-202107

main86160-06870iAXXH50..Q202107-202203

MARK J2:REFER ILL.

main86160-0E350iAXXH50..Q202203-202303

MARK J5:REFER ILL.

86160JSPEAKER ASSY, FRONT NO.3

main86150-07120iAXXH50..Q201903-202303

86160LSPEAKER ASSY, FRONT NO.4

main86160-06A50iAXXH50..Q201903-202303

86160NSPEAKER ASSY, STEREO COMPONENT, REAR

main86150-06070iAXXH50..Q201903-202303

86160PSPEAKER ASSY, FRONT NO.2

main86160-06A50iAXXH50..Q201903-202303

main86160-07140iMXXA50..B,E201903-202407

86160YSPEAKER ASSY, REAR NO.2

main86150-07120iAXXH50..Q201903-202303

main86160-0D300iAXXH50..E201903-202407

86160ZSPEAKER ASSY, REAR NO.3

main86150-07130iAXXH50..Q201903-202303

LH

main86150-07150iAXXH50..Q201903-202303

RH

90119C0208

main90119-C0208

90119C0307

main90119-C0307

90159C0006

main90159-C0006

90159C0022

main90159-C0022

9018906227

main90189-06227

90189C0033

main90189-C0033

14 parts on this diagram · 1 diagram in section
