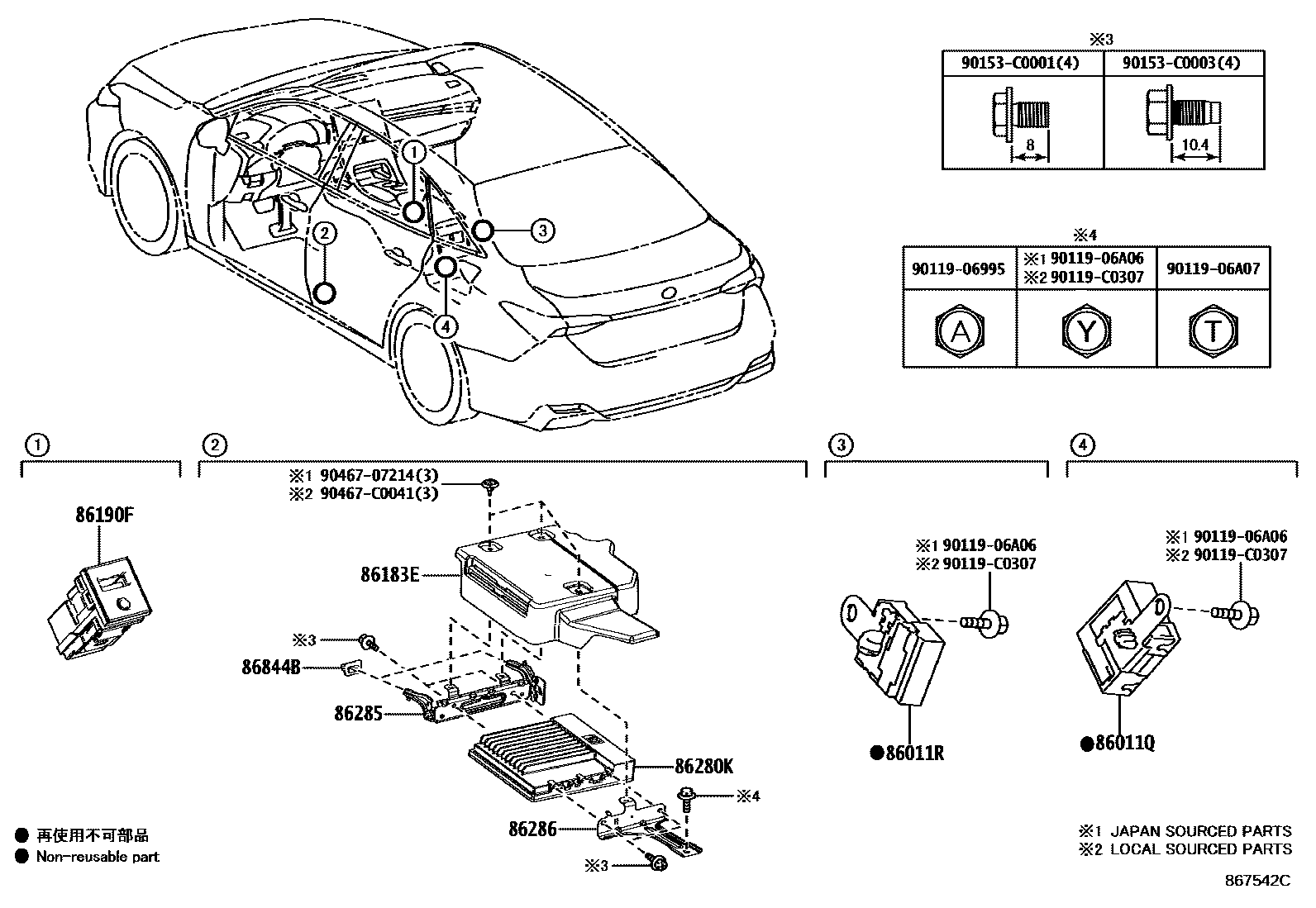

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011QCONDENSER, RADIO SETTING

main90980-04204iAXXH50..E201903-202407

main90980-04213iMXXA50..B,E;AXXH52,MXXH50202407

86011RCONDENSER, RADIO SETTING

main90980-04189iAXXA50,MXXA50201903-202407

main90980-04204iMXXA50..B,E;AXXH52,MXXH50202407

86183ECOVER, AUDIO AMPLIFIER

main86183-07040iAXXH50..Q201903-202303

86190FADAPTER ASSY, STEREO JACK

main86190-02120iMXXA50..B,E;AXXH52,MXXH50202407

main86190-06070iAXXH50..E201903-202203

main86190-0A010iAXXA50..E202203-202303

B GRADE PACKAGE(WITH BACK MONITOR)

main86190-0A010iMXXA50..B202304-202407

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-07100iAXXH50..Q201903-202203

main86280-07120iAXXH50..Q202203-202303

86285BRACKET, AMPLIFIER, NO.1

main86285-07040iAXXH50..Q201903-202303

86286BRACKET, AMPLIFIER, NO.2

main86286-07040iAXXH50..Q201903-202303

86844BRETAINER, AUDIO AMPLIFIER COVER

main55217-32010iAXXH50..Q201903-202303

9011906995

main90119-06995

9011906A06

main90119-06A06

9011906A07

main90119-06A07

90119C0307

main90119-C0307

90153C0001

main90153-C0001

90153C0003

main90153-C0003

9046707214

main90467-07214

90467C0041

main90467-C0041

16 parts on this diagram · 1 diagram in section
