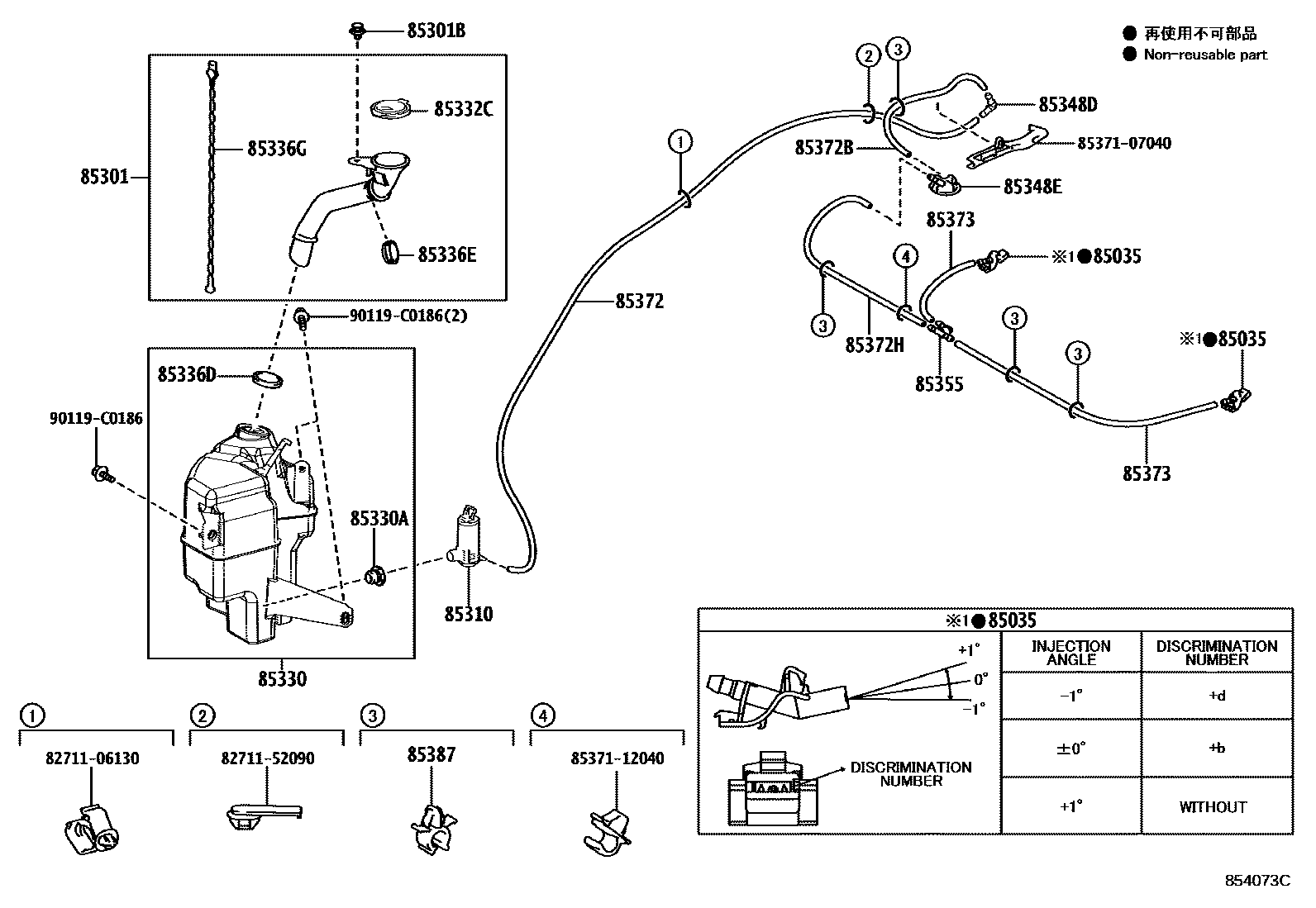

WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-0E090iMXXA50..B,E202203-202407

ANGLE 0

main85381-0E100iMXXA50..B,E;AXXH52,MXXH50202203-202407

ANGLE +2

main85381-0E110iMXXA50..B,E;AXXH52,MXXH50202203-202407

ANGLE -2

main85381-30220iAXXA50,MXXA50;AXXH50..B,G,Q201903-202203

ANGLE 0

sub85381-0K070

main85381-30230iAXXA50,MXXA50201903-202203

ANGLE +1

sub85381-0K080

main85381-30240iAXXA50,MXXA50;AXXH50..B,G,Q201903-202203

ANGLE -1

85301INLET SUB-ASSY, WASHER

main85319-07040iAXXA50,MXXA50201903-202203

main85319-07050iAXXA50,AXXH50,MXXA50202203-202407

85301BCLIP, WASHER

main90467-C0043iAXXA50,MXXA50201903-202407

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02100iAXXA50,AXXH50,MXXA50202203-202407

main85330-33070iAXXA50,MXXA50201903-202203

85330JAR ASSY, WINDSHIELD WASHER

main85315-07040iAXXA50,MXXA50201903-202203

main85315-07050iAXXA50,AXXH50,MXXA50202203-202407

85330ABUSH, WINDSHIELD WASHER JAR

main90068-32006iAXXA50,MXXA50201903-202203

main90069-52046iAXXA50,AXXH50,MXXA50202203-202407

85332CCAP, FRONT WASHER TANK

main85316-02530iMXXA50..B,E;AXXH52,MXXH50202203-202407

main85316-07040iAXXA50,MXXA50;AXXH50..B,G,Q201903-202203

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iAXXA50,MXXA50201903-202203

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320iAXXH50..E201903-202203

85336GGAGE, WATER LEVEL

main85312-47020iAXXA50,MXXA50201903-202203

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0E220iAXXA50,AXXH50,MXXA50202203-202407

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85377-0D030iAXXH50..E201903-202203

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85373-33030iAXXH50201903-202203

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iAXXA50,MXXA50201903-202203

main85376-02750iAXXA50,AXXH50,MXXA50202203-202407

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33354iAXXA50,MXXA50201903-202203

L=1200

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33358iAXXA50,AXXH50,MXXA50201903-202203

L=340

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-33343iAXXA50,MXXA50201903-202203

L=425

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33129iAXXH50201903-202203

L=640,LH

main90068-33188iAXXH50..E201903-202203

L=260,RH

main90069-46282iAXXA50,AXXH50,MXXA50202203-202407

L=710

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main90469-07011iMXXA50..B,E;AXXH52,MXXH50202009-202407

(J)

main90469-07011iAXXA50,AXXH50,MXXA50201903-202009

main90469-C0014iMXXA50..B,E;AXXH52,MXXH50202009-202407

(L)

8271106130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-06130

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8537107040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-07040

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

90119C0186

main90119-C0186

24 parts on this diagram · 2 diagrams in section
