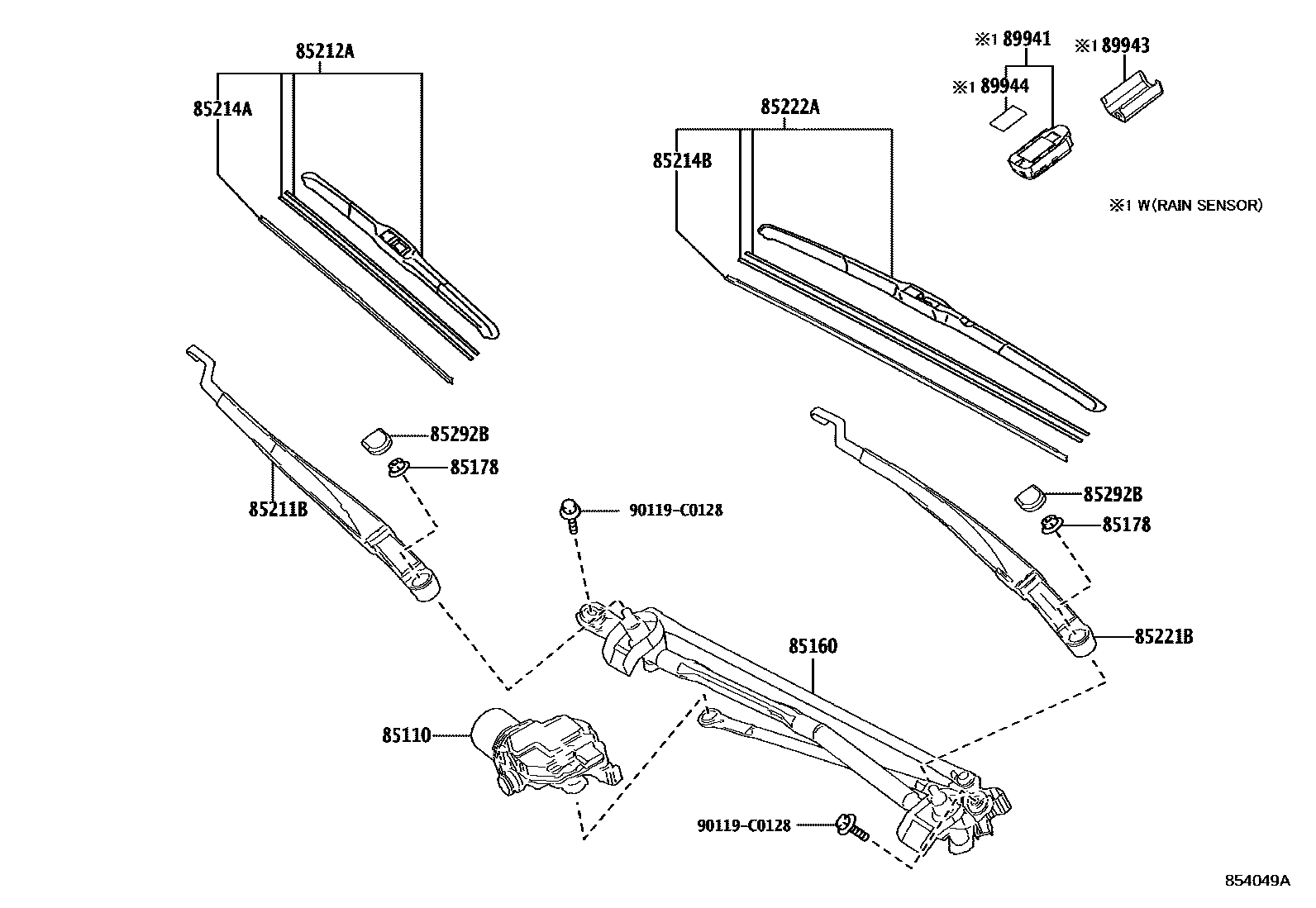

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-07070iAXXA50,AXXH50,MXXA50201903-202010

main85110-07071iAXXH50..E202106-202202

85160LINK ASSY, WINDSHIELD WIPER

main85150-07070iAXXA50,MXXA50201903-202106

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-C0012×2iAXXA50,MXXA50201903-202106

85211BARM, FRONT WIPER, RH

main85211-07070iAXXA50,MXXA50201903-202106

main85211-YK010iMXXA50..B,E;AXXH52,MXXH50202407

85212ABLADE, FR WIPER, RH

main85212-07080iAXXA50,MXXA50201903-202106

main85212-YK010iMXXA50..B,E;AXXH52,MXXH50202407

85214ARUBBER, WIPER, RH

main85214-06200iMXXA50..B,E;AXXH52,MXXH50202407

main85214-07080iMXXA50..B,E202304-202407

85214BRUBBER, WIPER, LH

main85214-06240iMXXA50..B,E;AXXH52,MXXH50202407

main85214-07090iAXXH50..E202106-202202

85221BARM, FRONT WIPER, LH

main85221-07080iAXXA50,MXXA50201903-202106

main85221-YK020iMXXA50..B,E;AXXH52,MXXH50202407

85222ABLADE, FR WIPER, LH

main85222-07080iMXXA50..B,E202304-202407

main85222-YK020iMXXA50..B,E;AXXH52,MXXH50202407

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D070×2iAXXA50,MXXA50201903-202106

89941SENSOR, RAIN

main89941-06020iAXXA50,AXXH50..G,Q202304

main89941-0R040iAXXH52..Q202407

main89941-33060iAXXH50..Q202203-202303

89943COVER, RAIN SENSOR

main89943-06010iAXXA50,AXXH50..G,Q202304

main89943-12040iAXXH52..Q202407

main89943-33060iAXXH50..Q202203-202303

89944TAPE, RAIN SENSOR

main89944-42020iAXXH50..Q202203-202303

90119C0128

main90119-C0128

14 parts on this diagram · 2 diagrams in section
