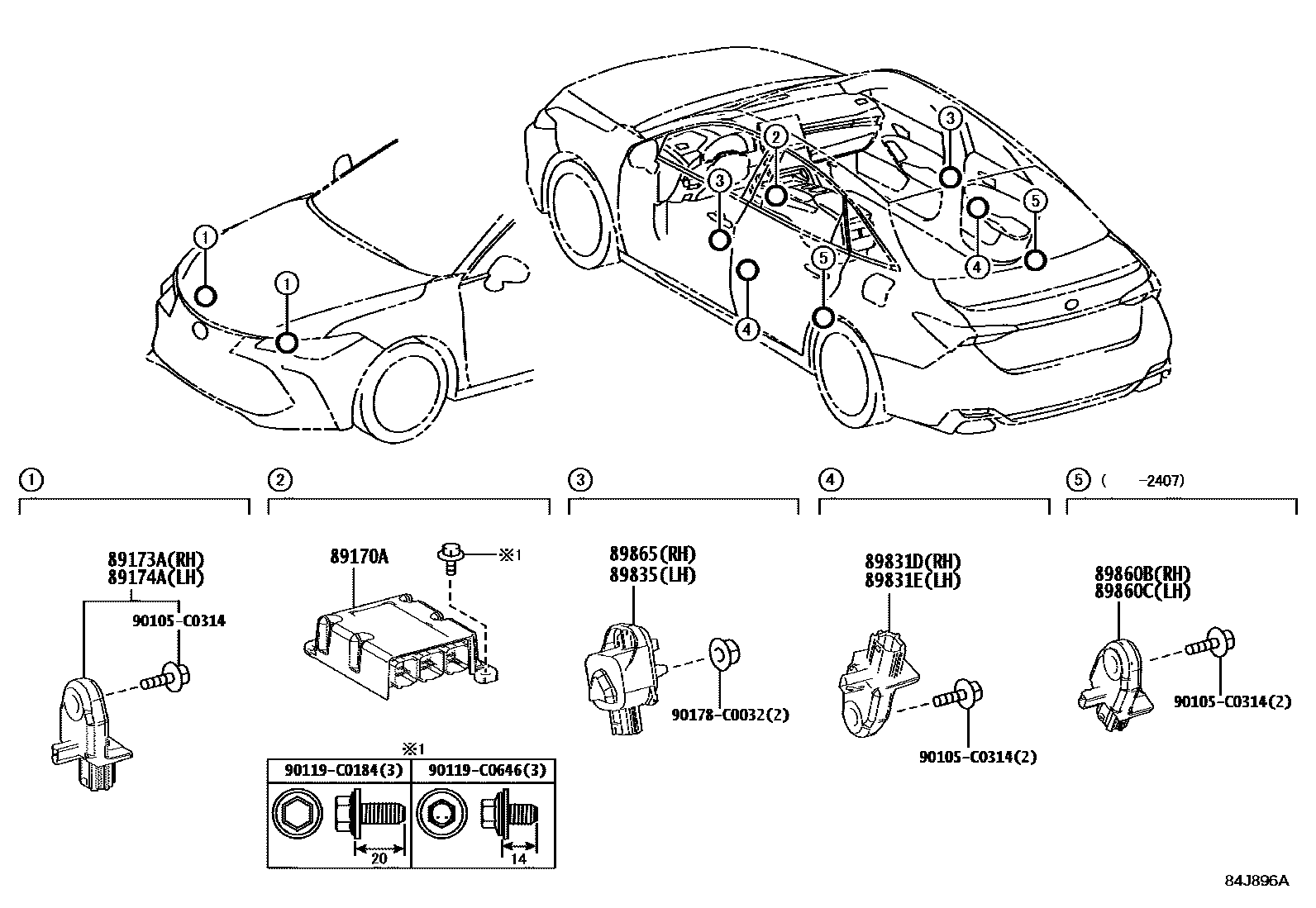

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-07410iAXXA50,MXXA50201903-202102

P/N LABEL=8917007410

sub89170-07530

main89170-07420iAXXH50201903-202102

P/N LABEL=8917007420

sub89170-07540

main89170-07450iMXXA50..B,E;AXXH52,MXXH50202407

main89170-07530iAXXA50,MXXA50202102-202104

P/N LABEL=8917007530

main89170-07530iAXXA50,MXXA50202106-202303

main89170-07531iMXXA50..B,E202304-202407

main89170-07540iAXXH50202102-202104

P/N LABEL=8917007540

main89170-07540iAXXH50..B,G,Q202107-202303

main89170-07541iAXXH50202304

main89170-07570iAXXA50,MXXA50202005-202106

P/N LABEL=8917007570

main89170-07580iAXXH50202005-202107

P/N LABEL=8917007580

main89170-07580iAXXH50202012-202101

89173ASENSOR, AIRBAG, FRONT RH

main89173-09887iAXXA50,MXXA50202012-202107

MARK=89173-06180

main89173-09888iMXXA50..B,E;AXXH52,MXXH50202407

main89173-09D20iMXXA50..B,E202106-202407

main89173-09D20iAXXA50,AXXH50,MXXA50201903-202104

MARK=89173-07060

main89173-49495iAXXA50,AXXH50,MXXA50¥8,200202005-202107

MARK=89173-47050

89174ASENSOR, AIRBAG, FRONT LH

main89173-09887iAXXA50,MXXA50202012-202107

MARK=89173-06180

main89173-09888iMXXA50..B,E;AXXH52,MXXH50202407

main89173-09D20iAXXA50,MXXA50;AXXH50..B,G,Q202106-202407

main89173-09D20iAXXA50,AXXH50,MXXA50201903-202104

MARK=89173-07060

main89173-49495iAXXA50,AXXH50,MXXA50¥8,200202005-202107

MARK=89173-47050

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-06160iAXXA50,MXXA50202012-202107

MARK 89831-06160

main89831-07110iAXXA50,AXXH50,MXXA50201903-202104

MARK 89831-07110

main89831-07110iAXXA50,MXXA50;AXXH50..B,G,Q202106-202407

main89831-0R170iMXXA50..B,E;AXXH52,MXXH50202407

main89831-47050iAXXH50¥8,200202005-202107

MARK 89831-47050

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-06160iAXXA50,AXXH50,MXXA50202012-202107

MARK 89831-06160

main89831-07110iAXXA50,AXXH50,MXXA50201903-202104

MARK 89831-07110

main89831-07110iAXXA50,MXXA50;AXXH50..B,G,Q202106-202407

main89831-0R170iMXXA50..B,E;AXXH52,MXXH50202407

main89831-47050iAXXH50¥8,200202005-202107

MARK 89831-47050

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-02060iMXXA50..B,E;AXXH52,MXXH50202407

main8983A-06020iAXXA50,AXXH50,MXXA50202012-202101

MARK 8983A-06020

main8983A-06021iAXXA50,AXXH50,MXXA50202012-202101

MARK 8983A-06021

main8983A-07020iAXXA50,AXXH50,MXXA50201903-202104

MARK 8983A-07020

sub8983A-07021

main8983A-07021iAXXA50,MXXA50;AXXH50..B,G,Q202106-202407

main8983A-33010iAXXA50,AXXH50,MXXA50¥9,100202005-202101

MARK 8983A-33010

sub8983A-33011¥8,200

main8983A-33011iAXXA50,AXXH50,MXXA50¥8,200202012-202107

MARK 8983A-33011

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-06150iAXXA50,MXXA50202012-202107

MARK 89831-06150

main89831-07100iAXXA50,AXXH50,MXXA50201903-202104

MARK 89831-07100

main89831-07100iAXXA50,MXXA50;AXXH50..B,G,Q202106-202407

main89831-28030iAXXA50,MXXA50¥8,200202005-202107

MARK 89831-28030

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-06150iAXXA50,AXXH50,MXXA50202012-202107

MARK 89831-06150

main89831-07100iMXXA50..G;AXXA50,AXXH50202106-202407

main89831-07100iAXXA50,AXXH50,MXXA50201903-202104

MARK 89831-07100

main89831-28030iAXXA50,AXXH50,MXXA50¥8,200202005-202107

MARK 89831-28030

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-02060iMXXA50..B,E;AXXH52,MXXH50202407

main8983A-06020iAXXA50,AXXH50,MXXA50202012-202101

MARK 8983A-06020

main8983A-06021iAXXA50,AXXH50,MXXA50202012-202101

MARK 8983A-06021

main8983A-07020iAXXA50,AXXH50,MXXA50201903-202104

MARK 8983A-07020

sub8983A-07021

main8983A-07021iAXXA50,MXXA50;AXXH50..B,G,Q202106-202407

main8983A-33010iAXXA50,AXXH50,MXXA50¥9,100202005-202101

MARK 8983A-33010

sub8983A-33011¥8,200

main8983A-33011iAXXA50,MXXA50¥8,200202012-202107

MARK 8983A-33011

90105C0314

main90105-C0314

90119C0184

main90119-C0184

90119C0646

main90119-C0646

90178C0032

main90178-C0032

13 parts on this diagram · 1 diagram in section
