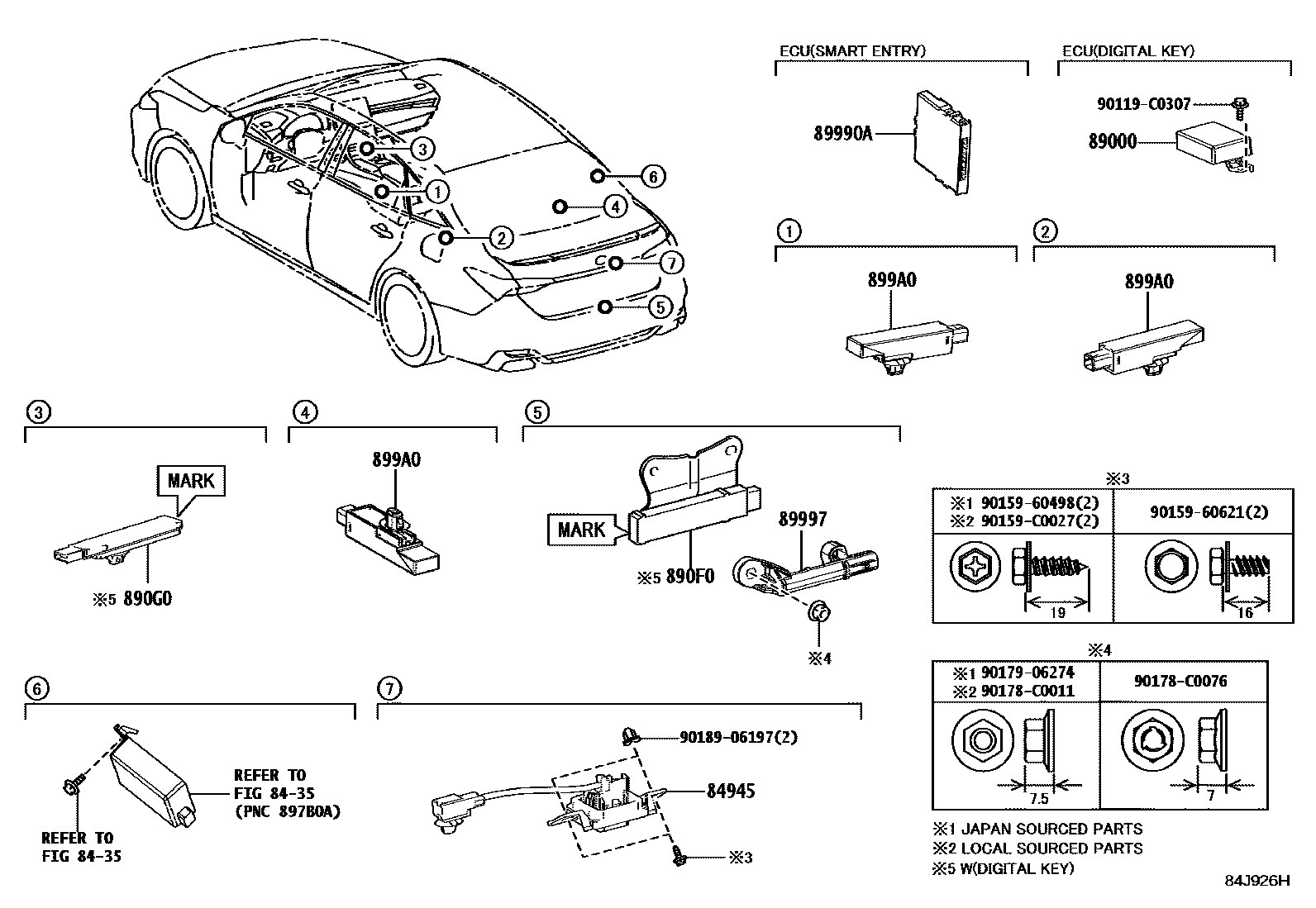

WIRELESS DOOR LOCK

8435

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84945-07020iAXXA50,MXXA50201903-202407

main84945-07040iMXXA50..B,E;AXXH52,MXXH50202407

89000COMPUTER ASSY, DIGITAL KEY

main89000-07020iAXXA50,AXXH50..G,Q202304-202309

main89000-07021iAXXA50,AXXH50..G,Q202309

main89000-07022iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

890F0RECEIVER ASSY, BLE LUGGAGE DIGITAL KEY

main890E0-0E060iAXXA50,AXXH50..G,Q202309

MARK = C

main890E0-0E060iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

main890F0-0E020iAXXA50,AXXH50..G,Q202304-202308

MARK = EXCEPT C

sub890E0-0E060

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890E0-07010iAXXA50,AXXH50..G,Q202309

MARK = C

main890E0-07010iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

main890G0-07020iAXXA50,AXXH50..G,Q202304-202308

MARK = EXCEPT C

sub890E0-07010

89990ACOMPUTER ASSY, SMART KEY

main899H0-07030iAXXA50,MXXA50201903-202106

main899H0-07040iAXXH50201903-202107

main899H0-07070iAXXA50..B202106-202303

main899H0-07080iAXXH50..B,E202107-202303

main899H0-07090iMXXA50..B,E202304-202407

main899H0-07100iAXXA50..G202304

main899H0-07110iAXXH50..G,Q202304

main899H0-07120iMXXH50..E202407

main899H0-07130iMXXA50..E202407

main899H0-07140iAXXH52,MXXH50..B,G,Q202407

main899H0-07150iMXXA50..B202407

89997ANTENNA, ELECTRICAL KEY

main89997-0E060iAXXA50,MXXA50201903-202309

sub89997-0E061

main89997-0E061iMXXA50..B,E202310-202407

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-0D070iAXXA50,MXXA50201903-202407

main899A0-0R160iMXXA50..B,E;AXXH52,MXXH50202407

90119C0307

main90119-C0307

9015960498

main90159-60498

9015960621

main90159-60621

90159C0027

main90159-C0027

90178C0011

main90178-C0011

90178C0076

main90178-C0076

9017906274

main90179-06274

9018906197

main90189-06197

16 parts on this diagram · 1 diagram in section
