CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1

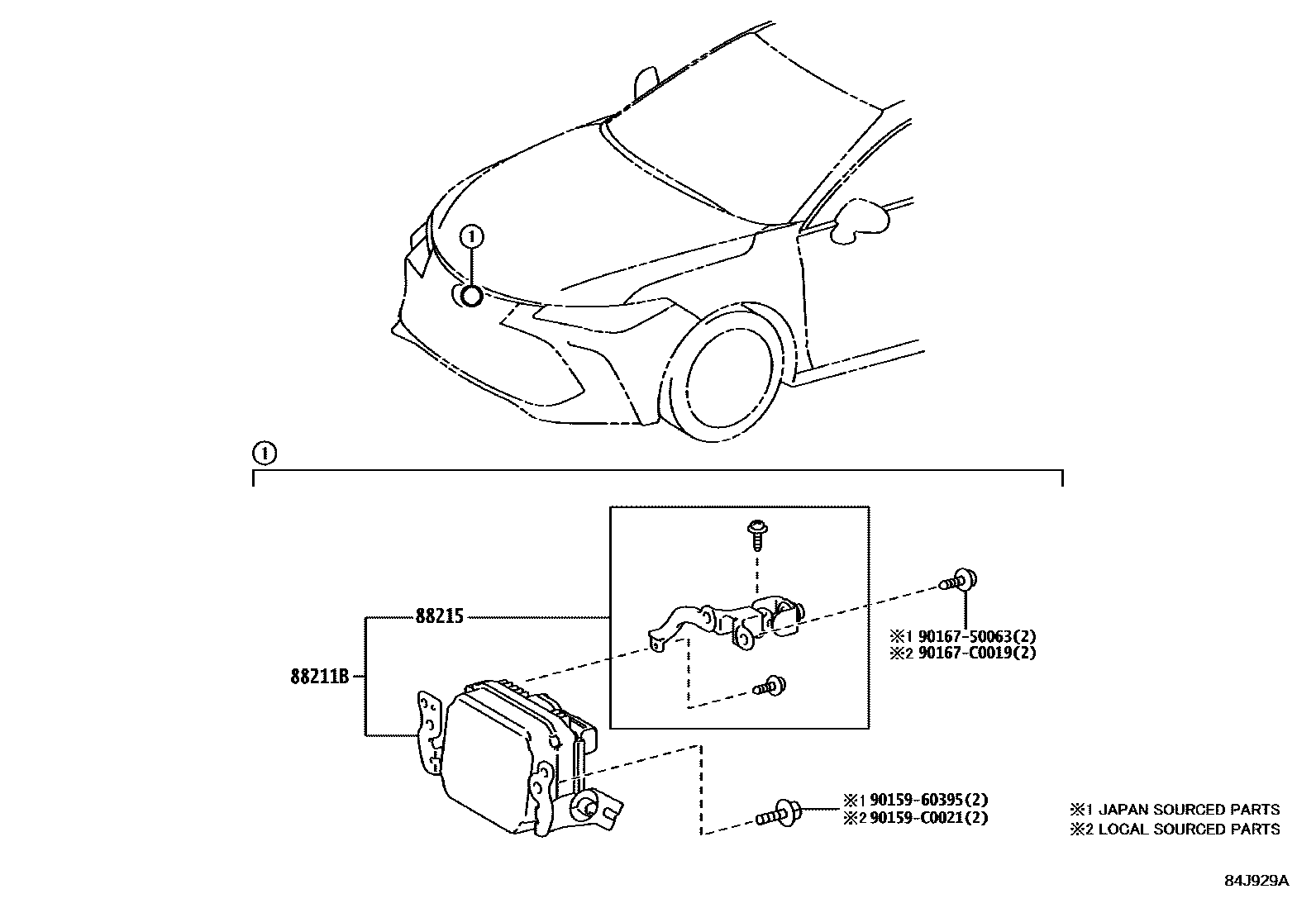

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-06060iMXXA50..G;AXXA50,AXXH50202203-202407

main88210-0E030iAXXA50,MXXA50;AXXH50..B,G,Q202106-202203

main88210-0R060iMXXA50..B,E;AXXH52,MXXH50202407

main88210-47090iAXXA50,MXXA50201903-202107

88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1

main88201-60010iAXXA50,MXXA50201903-202203

9015960395

main90159-60395

90159C0021

main90159-C0021

9016750063

main90167-50063

90167C0019

main90167-C0019

6 parts on this diagram · 3 diagrams in section
