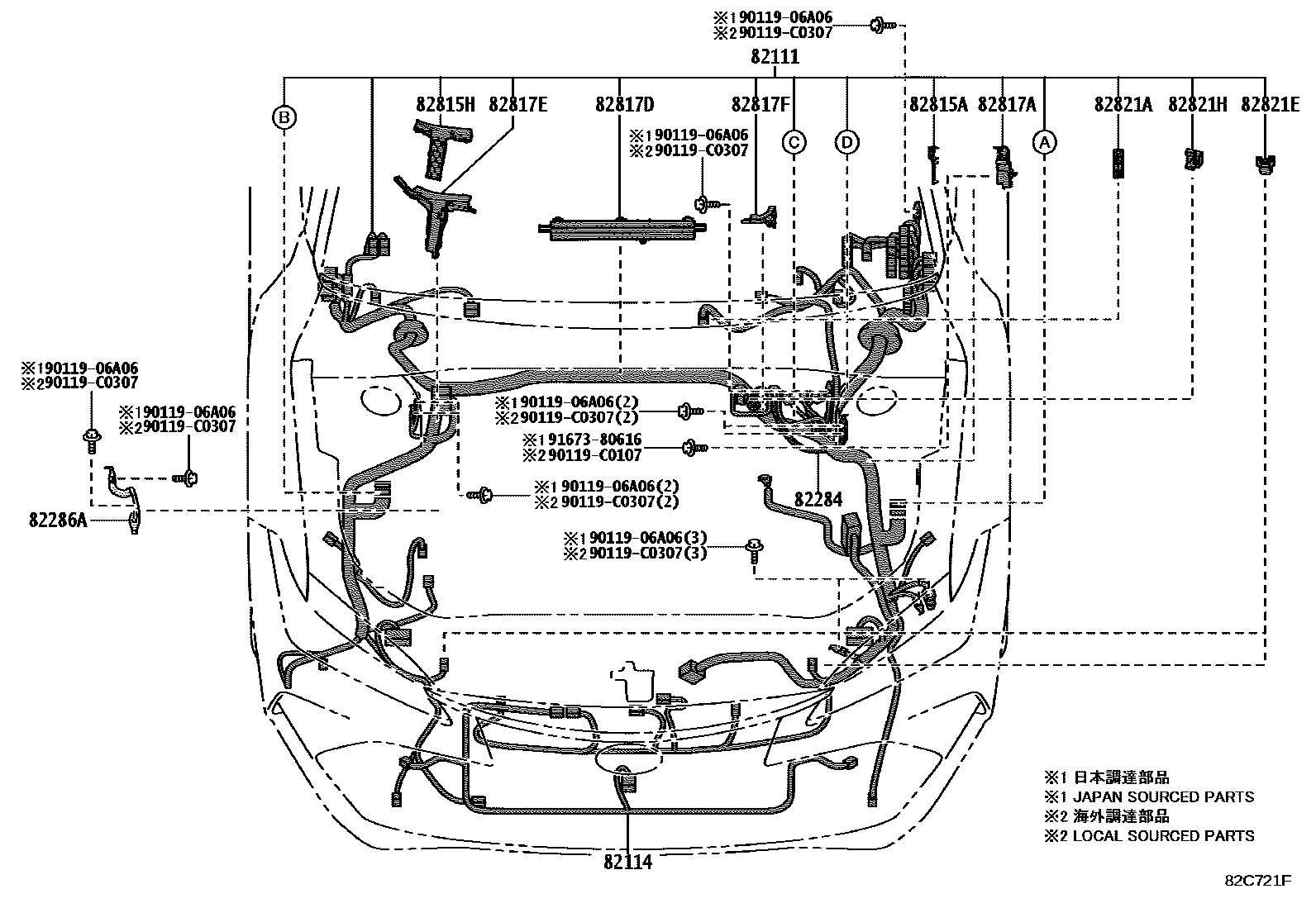

WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE 0006 1ENGINE 0007 1ENGINE 1/3 0008 1ENGINE 2/3 0009 1ENGINE 3/3 0010 1ENGINE 1/3 0011 1ENGINE 2/3 0012 1ENGINE 3/3 0013 1ENGINE 1/3 0014 1ENGINE 2/3 0015 1ENGINE 3/3 0016 1INSTRUMENT PANEL 0017 1DOOR 0018 1FLOOR & ROOF 0019 1FLOOR & ROOF 0020 1HIGH TENSION CABLE 0021 1SEAT 0022 1CLAMP & BRACKET 0023 1CLAMP & BRACKET 0024 1CONNECTOR 1/3 0025 1CONNECTOR 2/3 0026 1CONNECTOR 3/3

82111WIRE, ENGINE ROOM MAIN

main82111-07B20iMXXA50..B,E202203-202303

main82111-07B40iMXXA50..G202203-202303

main82111-07B50iAXXA50..E202203-202303

main82111-07B60iAXXA50..G202203-202303

main82111-07C20iAXXH50..B202203-202303

main82111-07C30iAXXH50..G,Q202203-202303

main82111-07C40iMXXA50..B,E202304-202407

main82111-07C60iMXXA50..G202304

main82111-07C70iAXXA50..B202304

main82111-07C80iAXXA50..G202304

main82111-07C90iAXXH50..B,E202304

main82111-07D00iAXXH50..G,Q202304

main82111-07J10iMXXA50..G201910-201912

main82111-07J20iMXXA50..B,E201910-202203

main82111-07J40iMXXA50..G201912-202008

main82111-07J41iMXXA50..G202008-202203

main82111-07J60iAXXA50..G201903-202203

main82111-07J70iAXXH50..B,E201903-201912

main82111-07J80iAXXH50..G,Q201912-202104

main82111-07J81iAXXH50..G,Q202104-202203

main82111-07J90iAXXH50..B,E201912-202104

main82111-07J91iAXXH50..E202104-202203

main82111-07K00iAXXH50..G,Q201903-201912

main82111-07K10iAXXA50..E201903-202203

main82111-YK060iMXXA50..E202407

main82111-YK070iMXXA50..B202407

main82111-YK080iMXXH50..E202407

main82111-YK090iMXXH50..B202407

main82111-YK100iAXXH52..G;MXXH50..G,Q202407

main82111-YK110iAXXH52..Q202407

82114WIRE, ENGINE ROOM, NO.4

main82114-07020iMXXA50..G202203-202303

main82114-07050iAXXA50,AXXH50,MXXA50..G,Q201903-202203

main82114-07060iMXXA50..G202203-202303

BACK MONITOR-WITH(*PVM)

main82114-YK030iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

82284WIRE, EARTH

main82284-07030iAXXA50;MXXA50..G201903-202407

main82284-YK010iMXXA50..B,E202407

82286AWIRE, EARTH, NO.2

main82286-33020iAXXH50¥1,790201903-202303

main82286-YK020iMXXA50..B,E;AXXH52,MXXH50202407

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-33E00iAXXA50,MXXA50201903-202407

main82815-33E30iAXXH50201903-202303

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-33K50iMXXA50..B,E¥460201903-202407

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-33N30iAXXA50,MXXA50201903-202407

main82817-33U80iAXXH50201903-202303

main82817-3T760iAXXH52,MXXH50202407

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-33Y20iAXXH50..E¥1,010201903-202407

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-33Y30iAXXA50,MXXA50¥870201903-202407

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-06840iAXXA50,MXXA50201903-202407

82821ACOVER, CONNECTOR

main82821-0R200iMXXA50..B,E¥140202407

main82821-33470iAXXH50¥220201903-202303

82821ECOVER, CONNECTOR

main82821-30650iMXXA50..B,E¥60202407

main82821-33620iAXXH50¥200201903-202303

main82821-48420iAXXH52,MXXH50¥200202407

82821HCOVER, CONNECTOR

main82821-33460iAXXH50¥360201903-202303

main82821-58110iMXXA50..B,E¥140202407

9011906A06

main90119-06A06¥60

90119C0107

main90119-C0107

90119C0307

main90119-C0307

9167380616

main91673-80616¥60

17 parts on this diagram · 26 diagrams in section
