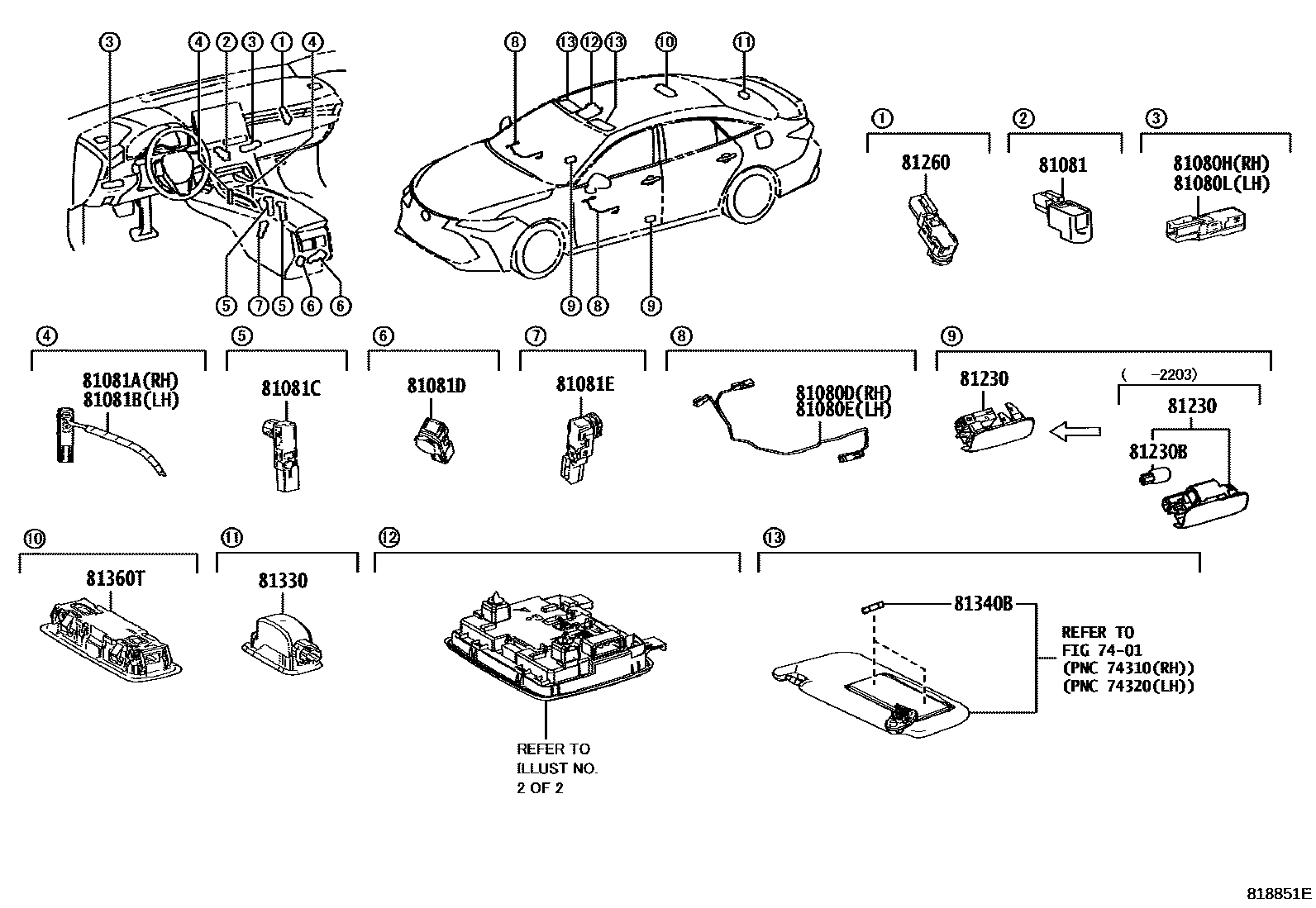

INTERIOR LAMP
7401
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2
81081BLAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.3
81081CLAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.4
81081DLAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.5
81081ELAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.6
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
12V 2W
81360TLAMP ASSY, SPOT
NEUTRAL WARM GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
NEUTRAL WARM GRAY,TRIM2#,43
NEUTRAL BEIGE,TRIM40
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
18 parts on this diagram · 4 diagrams in section
