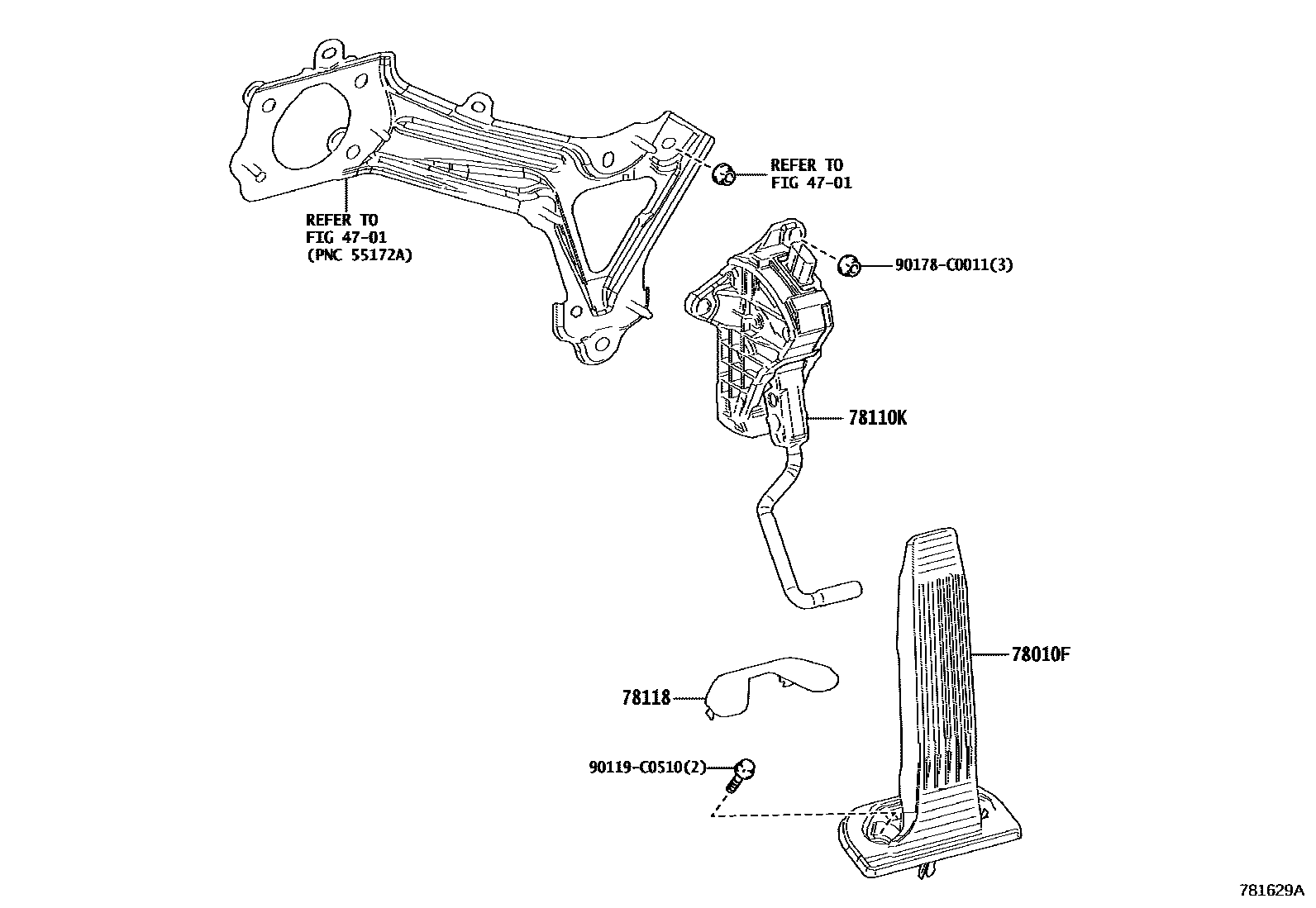

ACCELERATOR LINK

0001 1 0002 1

4701

78010FPEDAL ASSY, ACCELERATOR

main78101-07020iAXXA50,MXXA50201903-202206

sub78101-07021

main78101-07021iAXXA50,AXXH50,MXXA50202207-202407

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-06170iAXXH50,MXXA50201903-202010

sub78110-06171

main78110-06171iMXXA50;AXXH50..B,G,Q202011-202407

main78110-06210iAXXA50201903-202010

sub78110-06211

main78110-06211iAXXA50202011-202303

main78110-06230iMXXA50..B,E;AXXH52,MXXH50202407

78118PAD, ACCELERATOR PEDAL

main78117-06050iMXXA50..B,E;AXXH52,MXXH50202407

main78117-07010iAXXH50..E201903-202407

90119C0510

main90119-C0510

90178C0011

main90178-C0011

6 parts on this diagram · 2 diagrams in section
