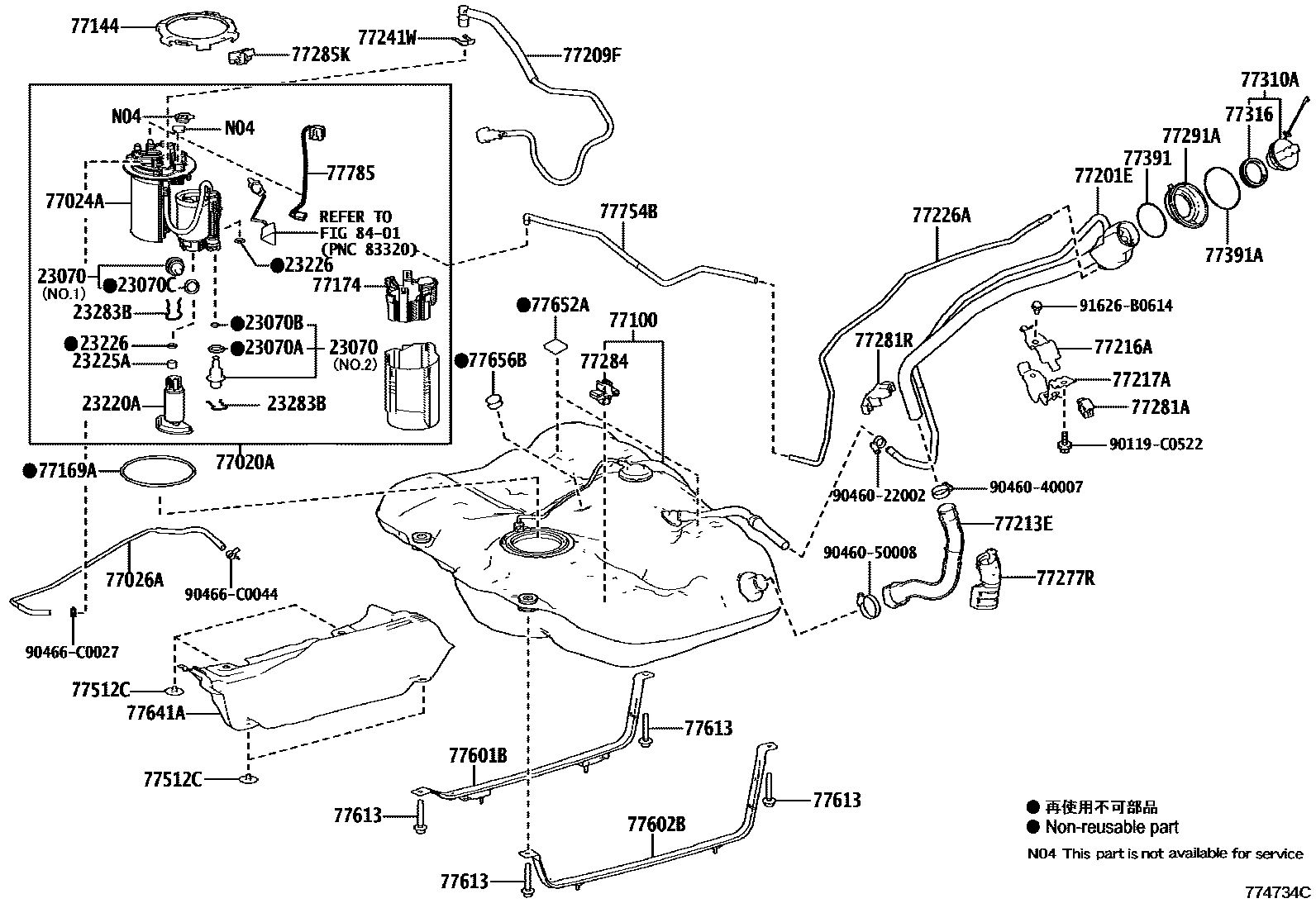

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
(J)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
(L)
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23070BRING, O, NO.2(FOR FUEL MAIN VALVE)
23070CRING, O, NO.3(FOR FUEL MAIN VALVE)
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23226RING, O(FOR FUEL PUMP)
23283BHOLDER, FUEL PRESSURE REGULATOR
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
(L)
(J)
77174SUPPORT, FUEL SUCTION, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
(L)
(L)
(J)
(J)
77241WCLIP, TUBE JOINT
EXHAUST EMISSION CONTROL-CHINA 6
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281BRACKET, FUEL MAIN TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77281RCLAMP, FUEL FILLER PIPE, NO.2
77284CLAMP, FUEL TUBE
77285KCLAMP, FUEL TUBE, NO.1
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
(L)
(J)
77391ARING, FUEL INLET BOX
77512CBRACKET, FUEL TANK
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77613BOLT, FUEL TANK BAND SET
77641APROTECTOR, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77656BCUSHION, FUEL TANK, NO.6
77754BHOSE, CHARCOAL CANISTER OUTLET
77785HARNESS, FUEL PUMP
(L)
(J)
8401
90119C0522
main90119-C0522
9046022002
main90460-22002
9046040007
main90460-40007
9046050008
main90460-50008
90466C0027
main90466-C0027
90466C0044
main90466-C0044
91626B0614
main91626-B0614
50 parts on this diagram · 12 diagrams in section
