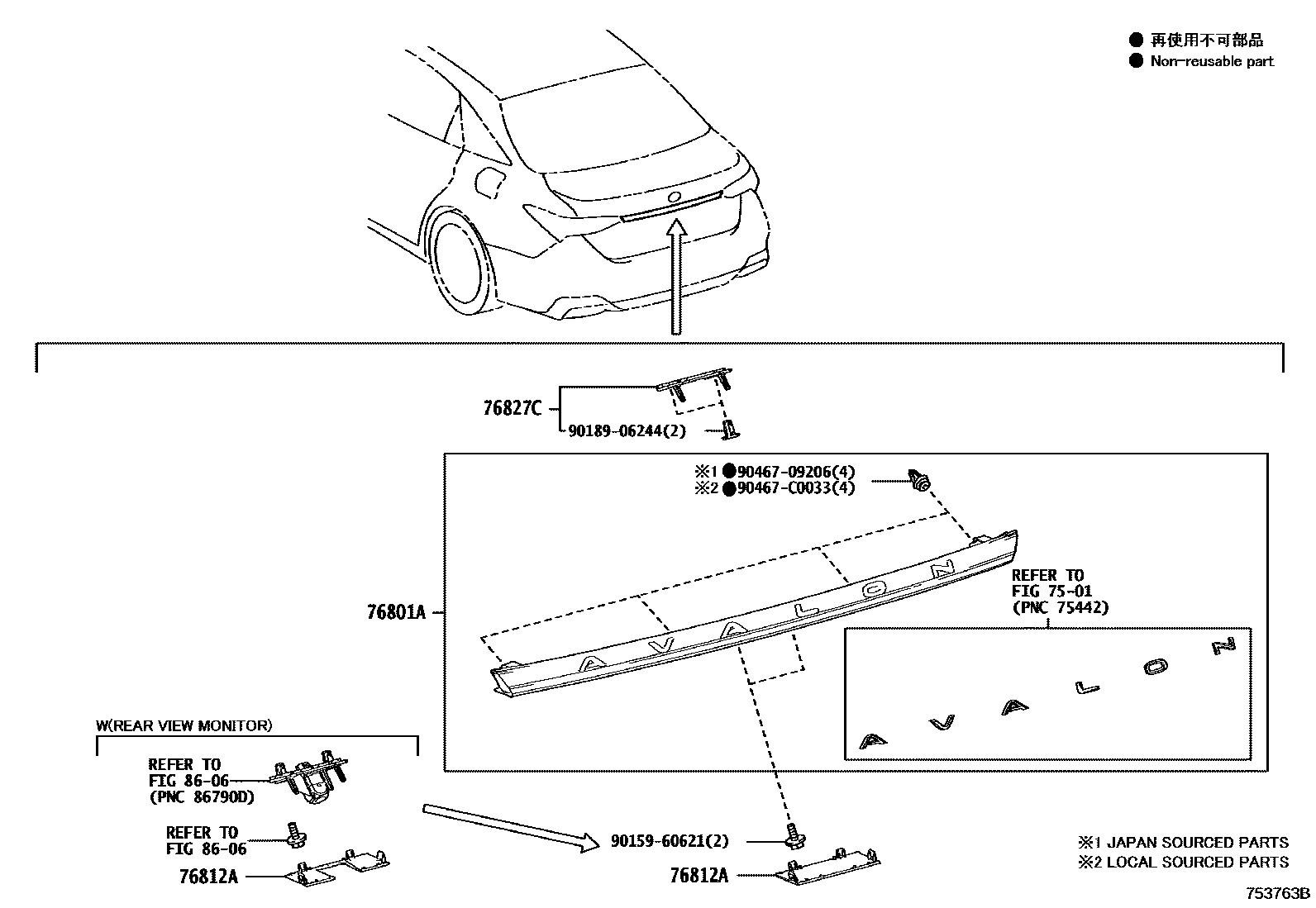

REAR MOULDING

7501

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-07110iAXXA50,AXXH50201903-201904

main76801-07111iAXXH50..E202106-202202

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-07020supersedes 76812-07030iAXXA50,MXXA50..B,G201903-202106

main76812-07030iAXXH50..E202106-202202

76827CRETAINER, LUGGAGE COMPARTMENT DOOR GARNISH, NO.2

main76829-07010iAXXA50,MXXA50..E201903-202106

8606

9015960621

main90159-60621

9018906244

main90189-06244

9046709206

main90467-09206

90467C0033

main90467-C0033

9 parts on this diagram · 1 diagram in section
