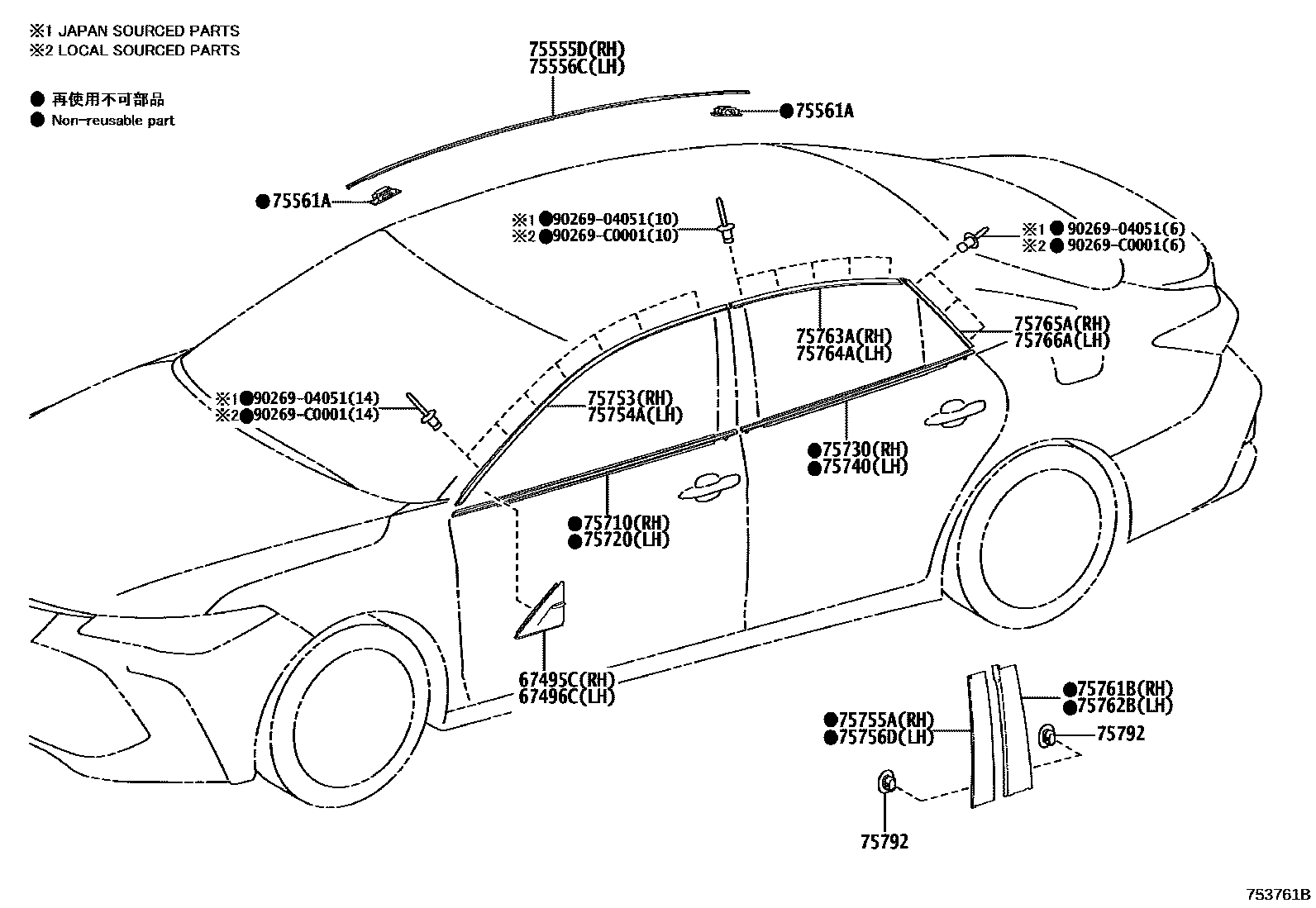

SIDE MOULDING

0001 1 0002 1

67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-07020iAXXA50,MXXA50201903-202107

sub67495-07030

main67495-07030iAXXH50..E202106-202407

main67495-07050iMXXA50..B,E;AXXH52,MXXH50202407

67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-07020iAXXA50,MXXA50201903-202107

sub67496-07030

main67496-07030iAXXH50..E202106-202407

main67496-07050iMXXA50..B,E;AXXH52,MXXH50202407

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-07030iMXXA50;AXXA50..E201903-202407

main75555-07030iMXXA50..E202407

ENTRY PLUS PACKAGE

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-07030iMXXA50;AXXA50..E201903-202407

main75556-07030iMXXA50..E202407

ENTRY PLUS PACKAGE

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-0N030iMXXA50;AXXA50..E201903-202407

main75561-0N030iMXXA50..E202407

ENTRY PLUS PACKAGE

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-07040iAXXA50,MXXA50201903-202407

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-07040iAXXA50,MXXA50201903-202407

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-07040iAXXA50,MXXA50201903-202407

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-07040iAXXA50,MXXA50201903-202407

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-07040iAXXA50,MXXA50201903-202407

NO PAINT REQ.

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-07040iAXXA50,MXXA50201903-202407

NO PAINT REQ.

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-07040iAXXA50,MXXA50201903-202107

sub75755-07050

sub75756-07050

sub75761-07050

sub75762-07050

main75755-07050iAXXH50..E202106-202407

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-07040iAXXA50,MXXA50201903-202107

sub75756-07050

sub75755-07050

sub75761-07050

sub75762-07050

main75756-07050iAXXH50..E202106-202407

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-07040iAXXA50,MXXA50201903-202107

sub75761-07050

sub75755-07050

sub75756-07050

sub75762-07050

main75761-07050iAXXH50..E202106-202407

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-07040iAXXH50201903-202107

sub75762-07050

sub75755-07050

sub75756-07050

sub75761-07050

main75762-07050iAXXH50..E202106-202407

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-07040iAXXA50,MXXA50201903-202407

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-07040iAXXA50,MXXA50201903-202407

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-07040iAXXA50,MXXA50201903-202407

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-07040iAXXA50,MXXA50201903-202407

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-0D010iMXXA50..G;AXXA50,AXXH50201903-202407

(L)

main75792-47010iAXXH50..E201903-202407

(J)

9026904051

main90269-04051

90269C0001

main90269-C0001

22 parts on this diagram · 2 diagrams in section
