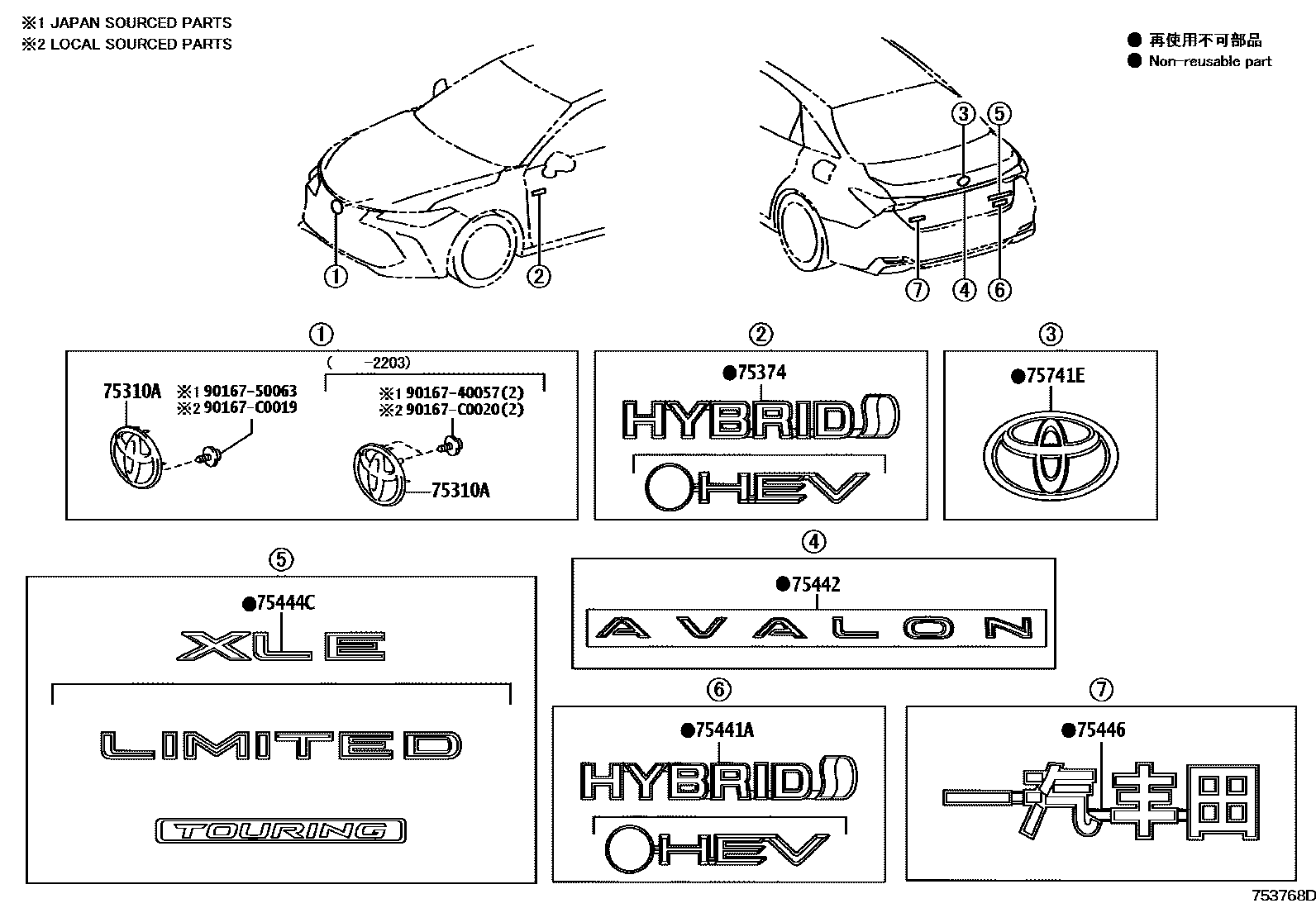

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75310AEMBLEM ASSY, RADIATOR GRILLE

main53141-33130iAXXA50,MXXA50201903-202004

main53141-33130iAXXA50,MXXA50202004-202203

(J)

main53141-33140iAXXH50..E202004-202203

(J)

main53141-33140iAXXH50201903-202004

main53141-YK010iMXXA50..B,E;AXXH52,MXXH50202407

main90975-C2022iAXXH50202203-202303

main90975-C2023iAXXA50;MXXA50..G202203-202407

main90975-C2024iAXXA50,MXXA50202004-202203

(L)

main90975-C2025iAXXH50..B,G,Q202004-202203

(L)

75374EMBLEM, SIDE PANEL

main75374-07010iAXXH50..B,G,Q201903-202303

RH

main75374-07020iAXXH50201903-202303

LH

main75440-YK010iAXXH52,MXXH50202407

75441APLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75440-YK010iAXXH52,MXXH50202407

HEV

main75441-07010iAXXH50201903-202303

HYBRID

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-07050iAXXH50201903-202407

AVALON

75444CPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.4

main75443-07120iAXXH50,MXXA50..G201903-202303

XLE

main75444-07030iAXXA50..G201903-202303

TOURING

main75444-07040iAXXH52,MXXH50..Q201903-202303

LIMITED

75446PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.6

main75441-02490iAXXH50..E202106-202303

main75441-02491iMXXA50..G;AXXA50,AXXH50202304-202407

main75446-07010iAXXA50,MXXA50201903-202107

75741EEMBLEM, SYMBOL

main75403-07020iAXXH50..B,G,Q201903-202303

main75446-YK010iMXXA50..B,E;AXXH52,MXXH50202407

main90975-C2002iMXXA50..B,E201903-202407

9016740057

main90167-40057

9016750063

main90167-50063

90167C0019

main90167-C0019

90167C0020

main90167-C0020

11 parts on this diagram · 1 diagram in section
