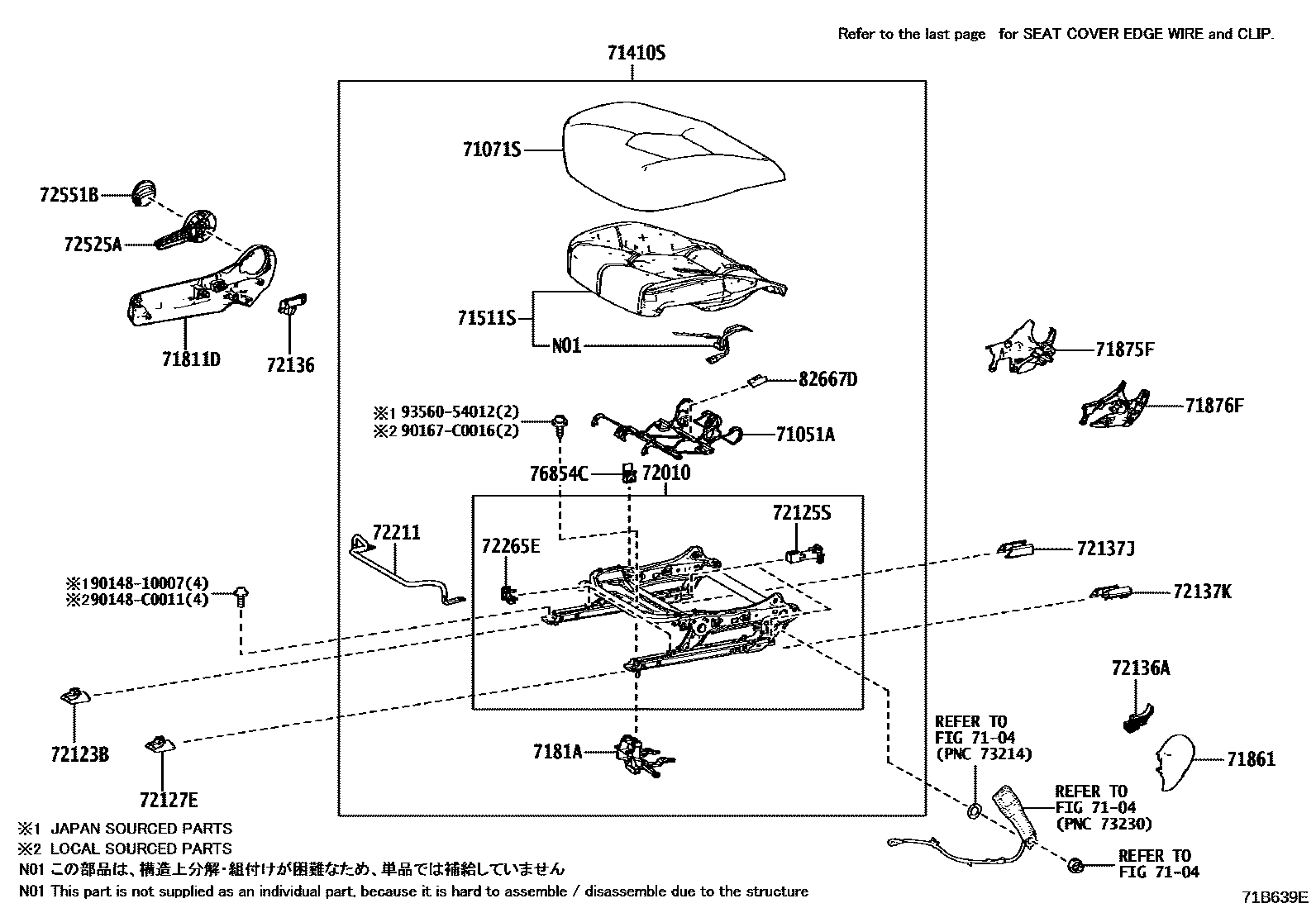

FRONT SEAT & SEAT TRACK

0001 1SEAT CUSHION(MANUAL 4-WAY), R0003 1SEAT CUSION(MANUAL 4-WAY), RH0004 1SEAT BACK(MANUAL 4-WAY), RH 0006 1SEAT BACK(MANUAL 4-WAY), RH 0007 1SEAT CUSHION(MANUAL 6-WAY), L0009 1SEAT CUSHION(MANUAL 6-WAY), L0010 1SEAT BACK(MANUAL 6-WAY), LH 0012 1SEAT BACK(MANUAL 6-WAY), LH 0013 1SEAT CUSHION(POWER 4-WAY), RH0015 1SEAT CUSHION(POWER 4-WAY), RH0016 1SEAT BACK(POWER 4-WAY), RH 0018 1SEAT BACK(POWER 4-WAY), RH 0019 1SEAT CUSHION(POWER 8-WAY), RH0021 1SEAT CUSHION(POWER 8-WAY), RH0022 1SEAT BACK(POWER 8-WAY), RH 0024 1SEAT BACK(POWER 8-WAY), RH 0025 1SEAT CUSHION(POWER 8-WAY), LH0027 1SEAT CUSHION(POWER 8-WAY), LH0028 1SEAT BACK(POWER 8-WAY), LH 0030 1SEAT BACK(POWER 8-WAY), LH 0031 1CLIP & SEAT EDGE WIRE

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-06040iAXXH50201903-202407

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-07190-C1iAXXH50..E201903-202407

BLACK,TRIM2#

main71071-07200-C4iAXXA50..G201903-202106

S GRADE PACKAGE,BLACK,TRIM2#

main71071-07200-C4iAXXH50..G201903-202303

BLACK,TRIM2#

main71071-07200-C4iAXXA50..G202203-202303

BLACK,TRIM20

main71071-07200-C5iAXXA50..G202203-202303

BLACK/CHATEAU,TRIM21

main71071-07200-E6iAXXA50..G201903-202303

NEUTRAL BEIGE,TRIM4#

main71071-07200-E6iAXXA50,AXXH50..G201903-202008

S GRADE PACKAGE,NEUTRAL BEIGE,TRIM4#

main71071-07200-E6iAXXA50..G202008-202303

NEUTRAL BEIGE,TRIM40

main71071-07200-E6iAXXA50..G202008-202106

S GRADE PACKAGE,NEUTRAL BEIGE,TRIM40

main71071-07200-E7iAXXA50..G202008-202303

BROWN,TRIM43

main71071-07200-E7iAXXA50..G202008-202106

S GRADE PACKAGE,BROWN,TRIM43

main71071-07210-C5iAXXH50..Q201903-202303

BLACK,TRIM2#

main71071-07210-L1iAXXH50..Q201903-202303

OCHER,TRIM43

main71071-07210-L2iAXXH50..Q201903-202303

NEUTRAL BEIGE,TRIM40

main71071-07220-C1iMXXA50..G;AXXH50..B,E202304

BLACK,TRIM20

main71071-07220-C1iMXXA50..G;AXXH50..B,E201903-202407

BLACK,TRIM2#

main71071-07220-C2iAXXA50..B202304

BLACK/CHATEAU,TRIM21

main71071-07220-E1iAXXA50..E202106-202303

B GRADE PACKAGE(WITH BACK MONITOR),NEUTRAL BEIGE,TRIM4#

main71071-07220-E1iAXXH50..B;MXXA50..B,G201903-202407

NEUTRAL BEIGE,TRIM4#

main71071-07230-C0iAXXA50..G202304

BLACK,TRIM20

main71071-07230-C0iAXXA50..G202304

BLACK,TRIM2#

main71071-07230-C1iAXXA50..G202304

BLACK/CHATEAU,TRIM21

main71071-07230-E0iAXXH50..G202304

OCHER,TRIM43

main71071-07230-E1iAXXH50..G202304

NEUTRAL BEIGE,TRIM40

main71071-07230-E1iAXXH50..G202304

NEUTRAL BEIGE,TRIM4#

main71071-YK150-C2iMXXA50..E202407

BLACK_DIAGONAL LINE,TRIM2#

main71071-YK160-B1iMXXA50..E202407

COOL GRAY,TRIM1#

main71071-YK160-B1iMXXA50..B;MXXH50..B,E202407

ENTRY PLUS PACKAGE,COOL GRAY,TRIM1#

main71071-YK160-C1iMXXA50..B;MXXH50..B,E202407

ENTRY PLUS PACKAGE,BLACK,TRIM2#

main71071-YK160-C1iMXXA50..E202407

BLACK,TRIM2#

main71071-YK160-E2iMXXA50..B;MXXH50..B,E202407

ENTRY PLUS PACKAGE,OCHER,TRIM4#

main71071-YK160-E2iMXXA50..B;MXXH50..B,E202407

OCHER,TRIM4#

main71071-YK200-B0iAXXH52,MXXH50..G,Q202407

COOL GRAY,TRIM1#

main71071-YK200-C0iAXXH52,MXXH50..G,Q202407

BLACK,TRIM2#

main71071-YK200-E0iAXXH52,MXXH50..G,Q202407

OCHER,TRIM4#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-07120-C1iMXXA50..E201903-202407

BLACK,TRIM2#

main71410-07130-C5iAXXA50..G201903-202106

S GRADE PACKAGE,BLACK,TRIM2#

main71410-07130-C5iAXXA50..G201903-202303

BLACK,TRIM2#

main71410-07130-C5iAXXA50..G202203-202303

BLACK,TRIM20

main71410-07130-C6iAXXA50..G202203-202303

BLACK/CHATEAU,TRIM21

main71410-07130-E7iAXXH50..G202008-202303

NEUTRAL BEIGE,TRIM40

main71410-07130-E7iAXXA50,AXXH50..G201903-202303

NEUTRAL BEIGE,TRIM4#

main71410-07130-E7iAXXA50,AXXH50..G201903-202008

S GRADE PACKAGE,NEUTRAL BEIGE,TRIM4#

main71410-07130-E7iAXXA50..G202008-202106

S GRADE PACKAGE,NEUTRAL BEIGE,TRIM40

main71410-07130-E8iAXXA50..G202008-202303

BROWN,TRIM43

main71410-07130-E8iAXXA50..G202008-202106

S GRADE PACKAGE,BROWN,TRIM43

main71410-07140-C5iAXXH50..Q201903-202203

BLACK,TRIM2#

main71410-07140-L1iAXXH50..Q201903-202203

OCHER,TRIM40

main71410-07140-L2iAXXH50..Q201903-202203

NEUTRAL BEIGE,TRIM43

main71410-07150-C1iAXXH50..B;MXXA50..B,G201903-202407

BLACK,TRIM2#

main71410-07150-C1iAXXA50..B202304

BLACK,TRIM20

main71410-07150-C2iAXXA50..B202304

BLACK/CHATEAU,TRIM21

main71410-07150-E1iMXXA50..B201903-202407

NEUTRAL BEIGE,TRIM4#

main71410-07150-E1iAXXH50..B;MXXA50..B,G202106-202303

B GRADE PACKAGE(WITH BACK MONITOR),NEUTRAL BEIGE,TRIM4#

main71410-07210-C0iAXXH50..Q202203-202303

BLACK,TRIM2#

main71410-07210-E0iAXXH50..Q202203-202303

NEUTRAL BEIGE,TRIM40

main71410-07210-E1iAXXH50..Q202203-202303

OCHER,TRIM43

main71410-07220-C0iAXXH50..E202304

BLACK,TRIM2#

main71410-07220-E0iAXXH50..E202304

NEUTRAL BEIGE,TRIM4#

main71410-07230-C0iAXXA50..G202304

BLACK,TRIM20

main71410-07230-C0iAXXA50..G202304

BLACK,TRIM2#

main71410-07230-C1iAXXA50..G202304

BLACK/CHATEAU,TRIM21

main71410-07230-E0iAXXA50..G202304

OCHER,TRIM4#

main71410-07230-E0iAXXA50..G202304

OCHER,TRIM40

main71410-07230-E1iAXXH50..G202304

NEUTRAL BEIGE,TRIM43

main71410-YK130-C1iMXXA50..E202407

BLACK_DIAGONAL LINE,TRIM2#

main71410-YK140-B0iMXXA50..B;MXXH50..B,E202407

COOL GRAY,TRIM1#

main71410-YK140-B0iMXXA50..B;MXXH50..B,E202407

ENTRY PLUS PACKAGE,COOL GRAY,TRIM1#

main71410-YK140-C3iMXXA50..B;MXXH50..B,E202407

BLACK,TRIM2#

main71410-YK140-C3iMXXA50..B;MXXH50..B,E202407

ENTRY PLUS PACKAGE,BLACK,TRIM2#

main71410-YK140-E0iMXXA50..B;MXXH50..B,E202407

OCHER,TRIM4#

main71410-YK140-E0iMXXA50..B;MXXH50..B,E202407

ENTRY PLUS PACKAGE,OCHER,TRIM4#

main71410-YK180-B0iAXXH52,MXXH50..G,Q202407

COOL GRAY,TRIM1#

main71410-YK180-C0iAXXH52,MXXH50..G,Q202407

BLACK,TRIM2#

main71410-YK180-E0iAXXH52,MXXH50..G,Q202407

OCHER,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-07010iMXXA50..B201903-202407

main71501-07010iAXXA50,AXXH50,MXXA50..B,G202106-202303

B GRADE PACKAGE(WITH BACK MONITOR)

main71501-07030iAXXA50,MXXA50..E201903-202407

main71501-07070iAXXA50,AXXH50..G202304

main71501-YK010iMXXA50..E202407

main71501-YK900iMXXA50..B;MXXH50..B,E202407

ENTRY PLUS PACKAGE

main71501-YK901iAXXH52,MXXH50..G,Q202407

main71511-07080iAXXH50..Q201903-202303

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-07090-C0iMXXA50..E201903-202407

BLACK,TRIM2#

main71811-07090-C0iAXXA50..E201903-202303

BLACK,TRIM2#,4#

main71811-07100-C0iAXXA50,AXXH50,MXXA50..B,G201903-202407

BLACK,TRIM2#,4#

main71811-07100-C0iMXXA50..B;MXXH50..B,E202407

ENTRY PLUS PACKAGE,BLACK,TRIM1#,2#,4#

main71811-07100-C0iAXXA50..E202106-202303

B GRADE PACKAGE(WITH BACK MONITOR),BLACK,TRIM2#,4#

main71811-07100-C0iMXXA50..E202407

BLACK,TRIM1#,2#,4#

main71811-07110-C0iAXXH50..Q201903-202303

BLACK,TRIM2#,4#

main71811-07110-C0iAXXH52,MXXH50..G,Q202407

BLACK,TRIM1#,2#,4#

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-07030iAXXH50..Q201903-202303

main7181A-F4030iMXXA50..B,E201903-202407

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-07050-C0iAXXA50;AXXH50,MXXA50..B,G201903-202407

BLACK,TRIM2#

main71861-07050-C0iMXXA50..E201903-202407

BLACK,TRIM2#,4#

main71861-07050-C0iMXXA50..E202407

BLACK,TRIM1#,2#,4#

main71861-F4070-C0iAXXH52,MXXH50..G,Q202407

BLACK,TRIM1#,2#,4#

main71861-F4070-C0iAXXH50..Q201903-202303

BLACK,TRIM2#,4#

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-07030-C0iMXXA50..E201903-202407

BLACK,TRIM2#

main71875-07030-C0iMXXA50..E201903-202407

BLACK,TRIM2#,4#

main71875-07030-C0iMXXA50..E202407

BLACK,TRIM1#,2#,4#

main71875-F4090-C0iAXXH50..Q201903-202303

BLACK,TRIM2#,4#

main71875-F4090-C0iAXXH52,MXXH50..G,Q202407

BLACK,TRIM1#,2#,4#

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71875-07040-C0iAXXA50;AXXH50,MXXA50..B,G201903-202407

BLACK,TRIM2#,4#

main71875-07040-C0iMXXA50..E201903-202407

BLACK,TRIM2#

main71875-07040-C0iMXXA50..E202407

BLACK,TRIM1#,2#,4#

main71875-F4100-C0iAXXH50..Q201903-202303

BLACK,TRIM2#,4#

main71875-F4100-C0iAXXH52,MXXH50..G,Q202407

BLACK,TRIM1#,2#,4#

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-02890iMXXA50..E202407

main72010-07040iAXXH50..E201903-202407

main72010-07050iAXXA50,MXXA50..B,G201903-202407

main72010-07050iAXXA50,AXXH50,MXXA50..B,G202106-202303

B GRADE PACKAGE(WITH BACK MONITOR)

main72010-07060iAXXH50..Q201903-202303

main72010-YK010iMXXA50..E202407

ENTRY PLUS PACKAGE

main72010-YK020iAXXH52,MXXH50..G,Q202407

72123BCOVER, SEAT TRACK BRACKET, OUTER FRONT

main72123-F4030iAXXA50,MXXA50201903-202407

72125SCOVER, FRONT SEAT TRACK, UPPER REAR RH

main72125-F4010iAXXH50..E201903-202407

main72125-F4020iAXXA50,AXXH50,MXXA50..B,G,Q202106-202303

B GRADE PACKAGE(WITH BACK MONITOR)

main72125-F4020iMXXA50..B201903-202407

main72125-F4020iMXXA50..B;AXXH52,MXXH50202407

ENTRY PLUS PACKAGE

72127ECOVER, SEAT TRACK BRACKET, INNER FRONT

main72123-F4030iMXXA50..B,E201903-202407

72136SPACER, SEAT TRACK, LOWER NO.1

main72136-07030iAXXA50,MXXA50..E201903-202407

main72136-07060iAXXH50..B,G,Q201903-202407

main72136-07060iAXXA50,AXXH50,MXXA50..B,G,Q202106-202303

B GRADE PACKAGE(WITH BACK MONITOR)

main72136-07060iMXXA50..B;AXXH52,MXXH50202407

ENTRY PLUS PACKAGE

72136ASPACER, SEAT TRACK, LOWER NO.2

main72136-07070iAXXA50,MXXA50..B,G201903-202407

main72136-07070iAXXA50,AXXH50,MXXA50..B,G,Q202106-202303

B GRADE PACKAGE(WITH BACK MONITOR)

main72136-F4060iMXXA50..E201903-202407

main72136-F4150iMXXA50..E202407

main72136-YK010iMXXA50..E202407

ENTRY PLUS PACKAGE

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-F4020iAXXA50,MXXA50201903-202407

72137KCOVER, FRONT SEAT TRACK, RH REAR INNER

main72157-07040iAXXA50,MXXA50201903-202407

72211HANDLE, SEAT TRACK ADJUSTING

main72211-06140iMXXA50..E201903-202407

72265ECOVER, SEAT TRACK UPPER RAIL, RH

main72265-07020iAXXA50,MXXA50..B,G201903-202407

main72265-07020iAXXA50,AXXH50,MXXA50..B,G,Q202106-202303

B GRADE PACKAGE(WITH BACK MONITOR)

main72265-07020iMXXA50..B;AXXH52,MXXH50202407

ENTRY PLUS PACKAGE

main72265-F4010iAXXA50,MXXA50..E201903-202407

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-F4060-C0iAXXA50..E201903-202303

BLACK,TRIM2#,4#

main72525-F4060-C0iAXXA50..E201903-202407

BLACK,TRIM2#

72551BCOVER, RECLINING HINGE, RH

main72551-F4080-C0iAXXA50..E201903-202303

BLACK,TRIM2#,4#

main72551-F4080-C0iMXXA50..E201903-202407

BLACK,TRIM2#

76854CRETAINER, FRONT SEAT CUSHION COVER

main76854-44010iMXXA50..B¥40201907-202407

main76854-44010iAXXA50,AXXH50,MXXA50..B,G¥40202106-202303

B GRADE PACKAGE(WITH BACK MONITOR)

82667DHOLDER, CONNECTOR

main82666-07300iMXXA50..G;AXXA50,AXXH50..B,E,G201903-202407

9014810007

main90148-10007¥60

90148C0011

main90148-C0011

90167C0016

main90167-C0016

9356054012

main93560-54012¥60

28 parts on this diagram · 21 diagrams in section
