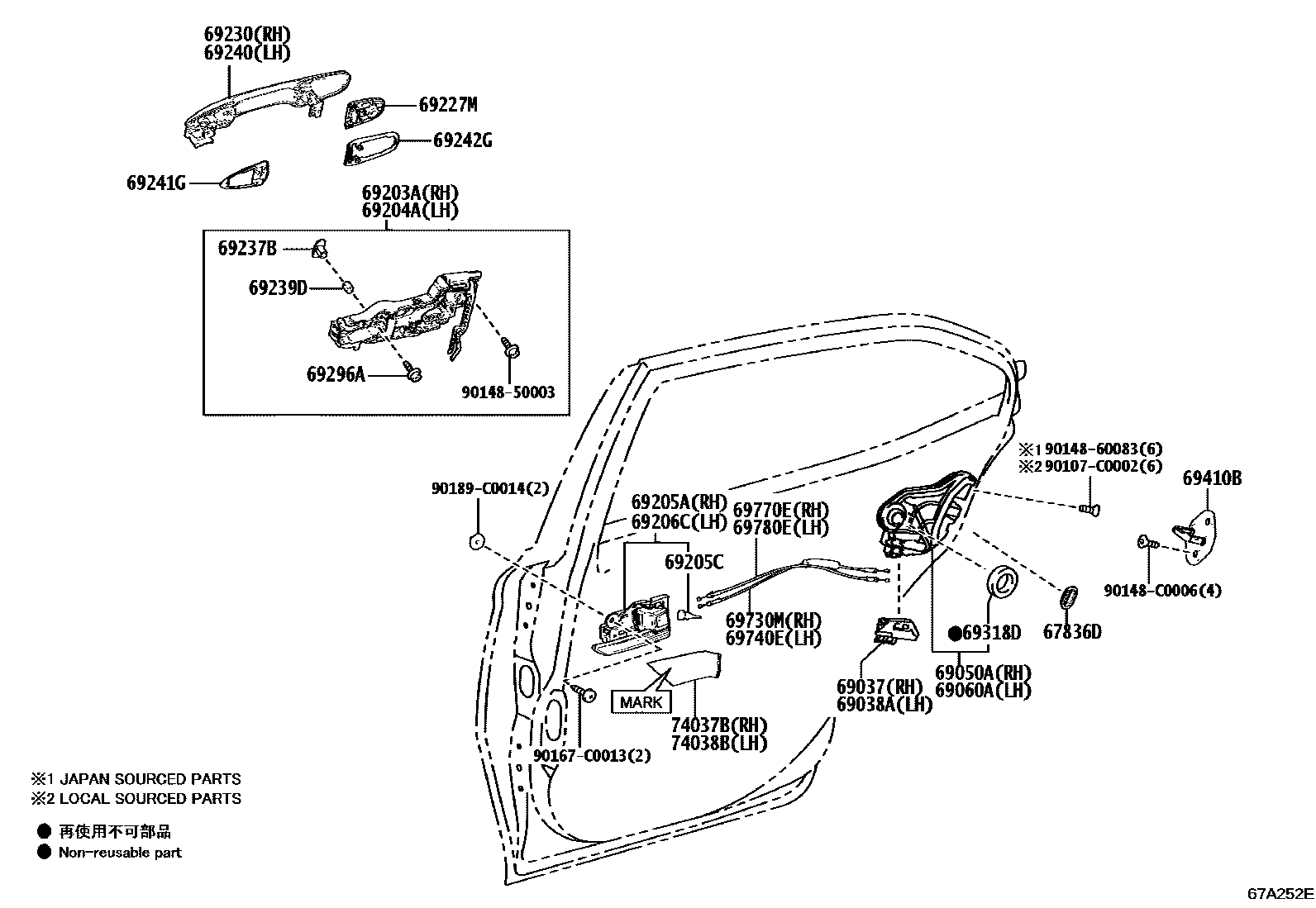

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-02040iAXXA50,MXXA50;AXXH50..B,G,Q201903-202407

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02060iAXXH50201903-202407

main69037-0R010iMXXA50..B,E;AXXH52,MXXH50202407

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02060iAXXA50,MXXA50;AXXH50..B,G,Q201903-202407

main69038-0R010iMXXA50..B,E;AXXH52,MXXH50202407

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02450iAXXA50,MXXA50201903-202407

main69050-YK020iMXXA50..B,E;AXXH52,MXXH50202407

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02450iAXXA50,MXXA50201903-202407

main69060-YK020iMXXA50..B,E;AXXH52,MXXH50202407

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-07030iAXXA50,MXXA50;AXXH50..B,G,Q201903-202407

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-07040iAXXA50,MXXA50201903-202407

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-07030-C0iAXXA50,MXXA50201903-202407

BLACK,TRIM2#,4#

main69205-07030-C0iAXXH50..E202106-202407

BLACK,TRIM2#

main69205-07030-C1iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iAXXA50,MXXA50201903-202407

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-07030-C0iMXXA50..E202106-202407

BLACK,TRIM2#

main69206-07030-C0iAXXA50,MXXA50201903-202407

BLACK,TRIM2#,4#

main69206-07030-C1iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

69227MCOVER, REAR DOOR OUTSIDE HANDLE

main69227-07030iAXXA50,MXXA50;AXXH50..B,G,Q201903-202407

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-07020-A0iAXXA50,MXXA50..E201903-202107

WHITE PEARL CS.,070

main69211-07020-A2iAXXH50..E202106-202407

PLATINUM WHITE PEARL MC.,089

main69211-07020-B0iAXXH50..E201903-202407

METAL STREAM ME,1K0

main69211-07020-B4iMXXA50,MXXH50..E202407

PRECIOUS METAL,1L5

main69211-07020-C0iAXXA50,MXXA50..E201903-202407

BLACK MC.,209

main69211-07020-D0iAXXH50..E201903-202407

RED MC.,3T3

main69211-07020-E0iAXXH50..E201903-202107

DK. BROWN M.M.,4U3

main69211-07020-E1iAXXH50..E201903-202407

BLACKISH BROWN MC.,4X9

main69211-07020-G2iMXXA50,MXXH50..E202407

BLACKISH GREEN CS.GF.,6X8

main69211-07020-J1iMXXA50..E202106-202407

NEBULA BLUE ME.,8X2

main69211-07030iMXXA50..B;AXXH52,MXXH50..B,G,Q201903-202407

PLATED

main69211-07030iAXXA50,AXXH50,MXXA50..B,G,Q202106-202303

PLATED,B GRADE PACKAGE(WITH BACK MONITOR)

69237BNUT, REAR DOOR HANDLE

main69237-06030iAXXH50..E201903-202407

69239DBUSH, REAR DOOR HANDLE

main69239-07030iAXXA50,MXXA50201903-202407

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-07020-A0iAXXA50,MXXA50..E201903-202107

WHITE PEARL CS.,070

main69211-07020-A2iMXXA50,MXXH50..E202106-202407

PLATINUM WHITE PEARL MC.,089

main69211-07020-B0iAXXA50,MXXA50..E201903-202407

METAL STREAM ME,1K0

main69211-07020-B4iMXXA50,MXXH50..E202407

PRECIOUS METAL,1L5

main69211-07020-C0iMXXA50,MXXH50..E201903-202407

BLACK MC.,209

main69211-07020-D0iAXXH50..E201903-202407

RED MC.,3T3

main69211-07020-E0iAXXH50..E201903-202107

DK. BROWN M.M.,4U3

main69211-07020-E1iAXXH50..E201903-202407

BLACKISH BROWN MC.,4X9

main69211-07020-G2iMXXA50,MXXH50..E202407

BLACKISH GREEN CS.GF.,6X8

main69211-07020-J1iMXXA50..E202106-202407

NEBULA BLUE ME.,8X2

main69211-07030iMXXA50..B;AXXH52,MXXH50..B,G,Q201903-202407

PLATED

main69211-07030iAXXA50,AXXH50,MXXA50..B,G,Q202106-202303

PLATED,B GRADE PACKAGE(WITH BACK MONITOR)

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-07020iAXXH50..E201903-202407

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-07020iAXXA50,MXXA50201903-202407

69296ASCREW, DOOR INSIDE HANDLE

main69296-30010iAXXA50,MXXA50201903-202108

main90148-C0013iAXXH50..E202109-202407

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iAXXA50,MXXA50201903-202407

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0D020iAXXA50,MXXA50201903-202407

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-07030iAXXA50,MXXA50201903-202202

main69730-07040iAXXA50,AXXH50,MXXA50202203-202407

main69730-YK020iMXXA50..B,E;AXXH52,MXXH50202407

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-07030iAXXH50201903-202202

main69730-07040iMXXA50..G;AXXA50,AXXH50202203-202407

main69730-YK020iMXXA50..B,E;AXXH52,MXXH50202407

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-07040iAXXA50,MXXA50201903-202202

main69770-07050iAXXA50,AXXH50,MXXA50202203-202407

main69770-YK020iMXXA50..B,E;AXXH52,MXXH50202407

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-07040iAXXA50,MXXA50201903-202202

main69770-07050iAXXA50,AXXH50,MXXA50202203-202407

main69770-YK020iMXXA50..B,E;AXXH52,MXXH50202407

74037BCOVER SUB-ASSY, REAR DOOR ARMREST, RH

main74037-07020-C0iAXXA50;AXXH50,MXXA50..B,G,Q201903-202202

BLACK,TRIM2#,4#

main74037-07020-C0iAXXH50,MXXA50..E202106-202202

BLACK,TRIM2#

main74037-07020-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,MARK 74037-07020

main74037-07030-C0iMXXA50..E202203-202407

BLACK,TRIM2#,4#

main74037-07030-C0iMXXA50..B,G;AXXA50,AXXH50202203-202407

BLACK,TRIM2#

main74037-07030-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,MARK 74037-07030

74038BCOVER SUB-ASSY, REAR DOOR ARMREST, LH

main74038-07020-C0iAXXA50,MXXA50201903-202202

BLACK,TRIM2#,4#

main74038-07020-C0iAXXH50,MXXA50..E202106-202202

BLACK,TRIM2#

main74038-07020-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,MARK 74038-07020

main74038-07030-C0iMXXA50..E202203-202407

BLACK,TRIM2#,4#

main74038-07030-C0iMXXA50..B,G;AXXA50,AXXH50202203-202407

BLACK,TRIM2#

main74038-07030-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,MARK 74038-07030

90107C0002

main90107-C0002

9014850003

main90148-50003

9014860083

main90148-60083

90148C0006

main90148-C0006

90167C0013

main90167-C0013

90189C0014

main90189-C0014

32 parts on this diagram · 1 diagram in section
