REAR DOOR PANEL & GLASS
58745BPROTECTOR, QUARTER PANEL, FRONT RH
58746BPROTECTOR, QUARTER PANEL, FRONT LH
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
(J)
(L)
67004PANEL SUB-ASSY, REAR DOOR, LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
67488CSEAL, REAR DOOR REAR GUIDE, LH
67812PAD, REAR DOOR SILENCER
67841BCOVER, REAR DOOR SERVICE HOLE
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH
67843DCLIP, REAR DOOR SERVICE HOLE
(J)
(L)
67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH
67845DSEAL, REAR DOOR FRONT OUTSIDE, RH
67846ASEAL, REAR DOOR FRONT OUTSIDE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67868GRETAINER, DOOR WEATHERSTRIP
67869DCLIP, DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
67895CWEATHERSTRIP, REAR DOOR, NO.3 RH
67896WEATHERSTRIP, REAR DOOR, NO.3 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68630CHECK ASSY, REAR DOOR
7503
75923CTAPE, BLACK OUT, NO.2 RH
0 OR 1PIECE,REF.ILL.
75924CTAPE, BLACK OUT, NO.2 LH
0 OR 1PIECE,REF.ILL.
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
0 OR 1PIECE,REF.ILL.
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
0 OR 1PIECE,REF.ILL.
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
0 OR 1PIECE,REF.ILL.
75988CSTRIPE, REAR DOOR, OUTSIDE LH
0 OR 1PIECE,REF.ILL.
90109C0028
main90109-C0028
9011906983
90119C0099
main90119-C0099
9016140030
90161C0001
main90161-C0001
90178C0032
main90178-C0032
9033325001
9095001841
9095001956
9095006105
9095006115
90950C1011
main90950-C1011

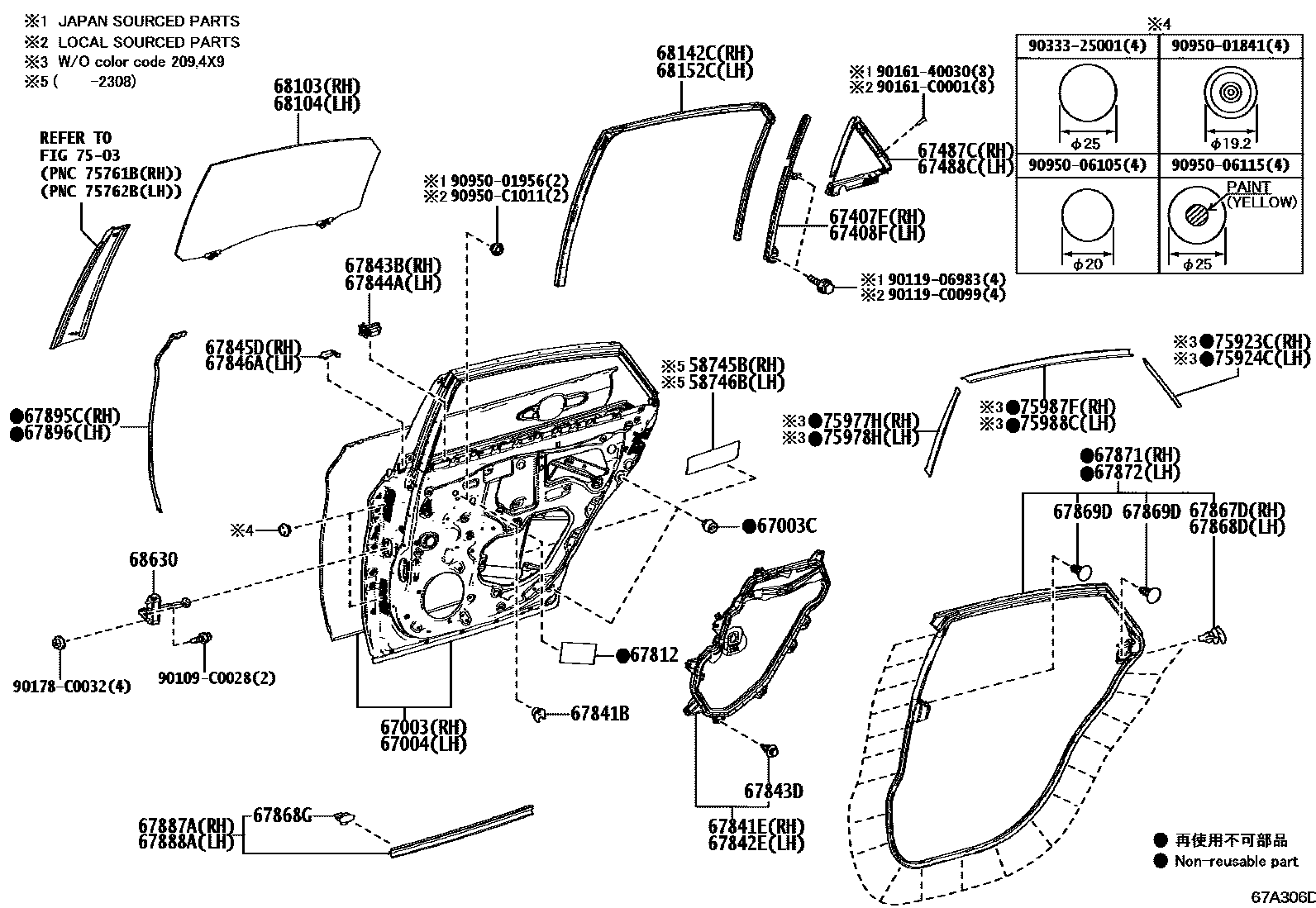

52 parts on this diagram · 3 diagrams in section
