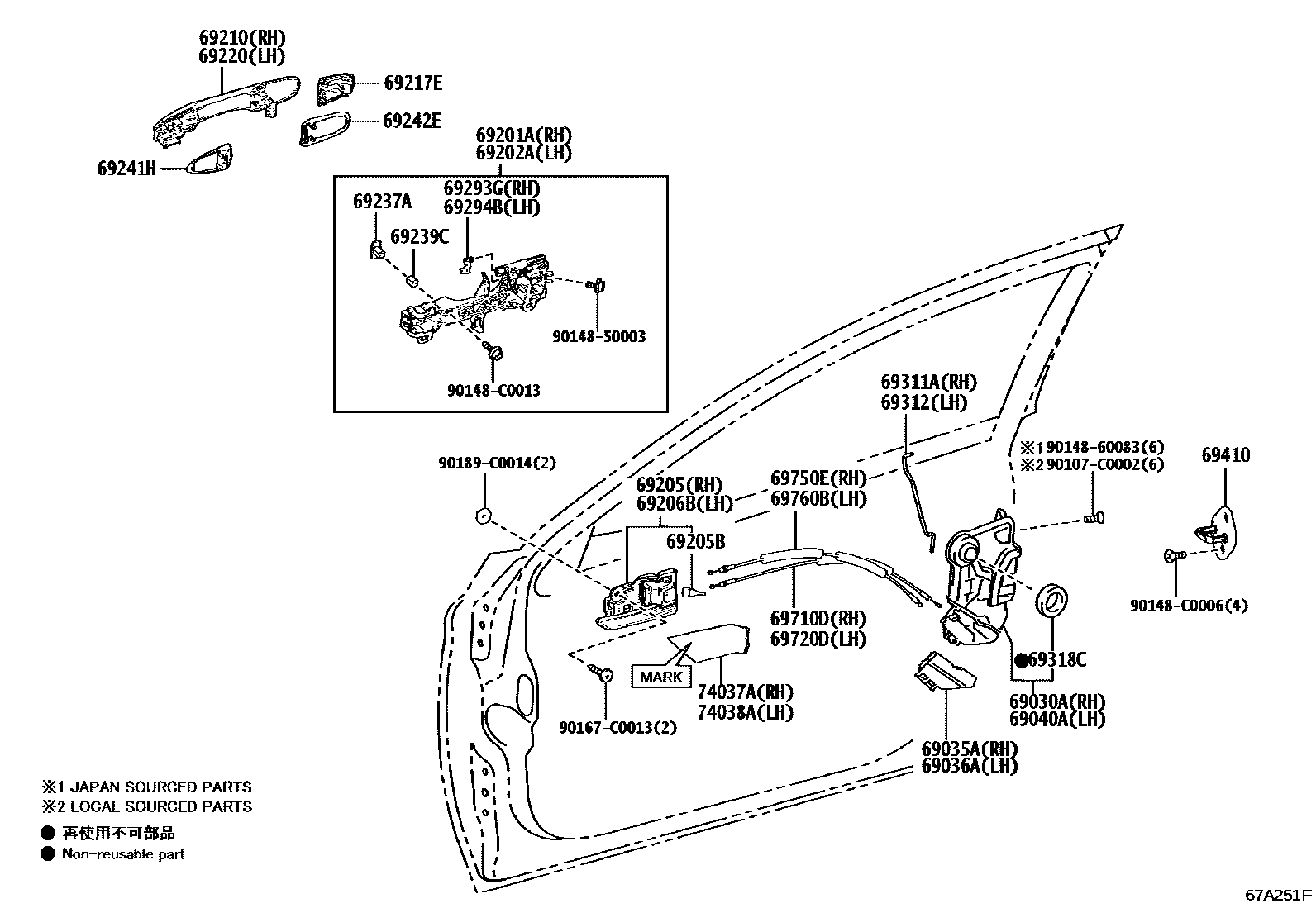

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02620iAXXA50,MXXA50201903-202407

main69030-02680iMXXA50..B,E;AXXH52,MXXH50202407

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02060iMXXA50..B,E201903-202407

main69035-0R010iMXXA50..B,E;AXXH52,MXXH50202407

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02060iAXXH50201903-202407

main69036-0R010iMXXA50..B,E;AXXH52,MXXH50202407

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02590iMXXA50..G;AXXA50,AXXH50201903-202407

main69040-02620iMXXA50..B,E;AXXH52,MXXH50202407

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-07020iMXXA50..B,E;AXXH52,MXXH50202203-202407

main69201-07030iAXXA50,MXXA50201903-202203

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-07020iMXXA50..B,E201903-202407

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-07030-C0iMXXA50..E202106-202407

BLACK,TRIM2#

main69205-07030-C0iAXXA50,MXXA50201903-202407

BLACK,TRIM2#,4#

main69205-07030-C1iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iAXXA50,MXXA50201903-202407

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-07030-C0iAXXA50,MXXA50201903-202407

BLACK,TRIM2#,4#

main69206-07030-C0iAXXH50..E202106-202407

BLACK,TRIM2#

main69206-07030-C1iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-02450-A2iAXXH50..E202203-202407

PLATINUM WHITE PEARL MC.,089

main69210-02450-B2iAXXA50,MXXA50..E202203-202407

METAL STREAM ME,1K0

main69210-02450-C0iAXXH50..E202203-202407

BLACK MC.,209

main69210-02450-D1iAXXH50..E202203-202407

RED MC.,3T3

main69210-02450-E2iMXXA50..E202203-202407

BLACKISH BROWN MC.,4X9

main69210-02450-J1iAXXH50..E202203-202407

NEBULA BLUE ME.,8X2

main69210-02470iMXXA50..B202203-202407

PLATED

main69210-02470iAXXA50..E202203-202303

PLATED,B GRADE PACKAGE(WITH BACK MONITOR)

main69210-0A100-A0iMXXA50,MXXH50..E202407

PLATINUM WHITE PEARL MC.,089

main69210-0A100-B0iMXXA50,MXXH50..E202407

METAL STREAM ME,1K0

main69210-0A100-B4iMXXA50,MXXH50..E202407

PRECIOUS METAL,1L5

main69210-0A100-C0iMXXA50,MXXH50..E202407

BLACK MC.,209

main69210-0A100-E2iMXXA50,MXXH50..E202407

BLACKISH BROWN MC.,4X9

main69210-0A100-G2iMXXA50,MXXH50..E202407

BLACKISH GREEN CS.GF.,6X8

main69210-0E290iMXXA50..B;AXXH52,MXXH50..B,G,Q202304

main69211-07020-A0iAXXH50..E201903-202107

WHITE PEARL CS.,070

main69211-07020-A2iAXXH50..E202106-202203

PLATINUM WHITE PEARL MC.,089

main69211-07020-B0iAXXH50..E201903-202203

METAL STREAM ME,1K0

main69211-07020-C0iAXXH50..E201903-202203

BLACK MC.,209

main69211-07020-D0iAXXH50..E201903-202203

RED MC.,3T3

main69211-07020-E0iAXXA50,MXXA50..E201903-202107

DK. BROWN M.M.,4U3

main69211-07020-E1iAXXH50..E201903-202203

BLACKISH BROWN MC.,4X9

main69211-07020-J1iAXXH50..E202106-202203

NEBULA BLUE ME.,8X2

main69211-07030iAXXA50..E201903-202203

PLATED

main69211-07030iAXXA50,AXXH50,MXXA50..B,G,Q202106-202203

PLATED,B GRADE PACKAGE(WITH BACK MONITOR)

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-02510iMXXA50..B,E;AXXH52,MXXH50202203-202407

main69217-07040iAXXA50,MXXA50201903-202203

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-07040-A0iAXXA50,MXXA50..E201903-202107

WHITE PEARL CS.,070

main69210-07040-A2iAXXA50,MXXA50..E202106-202407

PLATINUM WHITE PEARL MC.,089

main69210-07040-B0iAXXH50..E201903-202407

METAL STREAM ME,1K0

main69210-07040-C0iAXXH50..E201903-202407

BLACK MC.,209

main69210-07040-D0iAXXH50..E201903-202407

RED MC.,3T3

main69210-07040-E0iAXXA50,MXXA50..E201903-202107

DK. BROWN M.M.,4U3

main69210-07040-E1iAXXH50..E201903-202407

BLACKISH BROWN MC.,4X9

main69210-07040-J1iMXXA50..E202106-202407

NEBULA BLUE ME.,8X2

main69210-07050iAXXA50,AXXH50..B,G,Q201903-201904

PLATED

sub69210-07051

main69210-07051iAXXA50..E201905-202407

PLATED

main69210-07051iAXXA50,AXXH50,MXXA50..B,G,Q202106-202303

PLATED,B GRADE PACKAGE(WITH BACK MONITOR)

main69210-0A090-A0iMXXA50,MXXH50..E202407

PLATINUM WHITE PEARL MC.,089

main69210-0A090-B0iMXXA50,MXXH50..E202407

METAL STREAM ME,1K0

main69210-0A090-B4iMXXA50,MXXH50..E202407

PRECIOUS METAL,1L5

main69210-0A090-C0iMXXA50,MXXH50..E202407

BLACK MC.,209

main69210-0A090-E2iMXXA50,MXXH50..E202407

BLACKISH BROWN MC.,4X9

main69210-0A090-G2iMXXA50,MXXH50..E202407

BLACKISH GREEN CS.GF.,6X8

main69210-0E280iMXXA50..B;AXXH52,MXXH50..B,G,Q202304

69237ANUT, FRONT DOOR HANDLE

main69237-06030iAXXA50,MXXA50201903-202203

RH

main69237-F4030iMXXA50..B,E;AXXH52,MXXH50202304-202407

main69237-F4030iAXXA50,MXXA50201903-202303

LH

main69237-F4030iAXXA50,AXXH50,MXXA50202203-202303

RH

69239CBUSH, FRONT DOOR HANDLE

main69239-07020iAXXA50,MXXA50201903-202303

LH

main69239-07020iAXXA50,AXXH50,MXXA50202203-202303

RH

main69239-07020iMXXA50..B,E202304-202407

main69239-07030iAXXA50,MXXA50201903-202203

RH

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-07020iAXXA50,MXXA50201903-202407

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-07020iAXXH50..E201903-202407

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-02090iAXXA50,AXXH50,MXXA50202203-202407

main69293-33010iAXXH50201903-202203

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-07010iAXXA50,MXXA50201903-202407

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-07040iAXXA50,MXXA50;AXXH50..B,G,Q201903-202407

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-07040iAXXA50,MXXA50201903-202407

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iAXXA50,MXXA50201903-202407

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D020iMXXA50..G;AXXA50,AXXH50201903-202407

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-07030iAXXA50,AXXH50,MXXA50201903-202202

main69710-07040iMXXA50..G;AXXA50,AXXH50202203-202407

main69710-YK010iMXXA50..B,E;AXXH52,MXXH50202407

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-07030iAXXA50,AXXH50,MXXA50201903-202202

main69710-07040iMXXA50..G;AXXA50,AXXH50202203-202407

main69710-YK010iMXXA50..B,E;AXXH52,MXXH50202407

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-07030iAXXA50,AXXH50,MXXA50201903-202202

main69750-07040iAXXA50,AXXH50,MXXA50202203-202407

main69750-YK010iMXXA50..B,E;AXXH52,MXXH50202407

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-07030iAXXA50,MXXA50201903-202202

main69750-07040iAXXA50,AXXH50,MXXA50202203-202407

main69750-YK010iMXXA50..B,E;AXXH52,MXXH50202407

74037ACOVER SUB-ASSY, FRONT DOOR ARMREST, RH

main74037-07020-C0iAXXA50,MXXA50201903-202202

BLACK,TRIM2#,4#

main74037-07020-C0iAXXH50,MXXA50..E202106-202202

BLACK,TRIM2#

main74037-07020-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,MARK 74037-07020

main74037-07030-C0iMXXA50..B202203-202407

BLACK,TRIM2#,4#

main74037-07030-C0iMXXA50..E202203-202407

BLACK,TRIM2#

main74037-07030-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,MARK 74037-07030

74038ACOVER SUB-ASSY, FRONT DOOR ARMREST, LH

main74038-07020-C0iAXXA50;AXXH50,MXXA50..B,G,Q201903-202202

BLACK,TRIM2#,4#

main74038-07020-C0iAXXH50,MXXA50..E202106-202202

BLACK,TRIM2#

main74038-07020-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,MARK 74038-07020

main74038-07030-C0iMXXA50..B202203-202407

BLACK,TRIM2#

main74038-07030-C0iMXXA50..B202203-202407

BLACK,TRIM2#,4#

main74038-07030-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,MARK 74038-07030

90107C0002

main90107-C0002

9014850003

main90148-50003

9014860083

main90148-60083

90148C0006

main90148-C0006

90148C0013

main90148-C0013

90167C0013

main90167-C0013

90189C0014

main90189-C0014

35 parts on this diagram · 1 diagram in section
