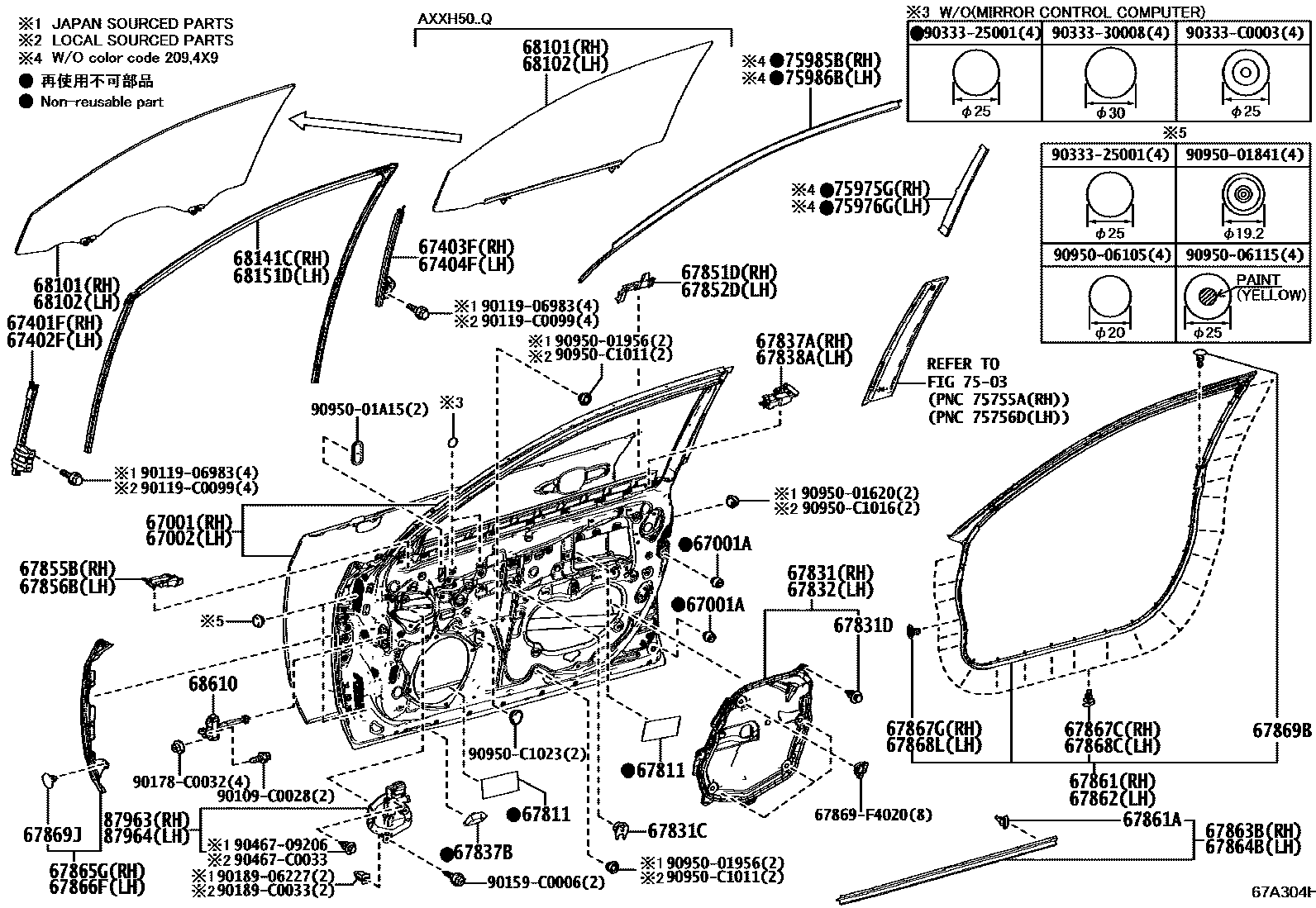

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-07060iAXXA50,MXXA50201903-202407

main67001-YK030iMXXA50..B,E;AXXH52,MXXH50202407

67001ACUSHION, FRONT DOOR PANEL

main90541-09143iAXXH50..E¥100201909-202407

(J)

main90541-09143iAXXA50,AXXH50¥100201903-201909

main90541-C0008iAXXA50,MXXA50201909-202407

(L)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-07070iMXXA50..G;AXXA50,AXXH50201903-202407

main67002-YK030iMXXA50..B,E;AXXH52,MXXH50202407

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-07020iAXXH50201903-202407

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-07020iAXXA50,MXXA50201903-202407

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-07030iAXXA50,MXXA50201903-202407

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-07030iAXXA50,MXXA50201903-202407

67811PAD, FRONT DOOR SILENCER

main67811-02390iAXXA50,MXXA50201903-202407

main67811-YK010iMXXA50..B,E;AXXH52,MXXH50202407

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-07070iAXXA50,MXXA50201903-202407

67831CCOVER, FRONT DOOR SERVICE HOLE

main67833-F4020iAXXA50,MXXA50201903-202407

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206iAXXA50,MXXA50¥80201903-202407

(J)

main90467-C0033iAXXA50,MXXA50201903-202407

(L)

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-07060iAXXA50,MXXA50201903-202407

67837ASEAL, FRONT DOOR VENT, RH

main67837-07020iAXXA50,MXXA50201903-202407

67837BSEAL, FRONT DOOR DUST PROOF

main67837-F4030iAXXA50,MXXA50201903-202407

67838ASEAL, FRONT DOOR VENT, LH

main67838-07020iAXXA50,MXXA50201903-202407

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-07010iAXXA50,MXXA50201903-202407

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-07010iAXXA50,MXXA50201903-202407

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-07030iAXXA50,MXXA50201903-202407

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-07030iAXXA50,MXXA50201903-202407

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-07030iMXXA50..G;AXXA50,AXXH50201903-202407

main67861-07040iMXXA50..B,E;AXXH52,MXXH50202407

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-52010iAXXH50..E¥100201903-202407

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-07030iAXXH50201903-202407

main67862-07040iMXXA50..B,E;AXXH52,MXXH50202407

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-07030iAXXH50201903-202407

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67863-07030iAXXH50201903-202407

67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-07020iAXXH50201903-202407

67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-07020iAXXA50,MXXA50201903-202407

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iAXXH50¥100201903-202407

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52020iAXXA50,MXXA50¥100201903-202407

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iAXXA50,MXXA50¥100201903-202407

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52020iAXXA50,MXXA50¥100201903-202407

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67868-30030iAXXA50,MXXA50¥190201903-202407

67869JCLIP, FRONT DOOR WEATHERSTRIP

main90467-06195iAXXH50..E¥60201903-202407

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-07060iMXXA50..G;AXXA50,AXXH50..B,E,G201903-202407

main68101-07070iAXXH50..Q201903-202303

main68101-YK020iMXXA50,MXXH50..E202407

main68101-YK030iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-07060iAXXH50..E201903-202407

main68102-07070iAXXH50..Q201903-202303

main68102-YK020iMXXA50,MXXH50..E202407

main68102-YK030iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

68141CRUN, FRONT DOOR GLASS, RH

main68141-07040iAXXA50,MXXA50;AXXH50..B,G,Q201903-202407

68151DRUN, FRONT DOOR GLASS, LH

main68151-07040iAXXA50,MXXA50201903-202407

68610CHECK ASSY, FRONT DOOR

main68610-07040iAXXA50,MXXA50201903-202407

7503

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-07030iAXXA50,MXXA50201903-202407

0 OR 1PIECE,REF.ILL.

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-07030iAXXA50,MXXA50201903-202407

0 OR 1PIECE,REF.ILL.

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-07030iAXXA50,MXXA50201903-202407

0 OR 1PIECE,REF.ILL.

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-07030iAXXA50,MXXA50201903-202407

0 OR 1PIECE,REF.ILL.

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-07020iAXXA50,MXXA50201903-202407

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-07020iAXXA50,MXXA50201903-202407

67869F4020PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-F4020

90109C0028

main90109-C0028

9011906983

main90119-06983¥60

90119C0099

main90119-C0099

90159C0006

main90159-C0006

90178C0032

main90178-C0032

9018906227

main90189-06227¥70

90189C0033

main90189-C0033

9033325001

main90333-25001¥140

9033330008

main90333-30008¥70

90333C0003

main90333-C0003

9046709206

main90467-09206¥80

90467C0033

main90467-C0033

9095001620

main90950-01620¥110

9095001841

main90950-01841¥110

9095001956

main90950-01956¥100

9095001A15

main90950-01A15¥120

9095006105

main90950-06105¥110

9095006115

main90950-06115¥110

90950C1011

main90950-C1011

90950C1016

main90950-C1016

90950C1023

main90950-C1023

66 parts on this diagram · 3 diagrams in section
