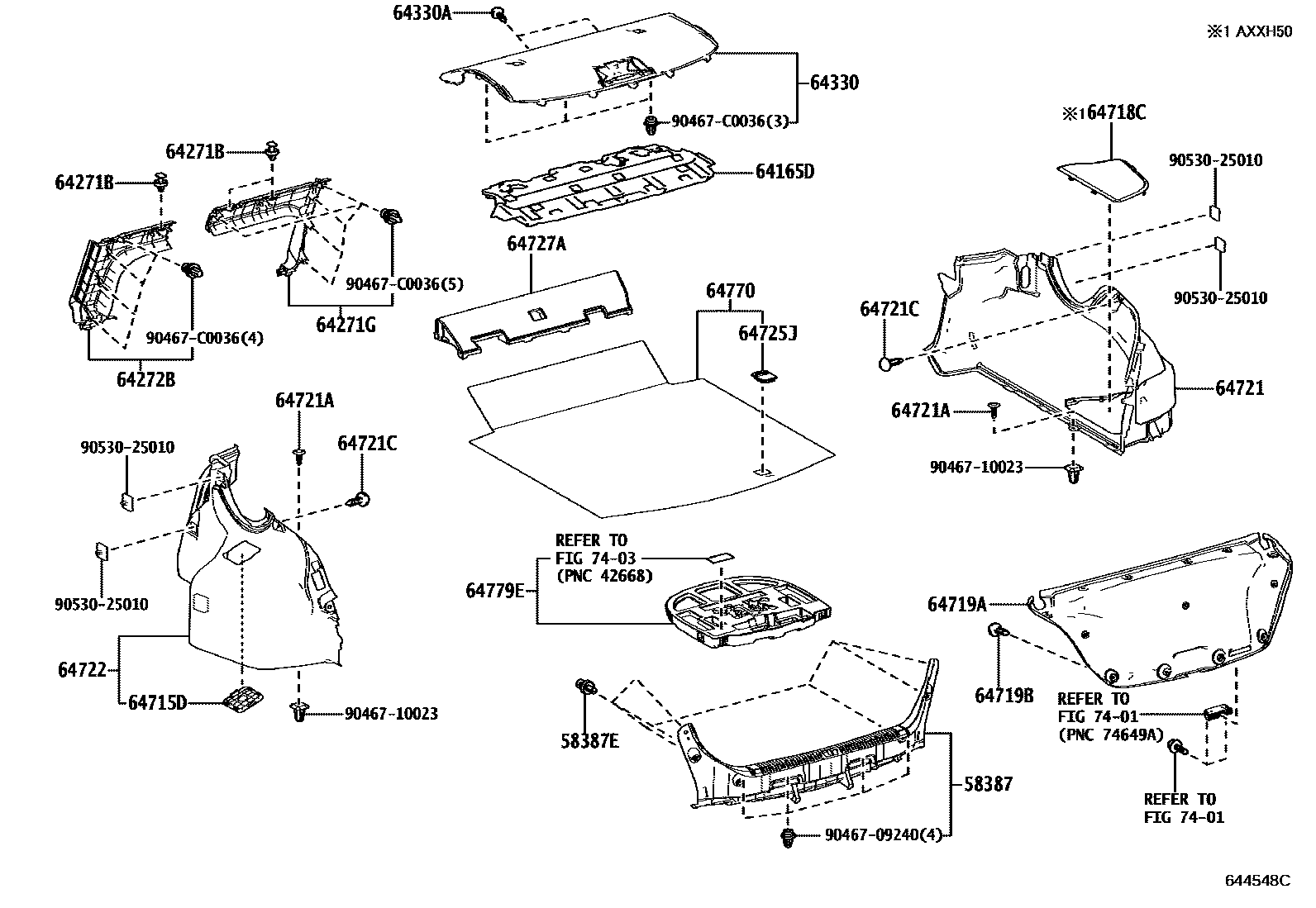

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1W(FOLD TYPE REAR SEAT) 0002 1W(FIX TYPE REAR SEAT) 0003 1W(FOLD TYPE REAR SEAT) 0004 1W(FIX TYPE REAR SEAT)

58387PLATE, REAR FLOOR FINISH

main58387-07030-C0iMXXA50..E201903-202407

BLACK,TRIM2#,4#

main58387-07030-C0iAXXA50;AXXH50,MXXA50..B,G,Q202106-202407

BLACK,TRIM2#

main58387-07030-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-C0043iAXXA50,MXXA50201903-202407

64165DCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-07080iAXXH50..E201903-202303

main64165-07090iAXXH50..Q201903-202303

main64165-07140iAXXH50..Q202304

main64165-07150iMXXA50..B,E202304-202407

main64165-YK010iMXXA50..B,E;AXXH52,MXXH50..B,E,G202407

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-C0045-C0iAXXA50..E201903-202407

BLACK

main90467-C0045-C0iAXXA50..E202106-202303

B GRADE PACKAGE(WITH BACK MONITOR),BLACK

main90467-C0045-C0iMXXA50..B;AXXH52,MXXH50202407

ENTRY PLUS PACKAGE,BLACK

64271GBOARD, ROOM PARTITION, RH

main64271-07010-C0iMXXA50..B;AXXH52,MXXH50202407

ENTRY PLUS PACKAGE,BLACK,TRIM1#,2#,4#

main64271-07010-C0iAXXA50,MXXA50..B,G201903-202407

BLACK,TRIM2#,4#

main64271-07010-C0iAXXA50,AXXH50,MXXA50..B,G202106-202303

B GRADE PACKAGE(WITH BACK MONITOR),BLACK,TRIM2#,4#

main64271-07010-C0iMXXA50..B;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

64272BBOARD, ROOM PARTITION, LH

main64272-07010-C0iAXXA50,AXXH50,MXXA50..B,G201903-202407

BLACK,TRIM2#,4#

main64272-07010-C0iAXXA50,AXXH50,MXXA50..B,G202106-202303

B GRADE PACKAGE(WITH BACK MONITOR),BLACK,TRIM2#,4#

main64272-07010-C0iMXXA50..E202407

ENTRY PLUS PACKAGE,BLACK,TRIM1#,2#,4#

main64272-07010-C0iMXXA50..B;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-07110-C0iAXXH50..Q202203-202303

BLACK,TRIM2#,4#

main64330-07120-C0iAXXH50..B,G201903-202202

BLACK,TRIM2#

main64330-07120-C0iAXXH50..B,G201903-202202

BLACK,TRIM2#,4#

main64330-07130-C0iAXXA50,MXXA50..E202203-202407

BLACK,TRIM2#

main64330-07130-C0iMXXA50..G;AXXA50,AXXH50..B,E,G202203-202407

BLACK,TRIM2#,4#

main64330-07140-C2iAXXH50..Q201903-202202

BLACK,TRIM2#,4#

main64330-YK030-C1iMXXA50..E202407

BLACK,TRIM2#

main64330-YK030-C1iMXXA50..E202407

BLACK,TRIM1#,2#,4#

main64330-YK040-C0iAXXH52,MXXH50..Q202407

BLACK,TRIM1#,2#,4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-C0016-C1iMXXA50..G;AXXA50,AXXH50..B,E,G201903-202407

BLACK

main90467-C0016-C1iAXXA50,AXXH50,MXXA50..B,G202106-202303

B GRADE PACKAGE(WITH BACK MONITOR),BLACK

main90467-C0016-C1iMXXA50..B;AXXH52,MXXH50202407

ENTRY PLUS PACKAGE,BLACK

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-07020-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

main64715-07020-C0iMXXA50..E202203-202407

BLACK,TRIM2#

main64715-07020-C0iMXXA50..E202203-202407

BLACK,TRIM2#,4#

main64715-07040-C0iMXXA50..E201903-202203

BLACK,TRIM2#

main64715-07040-C0iMXXA50..E201903-202203

BLACK,TRIM2#,4#

main64715-07050-C0iAXXH50..B,G,Q202107-202202

BLACK,TRIM2#

main64715-07050-C0iAXXH50..B,G,Q201912-202202

BLACK,TRIM2#,4#

main64715-07070-C0iAXXH50202203-202303

BLACK,TRIM2#,4#

64718CCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-07030-C0iAXXH50..B,G,Q201903-202202

BLACK,TRIM2#,4#

main64718-07030-C0iAXXH50..E201903-202202

BLACK,TRIM2#

main64718-07040-C0iAXXH50202203-202303

BLACK,TRIM2#,4#

main64718-07040-C0iAXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-07030-C0iAXXA50;AXXH50,MXXA50..B,G,Q202106-202202

BLACK,TRIM2#

main64719-07030-C0iAXXA50;AXXH50,MXXA50..B,G,Q201903-202202

BLACK,TRIM2#,4#

main64719-07040-C0iMXXA50..E202203-202407

BLACK,TRIM2#

main64719-07040-C0iMXXA50..E202203-202407

BLACK,TRIM2#,4#

main64719-07040-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-C0043iMXXA50..B,E;AXXH52,MXXH50201903-202407

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-07050-C0iMXXA50..E202106-202202

BLACK,TRIM2#

main64721-07050-C0iMXXA50..E201903-202202

BLACK,TRIM2#,4#

main64721-07060-C0iAXXH50..E202107-202202

BLACK,TRIM2#

main64721-07060-C0iAXXH50201903-202202

BLACK,TRIM2#,4#

main64721-07070-C0iAXXA50;MXXA50..G202203-202407

BLACK,TRIM2#,4#

main64721-07070-C0iMXXA50..E202203-202407

BLACK,TRIM2#

main64721-07070-C0iMXXA50..B,E202407

BLACK,TRIM1#,2#,4#

main64721-07080-C0iAXXH50202203-202303

BLACK,TRIM2#,4#

main64721-07080-C1iAXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-08222-C1iMXXA50..E201903-202308

BLACK,TRIM2#

main90467-08222-C1iMXXA50..E201903-202308

BLACK,TRIM2#,4#

main90467-08222-C1iMXXA50..E202308-202407

BLACK,TRIM2#,(J)

main90467-08222-C1iMXXA50..E202308-202407

BLACK,TRIM2#,4#,(J)

main90467-08222-C1iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

main90467-C0099-C0iMXXA50..B202308-202407

BLACK,TRIM2#,(L)

main90467-C0099-C0iMXXA50..B202308-202407

BLACK,TRIM2#,4#,(L)

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-C0045-C0iAXXA50;AXXH50,MXXA50..B,G,Q201903-202407

BLACK,TRIM2#

main90467-C0045-C0iMXXA50..E201903-202407

BLACK,TRIM2#,4#

main90467-C0045-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-07050-C0iMXXA50..E201903-202202

BLACK,TRIM2#

main64722-07050-C0iMXXA50..E201903-202202

BLACK,TRIM2#,4#

main64722-07060-C0iAXXH50..B,G,Q201912-202202

BLACK,TRIM2#

main64722-07060-C0iAXXH50..E201912-202202

BLACK,TRIM2#,4#

main64722-07080-C0iMXXA50..E202203-202407

BLACK,TRIM2#

main64722-07080-C0iMXXA50..E202203-202407

BLACK,TRIM2#,4#

main64722-07080-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

main64722-07090-C0iAXXH50202203-202303

BLACK,TRIM2#,4#

64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-07010-C0iAXXA50,MXXA50201903-202202

BLACK,TRIM2#,4#

main64725-07010-C0iAXXH50,MXXA50..E202106-202202

BLACK,TRIM2#

main64725-07020-C0iMXXA50..E202203-202407

BLACK,TRIM2#

main64725-07020-C0iAXXA50,AXXH50,MXXA50..B,G,Q202203-202407

BLACK,TRIM2#,4#

main64725-07020-C0iMXXA50..E202407

BLACK,TRIM1#,2#,4#

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-07030iAXXA50,AXXH50,MXXA50..B,G202106-202303

B GRADE PACKAGE(WITH BACK MONITOR)

main64727-07030iAXXH50..B,G201903-202407

main64727-YK010iMXXA50..B;AXXH52,MXXH50202407

ENTRY PLUS PACKAGE

64770COVER ASSY, SPARE WHEEL

main64770-07040-C0iAXXH50,MXXA50..E202106-202202

BLACK,TRIM2#

main64770-07040-C0iAXXA50,MXXA50..E201903-202202

BLACK,TRIM2#,4#

main64770-07050-C0iAXXH50..B,G201903-202202

BLACK,TRIM2#,4#

main64770-07050-C0iAXXA50,AXXH50,MXXA50..B,G202106-202202

B GRADE PACKAGE(WITH BACK MONITOR),BLACK,TRIM2#,4#

main64770-07060-C0iAXXA50,MXXA50..E202203-202303

BLACK,TRIM2#,4#

main64770-07060-C0iAXXH50..Q202203-202407

BLACK,TRIM2#

main64770-07070-C0iAXXA50..E202203-202407

BLACK,TRIM2#,4#

main64770-07070-C0iMXXA50..B;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

main64770-07070-C0iMXXA50..B;AXXH52,MXXH50202407

ENTRY PLUS PACKAGE,BLACK,TRIM1#,2#,4#

main64770-07070-C0iAXXA50,AXXH50,MXXA50..B,G202203-202303

B GRADE PACKAGE(WITH BACK MONITOR),BLACK,TRIM2#,4#

64779ETRAY, SPARE WHEEL COVER

main64779-07020iMXXA50..G;AXXA50,AXXH50201903-202407

main64779-YK010iMXXA50..B,E;AXXH52,MXXH50202407

7401

7403

9046709240

main90467-09240

9046710023

main90467-10023

90467C0036

main90467-C0036

9053025010

main90530-25010

26 parts on this diagram · 4 diagrams in section
