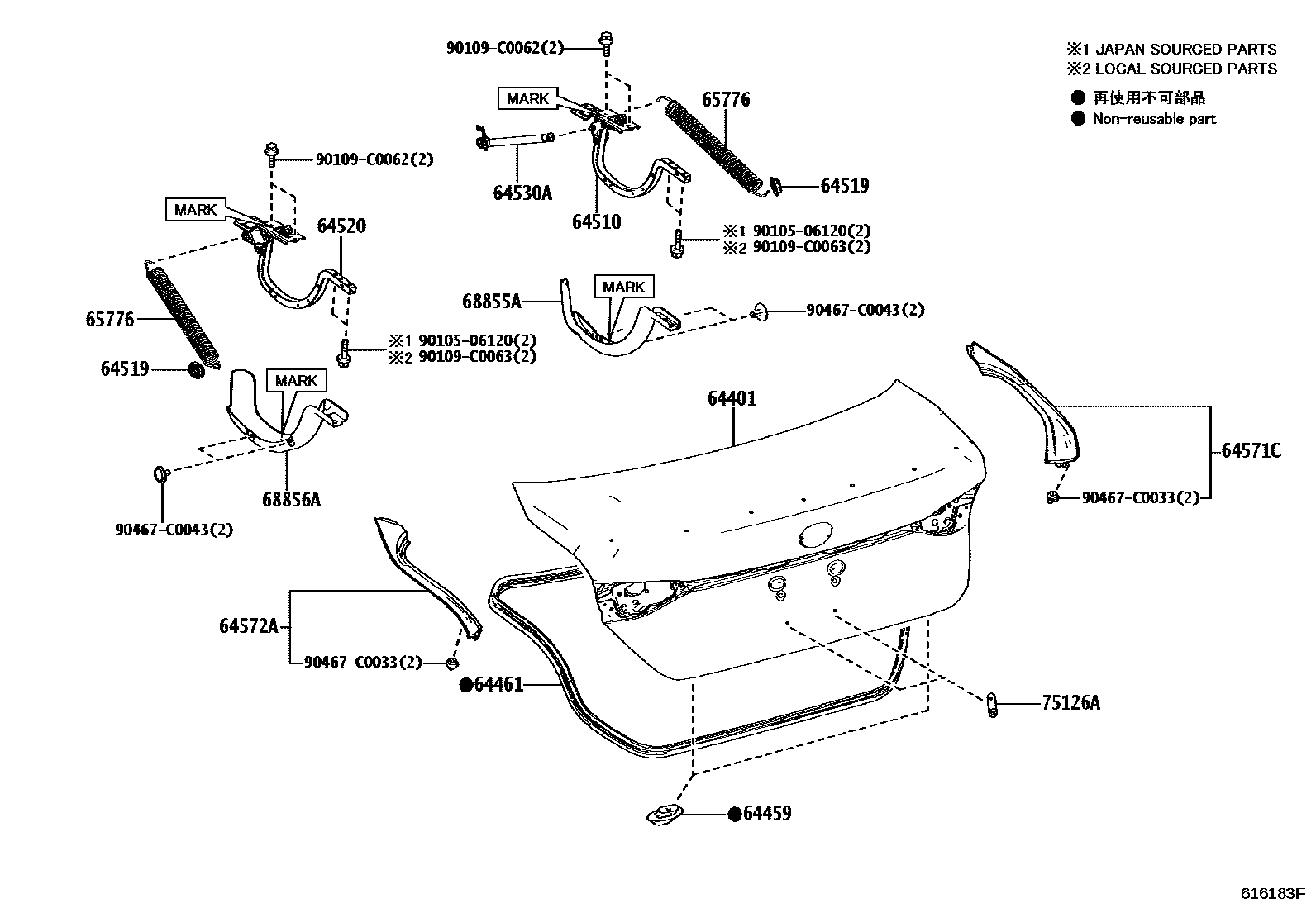

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1LUGGAGE COMPARTMENT DOOR PANE0002 1LUGGAGE COMPARTMENT DOOR LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-07250iMXXA50..B,E201903-202407

main64401-07260iAXXA50201903-202303

main64401-YK030iMXXH50;MXXA50..B,E202407

main64401-YK040iAXXH52202407

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-07010iMXXA50..B,E201903-202407

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-07070iAXXA50,AXXH50,MXXA50201903-202202

main64461-07080iMXXA50..G;AXXA50,AXXH50202203-202407

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-07050iAXXA50,MXXA50201903-202202

NO MARK

sub64510-07080

main64510-07060iAXXA50,MXXA50201903-202202

MARK +

sub64510-07090

main64510-07070iAXXA50,AXXH50,MXXA50201903-202202

MARK -

sub64510-07100

main64510-07080iAXXA50,AXXH50,MXXA50202203-202407

NO MARK

main64510-07080iMXXA50..B,E;AXXH52,MXXH50202407

64519BUSH, LUGGAGE DOOR HINGE SUPPORT

main64519-07030iAXXA50,MXXA50;AXXH50..B,G,Q201903-202407

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-07050iAXXA50,MXXA50201903-202202

NO MARK

sub64520-07080

main64520-07060iAXXA50,MXXA50201903-202202

MARK +

sub64520-07090

main64520-07070iAXXH50201903-202202

MARK -

sub64520-07100

main64520-07080iAXXA50,AXXH50,MXXA50202203-202407

NO MARK

main64520-07090iMXXA50..B,E;AXXH52,MXXH50202407

MARK +

main64520-07100iMXXA50..B,E;AXXH52,MXXH50202407

MARK -

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-07030iAXXA50,MXXA50201903-202407

64571CCOVER, LUGGAGE COMPARTMENT DOOR, RH

main64571-07030iAXXH50201903-202407

64572ACOVER, LUGGAGE COMPARTMENT DOOR, LH

main64572-07030iMXXA50..B,E201903-202407

65776SPRING, BACK DOOR STAY

main65776-07030iAXXA50201903-202303

main65776-07040iMXXH50;MXXA50..B,E201903-202407

68855APROTECTOR, BACK DOOR HINGE, UPPER RH

main82817-07600iAXXA50,MXXA50201903-202202

main82817-07600iMXXA50..B,E;AXXH52,MXXH50202407

MARK 82817-07600

main82817-07630iMXXA50..B,E202203-202407

main82817-07630iMXXA50..B,E;AXXH52,MXXH50202407

MARK 82817-07630

68856APROTECTOR, BACK DOOR HINGE, UPPER LH

main82818-07030iAXXA50,MXXA50201903-202202

main82818-07030iMXXA50..B,E;AXXH52,MXXH50202407

MARK 82818-07030

main82818-07040iAXXA50,AXXH50,MXXA50202203-202407

main82818-07040iMXXA50..B,E;AXXH52,MXXH50202407

MARK 82818-07040

75126APLATE, REAR LICENSE PLATE BRACKET SUPPORT

main75126-0N010iAXXA50,MXXA50201903-202407

9010506120

main90105-06120

90109C0062

main90109-C0062

90109C0063

main90109-C0063

90467C0033

main90467-C0033

90467C0043

main90467-C0043

18 parts on this diagram · 2 diagrams in section
