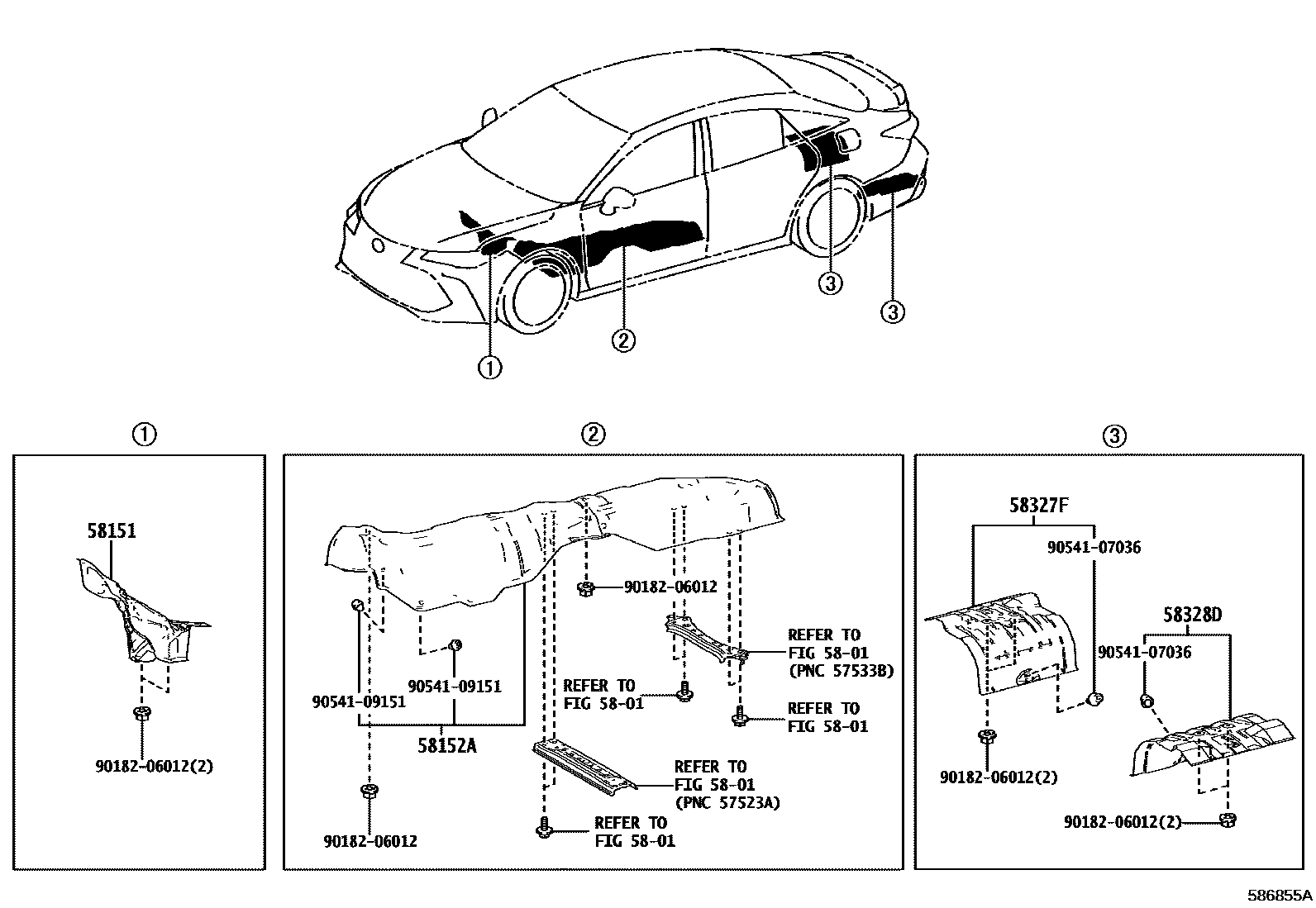

FLOOR INSULATOR

0001 1 0002 1

5801

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-07010iAXXA50,MXXA50201903-202202

main58151-07020iAXXA50,AXXH50,MXXA50202203-202206

sub58151-07021

main58151-07021iAXXA50,AXXH50,MXXA50202207-202407

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-07030iAXXA50,MXXA50201903-202206

sub58152-07031

main58152-07031iAXXA50,AXXH50,MXXA50202207-202407

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-07020iAXXA50,MXXA50201903-202407

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58327-07020iAXXA50,MXXA50201903-202407

9018206012

main90182-06012

9054107036

main90541-07036

9054109151

main90541-09151

8 parts on this diagram · 2 diagrams in section
