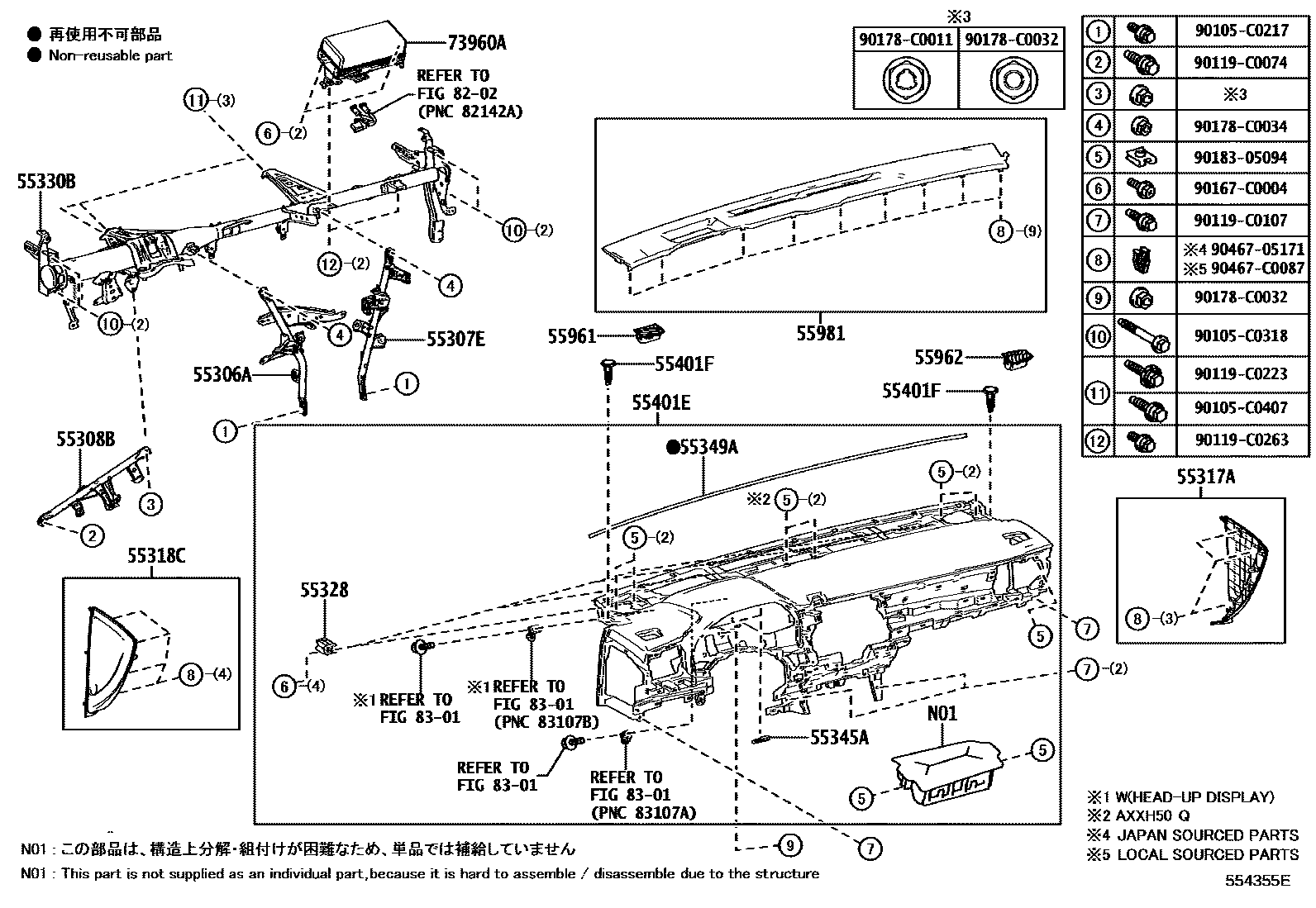

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-07070iAXXA50,MXXA50201903-202203

main55306-07071iAXXA50,AXXH50,MXXA50202203-202407

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-07070iAXXA50,MXXA50201903-202203

main55307-07071iAXXA50,AXXH50,MXXA50202203-202407

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-07020iAXXA50,MXXA50201903-202407

55317APANEL, INSTRUMENT SIDE, RH

main55317-07060-C0iMXXA50..B201903-202407

BLACK,TRIM2#,4#

main55317-07060-C0iAXXH50..E202106-202407

BLACK,TRIM2#

main55317-07060-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-07060-C0iAXXA50,MXXA50201903-202407

BLACK,TRIM2#,4#

main55318-07060-C0iAXXH50..E202106-202407

BLACK,TRIM2#

main55318-07060-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-07080iAXXA50,MXXA50202103-202303

main55328-07080iMXXA50..B,E202304-202407

(L)

main55328-0E100iAXXA50,AXXH50,MXXA50201903-202103

main55328-12430iAXXA50;MXXA50..G202304-202407

(J)

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-07090iAXXA50,MXXA50201903-202407

main55330-YK010iMXXA50..B,E;AXXH52,MXXH50202407

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iAXXA50,MXXA50;AXXH50..B,G,Q201903-202407

55349ACUSHION, INSTRUMENT PANEL

main55349-07080iAXXH50201903-202407

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-07140-B0iAXXA50..G202008-202106

NEUTRAL WARM GRAY,TRIM43

main55401-07140-C0iAXXA50..G201903-202106

BLACK,TRIM2#,4#

main55401-07140-C0iAXXA50..G202008-202106

BLACK,TRIM2#,40

main55401-07150-B0iAXXH50..Q201903-202107

NEUTRAL WARM GRAY,TRIM43

main55401-07150-C0iAXXH50..Q201903-202107

BLACK,TRIM2#,40

main55401-07160-B0iAXXH50..G202008-202107

NEUTRAL WARM GRAY,TRIM43

main55401-07160-C0iAXXH50..E201903-202107

BLACK,TRIM2#,4#

main55401-07160-C0iAXXH50..B201903-202107

BLACK,TRIM2#

main55401-07160-C0iAXXH50..G202008-202107

BLACK,TRIM2#,40

main55401-07170-B0iAXXA50,MXXA50..G202106-202203

NEUTRAL WARM GRAY,TRIM43

main55401-07170-C0iMXXA50..E202106-202407

BLACK,TRIM2#

main55401-07170-C0iAXXA50..G202106-202203

BLACK,TRIM2#,40,43

main55401-07170-C0iAXXA50..G202106-202203

BLACK,TRIM2#,40

main55401-07170-C0iAXXA50,MXXA50..G202106-202407

BLACK,TRIM2#,4#

main55401-07170-C0iMXXA50,MXXH50..E202407

BLACK,TRIM1#,2#,4#

main55401-07180-B0iAXXH50..Q202107-202203

NEUTRAL WARM GRAY,TRIM43

main55401-07180-C0iAXXH50..Q202107-202203

BLACK,TRIM2#,40,43

main55401-07180-C0iAXXH50..Q202203-202303

BLACK,TRIM2#,4#

main55401-07190-B0iAXXH50..G202107-202203

NEUTRAL WARM GRAY,TRIM43

main55401-07190-C0iAXXH50..B,E,G202107-202303

BLACK,TRIM2#,4#

main55401-07190-C0iAXXH50..E202107-202202

BLACK,TRIM2#

main55401-07190-C0iAXXH50..G202107-202203

BLACK,TRIM2#,40,43

main55401-07190-C0iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

BLACK,TRIM1#,2#,4#

55401FCLIP(FOR SAFETY PAD)

main52161-02040iAXXH50201903-202407

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-07050-B0iAXXH50..G,Q201903-202203

NEUTRAL WARM GRAY,TRIM43

main55961-07050-C0iAXXA50,MXXA50..G201903-202407

BLACK,TRIM2#,4#

main55961-07050-C0iAXXA50,MXXA50..B,E201903-202203

BLACK,TRIM2#,40

main55961-07050-C0iAXXH50..E202106-202407

BLACK,TRIM2#

main55961-07050-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

main55961-07050-C0iAXXA50,AXXH50..G,Q202106-202203

BLACK,TRIM2#,40,43

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-07050-B0iAXXA50,AXXH50,MXXA50..G,Q201903-202203

NEUTRAL WARM GRAY,TRIM43

main55962-07050-C0iAXXA50,AXXH50,MXXA50..G,Q201903-202407

BLACK,TRIM2#,4#

main55962-07050-C0iAXXA50,MXXA50..G201903-202203

BLACK,TRIM2#,40

main55962-07050-C0iAXXH50..E202106-202407

BLACK,TRIM2#

main55962-07050-C0iAXXA50,AXXH50..G,Q202106-202203

BLACK,TRIM2#,40,43

main55962-07050-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-07070-B0iAXXA50,MXXA50..G202008-202203

NEUTRAL WARM GRAY,TRIM43

main55981-07070-C0iMXXA50..E202106-202407

BLACK,TRIM2#

main55981-07070-C0iAXXA50..G201903-202407

BLACK,TRIM2#,4#

main55981-07070-C0iAXXA50..G202008-202203

BLACK,TRIM2#,40

main55981-07070-C0iAXXA50..G202106-202203

BLACK,TRIM2#,40,43

main55981-07070-C0iMXXA50,MXXH50..E202407

BLACK,TRIM1#,2#,4#

main55981-07080-B0iAXXH50..G202008-202203

NEUTRAL WARM GRAY,TRIM43

main55981-07080-C0iAXXH50..G202107-202203

BLACK,TRIM2#,40,43

main55981-07080-C0iAXXH50..E201903-202202

BLACK,TRIM2#

main55981-07080-C0iAXXH50..B201903-202303

BLACK,TRIM2#,4#

main55981-07080-C0iAXXH50..G202008-202107

BLACK,TRIM2#,40

main55981-07080-C0iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

BLACK,TRIM1#,2#,4#

main55981-07090-B0iAXXH50..Q201903-202203

NEUTRAL WARM GRAY,TRIM43

main55981-07090-C0iAXXH50..Q202107-202203

BLACK,TRIM2#,40,43

main55981-07090-C0iAXXH50..Q202203-202303

BLACK,TRIM2#,4#

main55981-07090-C0iAXXH50..Q201903-202107

BLACK,TRIM2#,40

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-07090iAXXA50,MXXA50;AXXH50..B,G,Q201903-202407

8202

8301

90105C0217

main90105-C0217

90105C0318

main90105-C0318

90105C0407

main90105-C0407

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0223

main90119-C0223

90119C0263

main90119-C0263

90167C0004

main90167-C0004

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9018305094

main90183-05094

9046705171

main90467-05171

90467C0087

main90467-C0087

31 parts on this diagram · 6 diagrams in section
