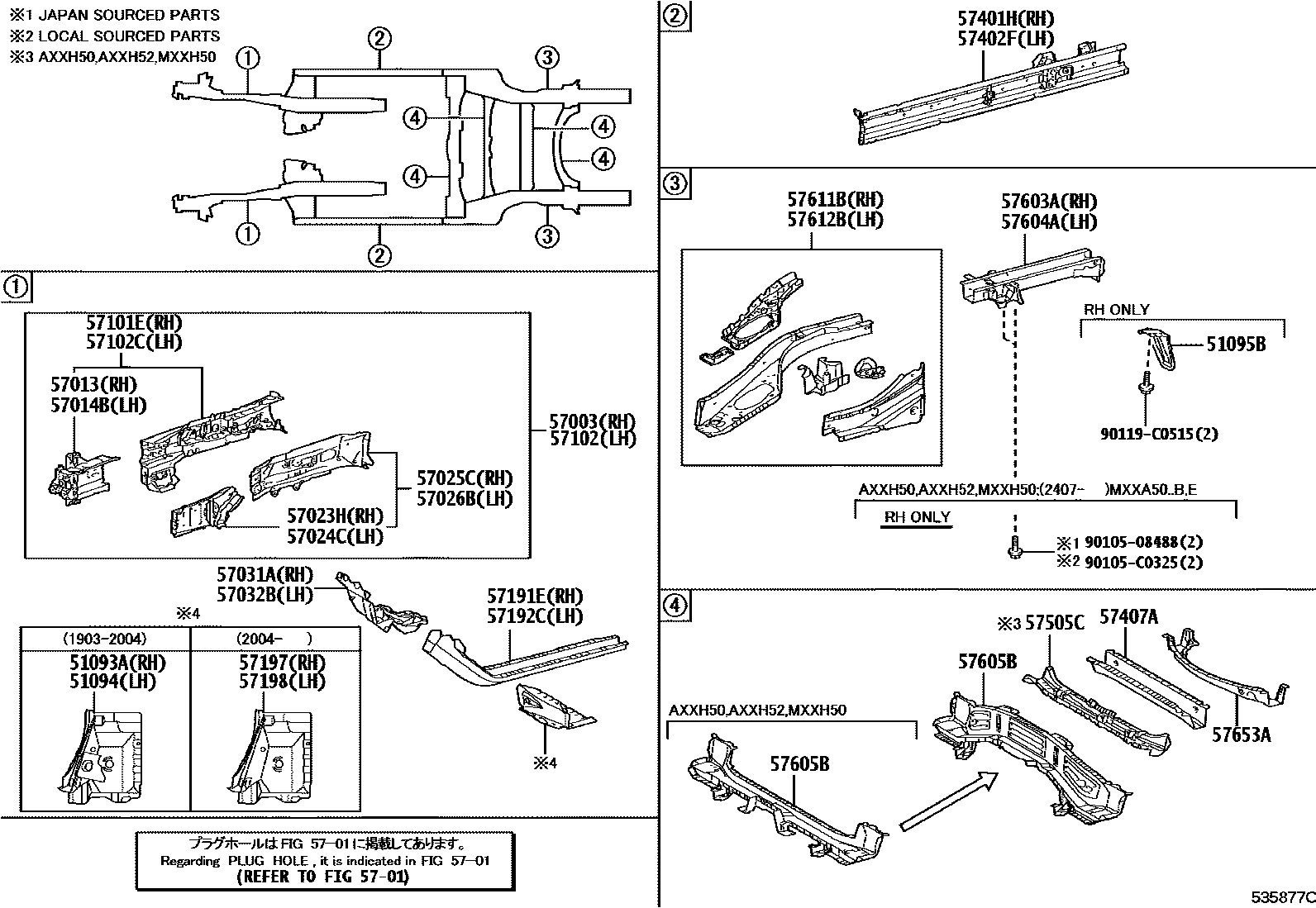

FLOOR SIDE MEMBER

51093AHOOK SUB-ASSY, TRANSPORT, FRONT RH

main51093-07010iAXXA50,AXXH50,MXXA50201903-202004

sub51093-33010¥3,150

51094HOOK SUB-ASSY, TRANSPORT, FRONT LH

main51094-07010iAXXA50,AXXH50,MXXA50201903-202004

sub51094-33010¥3,150

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-07010iAXXH50..E201903-202407

main51095-07020iMXXA50..B,E;AXXH52,MXXH50202407-202408

57003MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-07900iAXXH50201903-202407

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-07010iAXXA50,MXXA50201903-202403

sub57013-07011

main57013-07011iAXXA50,AXXH50,MXXA50202404

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-07010iAXXA50,MXXA50201903-202403

sub57014-07011

main57014-07011iAXXA50,AXXH50,MXXA50202404

57023HBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH

main57023-07010iAXXA50,MXXA50201903-202407

57024CBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH

main57024-07010iAXXA50,MXXA50201903-202407

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-07010iAXXH50..E201903-202407

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-07010iAXXA50,MXXA50201903-202407

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-07010iAXXA50,MXXA50201903-202407

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-07010iAXXA50,MXXA50201903-202407

57101EMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-07020iAXXA50,MXXA50201903-202407

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-07900iAXXA50,MXXA50201903-202407

57102CMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-07020iAXXA50,MXXA50201903-202407

57191EMEMBER SUB-ASSY, FRONT SIDE, INNER REAR RH

main57191-07010iMXXA50..G;AXXA50,AXXH50201903-202407

(L)

main57191-33020iMXXA50..B,E;AXXH52,MXXH50¥9,400201903-202407

(J)

57192CMEMBER SUB-ASSY, FRONT SIDE, INNER REAR LH

main57192-07010iAXXA50,MXXA50;AXXH50..B,G,Q201903-202407

(L)

main57192-33020iMXXA50..B,E;AXXH52,MXXH50¥9,400201903-202407

(J)

57197BOX, TORQUE, FRONT RH

main57197-07011iMXXA50..B,E202004-202407

57198BOX, TORQUE, FRONT LH

main57198-07011iAXXA50,MXXA50202004-202407

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-07070iAXXA50,MXXA50201903-202407

main57401-07080iMXXA50..B,E;AXXH52,MXXH50202407

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-07070iAXXA50,MXXA50201903-202407

main57402-07080iMXXA50..B,E;AXXH52,MXXH50202407

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-07010iAXXA50,AXXH50,MXXA50201903-202102

sub57407-07011

main57407-07011iAXXA50,MXXA50;AXXH50..B,G,Q202102-202407

57505CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-07010iAXXH50..E201903-202303

main57505-07020iAXXH52,MXXH50202407

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-07020iAXXA50,MXXA50201903-202408

main57603-07030iMXXA50..B,E;AXXH52,MXXH50202408

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-07030iAXXA50,MXXA50201903-202407

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-07040iMXXA50..B,E201903-202407

main57605-07050iAXXH50201903-202303

57611BMEMBER, REAR FLOOR SIDE, FRONT RH

main57611-07900iAXXA50,MXXA50201903-202303

57612BMEMBER, REAR FLOOR SIDE, FRONT LH

main57612-07900iAXXA50,MXXA50201903-202303

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-07010iAXXA50,MXXA50201903-202210

main57653-07011iMXXA50..G;AXXA50,AXXH50202210-202407

9010508488

main90105-08488¥80

90105C0325

main90105-C0325

90119C0515

main90119-C0515

33 parts on this diagram · 1 diagram in section
