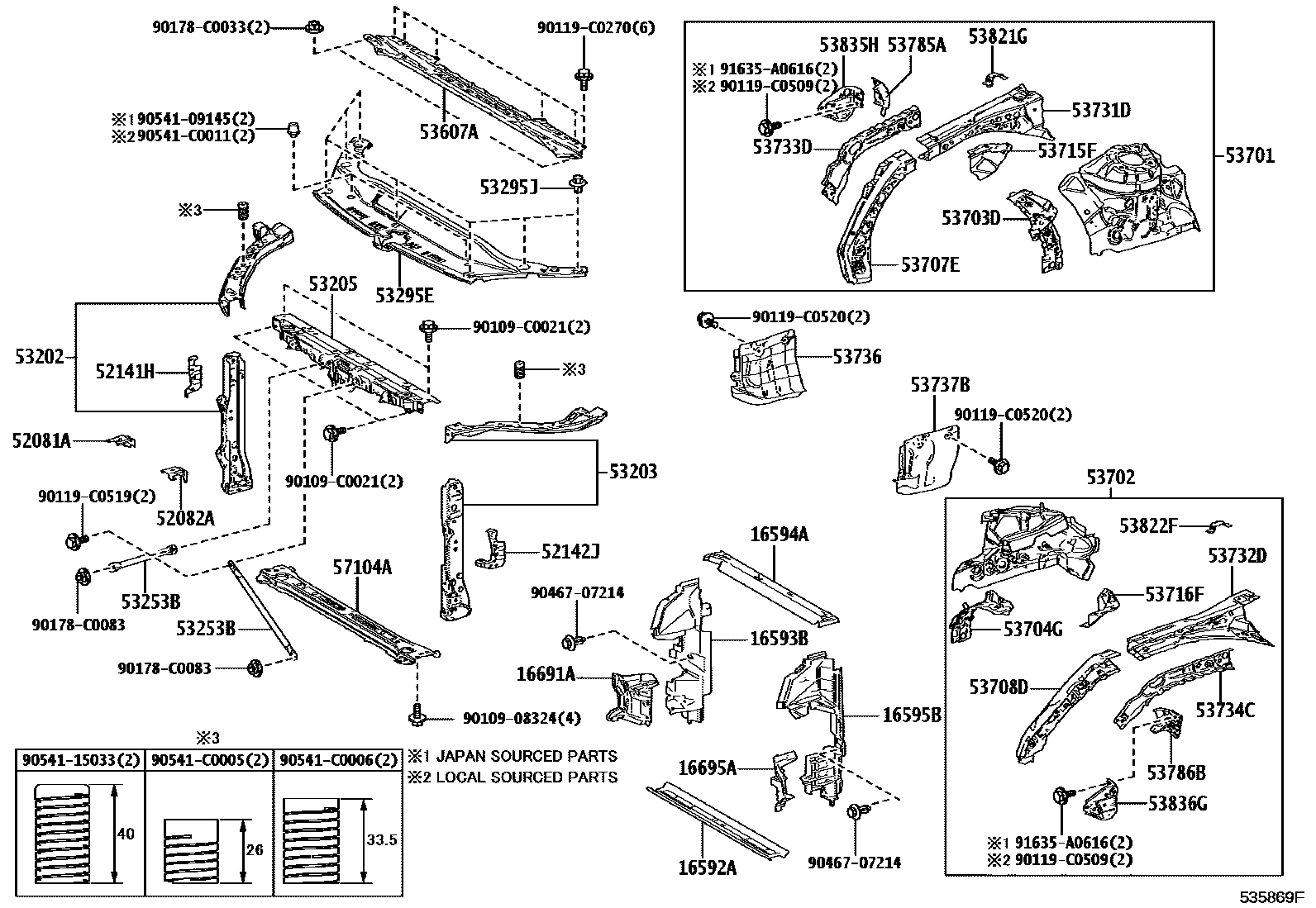

FRONT FENDER APRON & DASH PANEL

0001 1RADIATOR SUPPORT & FENDER APR0003 1RADIATOR SUPPORT & FENDER APR0004 1RADIATOR SUPPORT & FENDER APR0005 1AIRGUIDE & RADIATOR SUPPORT C0006 1RADIATOR SUPPORT & FENDER APR0007 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0100iA25..AXXH50201903-202407

main16592-F0250iM20..MXXA50..B,E202407

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F0040iA25,M20..AXXA50,MXXA50202203-202407

main16593-F0160iA25..AXXH50201903-202303

main16593-F0170iA25,M20..AXXA50,MXXA50201903-202203

main16593-F0680iA25,M20..AXXH52,MXXH50202407

main16593-F0690iM20..MXXA50..B,E202407

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F0090iA25..AXXH50..B,G,Q;A25,M20..AXXA50,MXXA50201903-202407

main16594-F0200iM20..MXXA50..B,E;A25,M20..AXXH52,MXXH50202407

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F0040iA25..AXXA50;M20..MXXA50..G202203-202407

main16595-F0160iA25,M20..AXXH52,MXXH50201903-202303

main16595-F0170iA25,M20..AXXA50,MXXA50201903-202203

main16595-F0700iM20..MXXA50..B,E202407

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-F0130iA25..AXXH50..B,G,Q;A25,M20..AXXA50,MXXA50201903-202203

main16691-F0280iA25,M20..AXXA50,AXXH50,MXXA50202203-202407

main16691-F0300iM20..MXXA50..B,E;A25,M20..AXXH52,MXXH50202407

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-F0130iA25,M20..AXXA50,MXXA50201903-202203

main16695-F0150iA25..AXXH50202104-202203

main16695-F0330iM20..MXXA50..G;A25..AXXA50,AXXH50202203-202407

main16695-F0380iM20..MXXA50..B,E;A25,M20..AXXH52,MXXH50202407

52081ASTAY SUB-ASSY, FRONT BUMPER, RH

main52081-07020iAXXA50,MXXA50;AXXH50..B,G,Q201903-202407

52082ASTAY SUB-ASSY, FRONT BUMPER, LH

main52082-07020iAXXA50,MXXA50201903-202407

52141HARM, FRONT BUMPER, UPPER RH

main52141-07050iMXXA50..B,E201903-202407

52142JARM, FRONT BUMPER, UPPER LH

main52142-07050iAXXA50,MXXA50201903-202407

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-07050iAXXH50..E201903-202407

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-07050iAXXA50,MXXA50201903-202407

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-07060iAXXA50,MXXA50201903-202407

53253BBRACKET, RADIATOR MOUNTING, UPPER

main53253-07010iAXXA50,MXXA50201903-202407

53295ESEAL, COOL AIR INTAKE DUCT

main53295-07050iAXXA50,MXXA50201903-202407

53295JCLIP, COOL AIR INTAKE DUCT SEAL

main90467-07217iMXXA50..G;AXXA50,AXXH50¥80202007-202407

(J)

main90467-07217iAXXA50,AXXH50,MXXA50¥80201903-202007

main90467-C0051iAXXH50..E202007-202407

(L)

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-07010iAXXA50,MXXA50201903-202407

main53607-07020iMXXA50..B,E;AXXH52,MXXH50202407

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-07060iMXXA50..G;AXXA50,AXXH50201903-202407

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-07060iAXXA50,MXXA50201903-202408

main53702-07070iAXXH52,MXXH50202407

53703DAPRON SUB-ASSY, FRONT FENDER, NO.2 RH

main53703-07020iAXXH50201903-202407

53704GAPRON SUB-ASSY, FRONT FENDER, NO.2 LH

main53704-07020iMXXA50..B,E;AXXH52,MXXH50201903-202407

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-07010iAXXH50201903-202407

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-07010iAXXA50,MXXA50201903-202407

53715FAPRON, FENDER SIDE, RH

main53715-07010iAXXA50,MXXA50201903-202407

53716FAPRON, FENDER SIDE, LH

main53716-07010iAXXA50,MXXA50201903-202407

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-07030iAXXA50,MXXA50201903-202407

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-07030iAXXA50,MXXA50201903-202407

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-07030iAXXA50,MXXA50201903-202407

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-07030iAXXA50,MXXA50201903-202407

53736SEAL, FRONT FENDER APRON, RH

main53736-07030iAXXA50,MXXA50201903-202407

53737BSEAL, FRONT FENDER APRON, LH

main53737-07010iAXXA50,MXXA50201903-202407

53785AGUSSET, FRONT FENDER APRON, UPPER RH

main53785-07010iAXXA50,MXXA50201903-202407

53786BGUSSET, FRONT FENDER APRON, UPPER LH

main53786-07010iAXXA50,MXXA50201903-202407

53821GBRACKET, FRONT FENDER, REAR RH

main53821-07050iAXXA50,MXXA50201903-202407

53822FBRACKET, FRONT FENDER, REAR LH

main53822-07030iAXXA50,MXXA50201903-202407

53835HBRACE, FRONT FENDER TO EXTENSION, RH

main53835-07040iAXXH50201903-202407

53836GBRACE, FRONT FENDER TO EXTENSION, LH

main53836-07050iAXXH50..E201903-202407

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-07030iAXXA50,MXXA50201903-202407

9010908324

main90109-08324¥80

90109C0021

main90109-C0021

90119C0270

main90119-C0270

90119C0509

main90119-C0509

90119C0519

main90119-C0519

90119C0520

main90119-C0520

90178C0033

main90178-C0033

90178C0083

main90178-C0083

9046707214

main90467-07214¥70

9054109145

main90541-09145¥160

9054115033

main90541-15033¥200

90541C0005

main90541-C0005

90541C0006

main90541-C0006

90541C0011

main90541-C0011

91635A0616

main91635-A0616¥60

53 parts on this diagram · 6 diagrams in section
