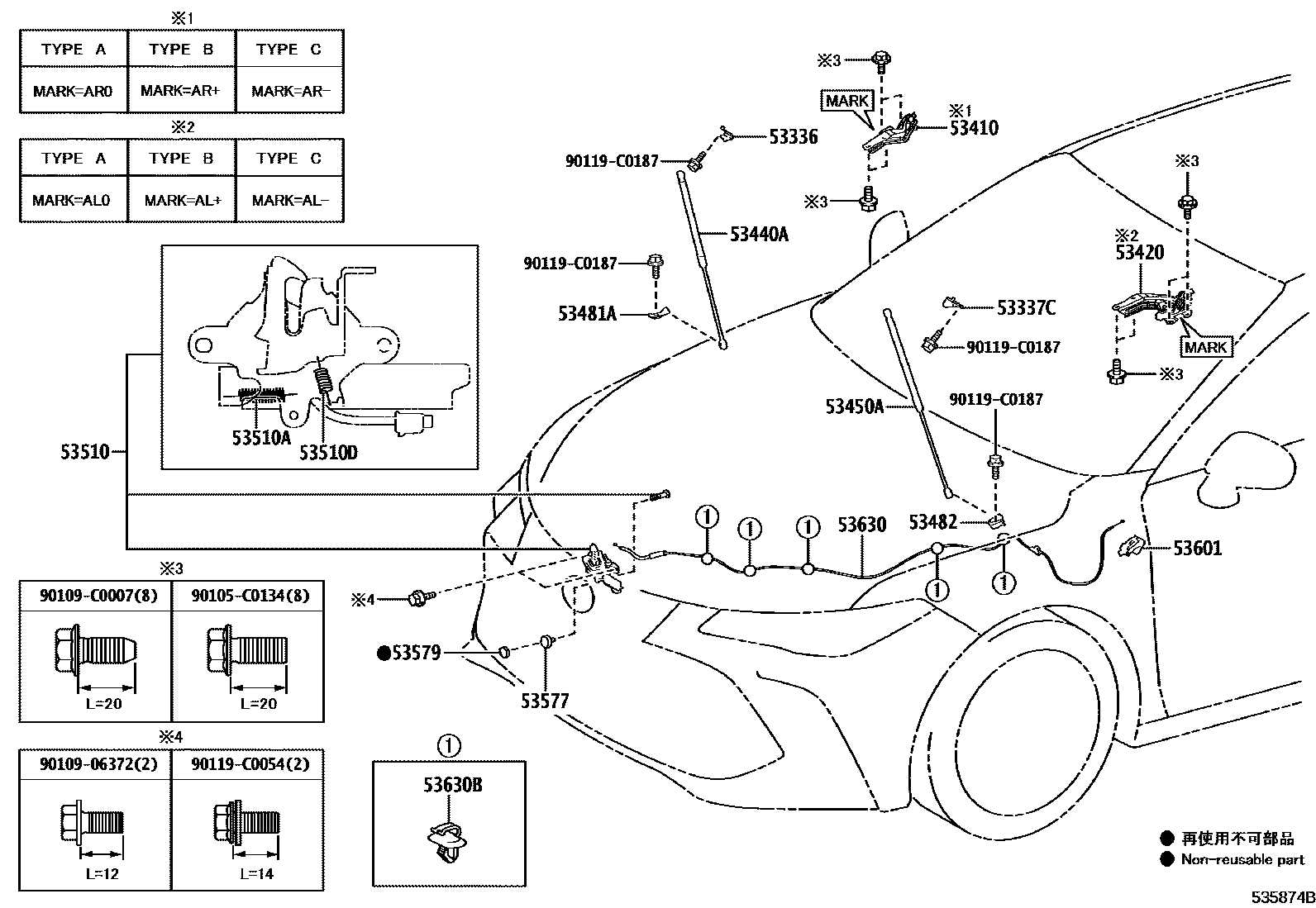

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337CBRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
53420HINGE ASSY, HOOD, LH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
53440ASUPPORT ASSY, HOOD, RH
53450ASUPPORT ASSY, HOOD, LH
53481ABRACKET, HOOD SUPPORT, RH
53482BRACKET, HOOD SUPPORT, LH
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53577BOLT, HOOD LOCK
53579CAP, HOOD LOCK NUT
(L)
(J)
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
90105C0134
main90105-C0134
9010906372
main90109-06372
90109C0007
main90109-C0007
90119C0054
main90119-C0054
90119C0187
main90119-C0187
21 parts on this diagram · 1 diagram in section
