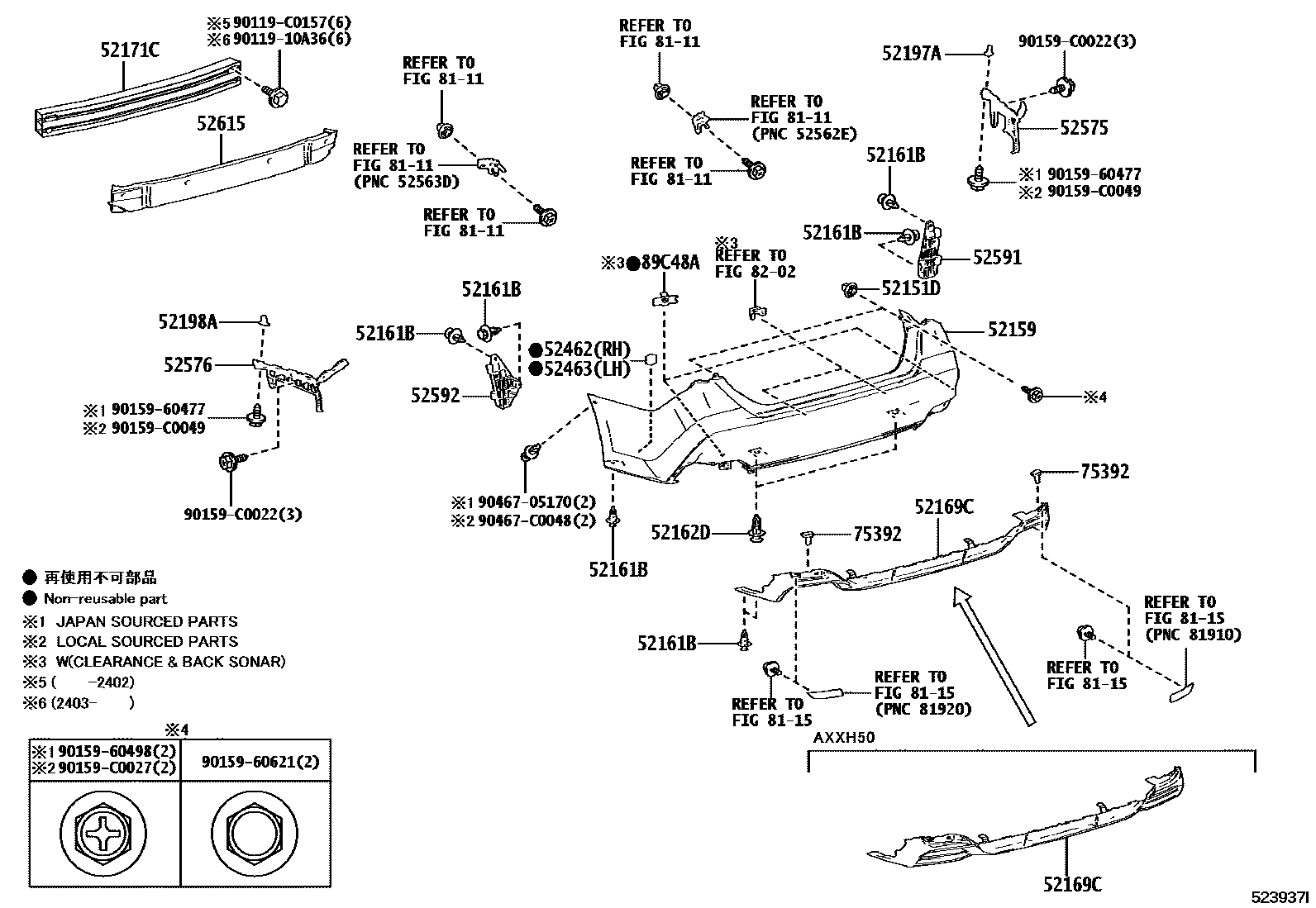

REAR BUMPER & BUMPER STAY

0001 1 0003 1

52151DGROMMET(FOR REAR BUMPER)

main90189-06235iMXXA50..B,E;AXXH52,MXXH50202407

TYPE A:REFER ILLUST.

main90189-06235iAXXA50,MXXA50;AXXH50..B,G,Q201903-202303

main90189-06242iMXXA50..B,E;AXXH52,MXXH50202407

(J),TYPE B:REF ILL.

main90189-06242iMXXA50..B,E202304-202407

(J)

main90189-C0031iMXXA50..B,E;AXXH52,MXXH50202407

(L),TYPE B:REF ILL.

main90189-C0031iMXXA50..B,E202304-202407

(L)

52159COVER, REAR BUMPER

main52159-07905iMXXA50..B,E201903-202407

PAINT REQ.

main52159-07906iAXXA50,MXXA50..G201903-202303

PAINT REQ.

main52159-07908iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02040iAXXA50,MXXA50201903-202407

(L)

main52161-16010iAXXA50,MXXA50;AXXH50..B,G,Q201903-202407

(J)

sub52161-0K040

52162DPIECE, REAR BUMPER

main52161-02040iAXXH50201903-202407

(L)

main52161-16010iAXXH50..E201903-202407

(J)

sub52161-0K040

52169CCOVER, REAR BUMPER, LOWER

main52169-07090-C0iAXXA50,MXXA50201903-202106

BLACK,070 ,1K0 ,209 ,3T3 ,4U3 ,4X9

sub52169-07110

main52169-07100-C1iAXXH50201903-202107

BLACK,070 ,1K0 ,209 ,3T3 ,4U3 ,4X9

sub52169-07120

main52169-07110-C0iMXXA50..B,E202304-202407

BLACK,089 ,1K0 ,209 ,3T3 ,4X9 ,8X2

main52169-07110-C0iAXXA50,MXXA50202106-202303

BLACK,070 ,089 ,1K0 ,209 ,3T3 ,4U3 ,4X9 ,8X2

main52169-07120-C0iAXXH50..E202107-202303

BLACK,070 ,089 ,1K0 ,209 ,3T3 ,4U3 ,4X9 ,8X2

main52169-07120-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,089 ,1K0 ,1L5 ,209 ,4X9 ,6X8

main52169-07120-C0iAXXH50202304

BLACK,089 ,1K0 ,209 ,3T3 ,4X9 ,8X2

52171CREINFORCEMENT, REAR BUMPER

main52171-07020iAXXH50201903-202201

main52171-07030iAXXA50,AXXH50,MXXA50202202-202407

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-07010iMXXA50..G;AXXA50,AXXH50202106-202407

(L)

main52197-53040iAXXA50,MXXA50;AXXH50..B,G,Q202106-202407

(J)

main52197-53040iAXXH50201903-202107

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-07010iMXXA50..B,E202106-202407

(L)

main52198-53020iAXXA50,MXXA50201903-202107

main52198-53020iAXXA50,MXXA50;AXXH50..B,G,Q202106-202407

(J)

52462PAD, REAR BUMPER, RH

main52462-F4040iAXXA50,MXXA50201903-202407

NO PAINT REQ.

52463PAD, REAR BUMPER, LH

main52462-F4040iAXXA50,MXXA50201903-202407

NO PAINT REQ.

52575RETAINER, REAR BUMPER SIDE, RH

main52575-07030iAXXA50,MXXA50201903-202407

52576RETAINER, REAR BUMPER SIDE, LH

main52576-07030iAXXA50,MXXA50201903-202407

52591SEAL, REAR BUMPER SIDE, RH

main52591-07030iAXXA50,MXXA50201903-202407

52592SEAL, REAR BUMPER SIDE, LH

main52592-07030iAXXH50201903-202407

52615ABSORBER, REAR BUMPER ENERGY

main52615-07050iAXXA50,MXXA50;AXXH50..B,G,Q201903-202407

main52615-YK010iMXXA50..B,E;AXXH52,MXXH50202407

75392RETAINER, OUTSIDE MOULDING

main75392-0R030iMXXA50..B,E;AXXH52,MXXH50202407

(L)

main75392-35200iMXXA50..B,E;AXXH52,MXXH50202407

(J)

main75392-35200iAXXA50,MXXA50201903-202407

8111

8115

8202

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-06270iAXXA50,AXXH50,MXXA50..G,Q201903-202303

main89348-07280-A0iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

PLATINUM WHITE PEARL MC.,089,RH

main89348-07280-B0iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

METAL STREAM ME,1K0,RH

main89348-07280-B1iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

PRECIOUS METAL,1L5,RH

main89348-07280-C0iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

BLACK MC.,209,RH

main89348-07280-E0iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

BLACKISH BROWN MC.,4X9,RH

main89348-07280-G0iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

BLACKISH GREEN CS.GF.,6X8,RH

main89348-07290-A0iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

PLATINUM WHITE PEARL MC.,089,LH

main89348-07290-B0iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

METAL STREAM ME,1K0,LH

main89348-07290-B1iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

PRECIOUS METAL,1L5,LH

main89348-07290-C0iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

BLACK MC.,209,LH

main89348-07290-E0iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

BLACKISH BROWN MC.,4X9,LH

main89348-07290-G0iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

BLACKISH GREEN CS.GF.,6X8,LH

9011910A36

main90119-10A36

90119C0157

main90119-C0157

9015960477

main90159-60477

9015960498

main90159-60498

9015960621

main90159-60621

90159C0022

main90159-C0022

90159C0027

main90159-C0027

90159C0049

main90159-C0049

9046705170

main90467-05170

90467C0048

main90467-C0048

30 parts on this diagram · 2 diagrams in section
