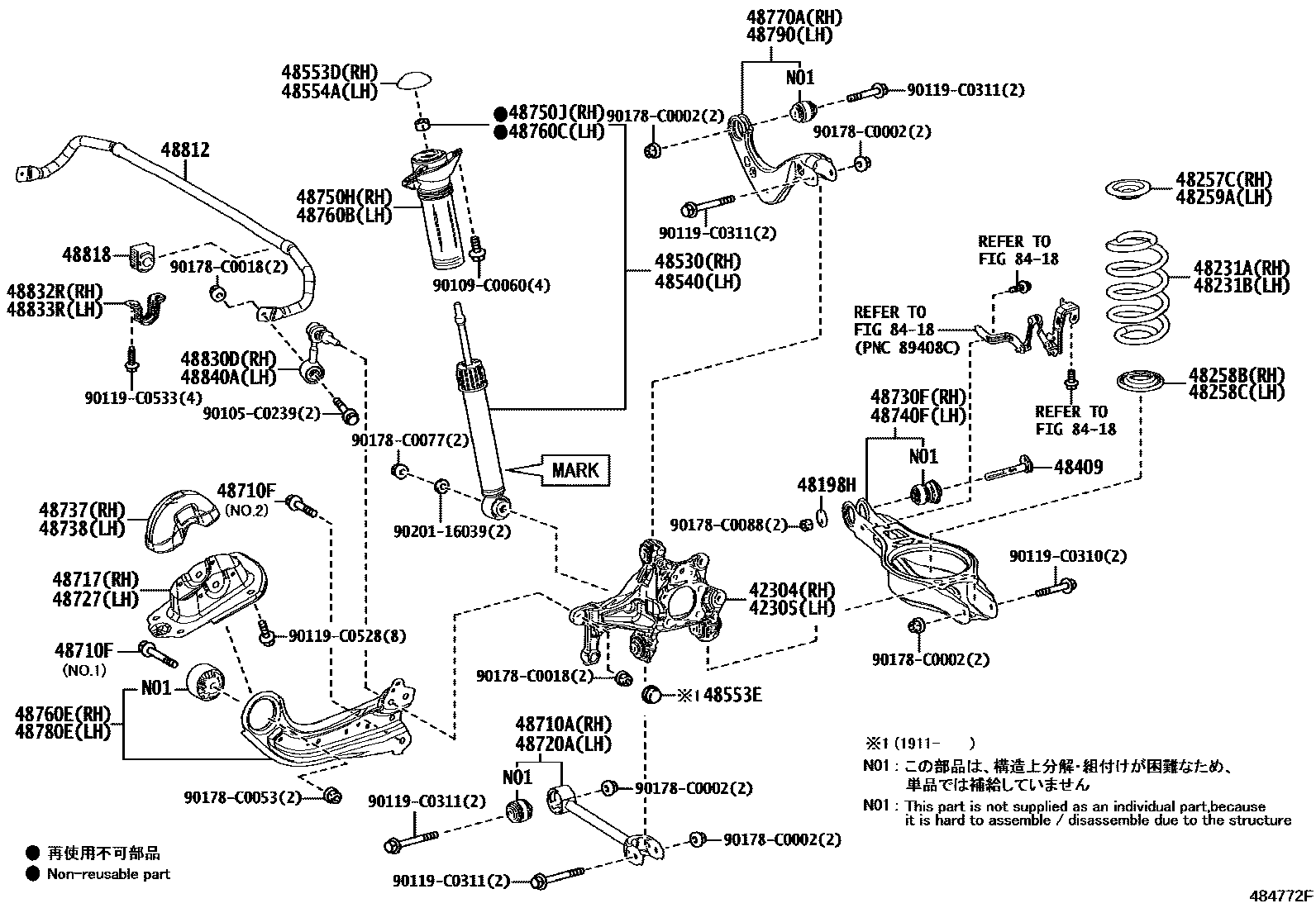

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48198HCAM, CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-41020
MARK 48530-07250
MARK 48530-07260
MARK 48530-07310
MARK 48530-07320
MARK 48530-07330
MARK 48530-07310
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-07250
MARK 48530-07260
MARK 48530-07310
MARK 48530-07320
MARK 48530-07330
MARK 48530-07310
MARK 48540-41020
48553DCAP, REAR SHOCK ABSORBER, RH
48553ECAP
48554ACAP, REAR SHOCK ABSORBER, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48710FBOLT(FOR REAR TRAILING ARM)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
48717BRACKET, REAR SUSPENSION ARM, RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48727BRACKET, REAR SUSPENSION ARM, LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48832RBRACKET, REAR STABILIZER BAR, NO.1 RH
48833RBRACKET, REAR STABILIZER BAR, NO.1 LH
8418
90105C0239
main90105-C0239
90109C0060
main90109-C0060
90119C0310
main90119-C0310
90119C0311
main90119-C0311
90119C0528
main90119-C0528
90119C0533
main90119-C0533
90178C0002
main90178-C0002
90178C0018
main90178-C0018
90178C0053
main90178-C0053
90178C0077
main90178-C0077
90178C0088
main90178-C0088
9020116039
51 parts on this diagram · 2 diagrams in section
