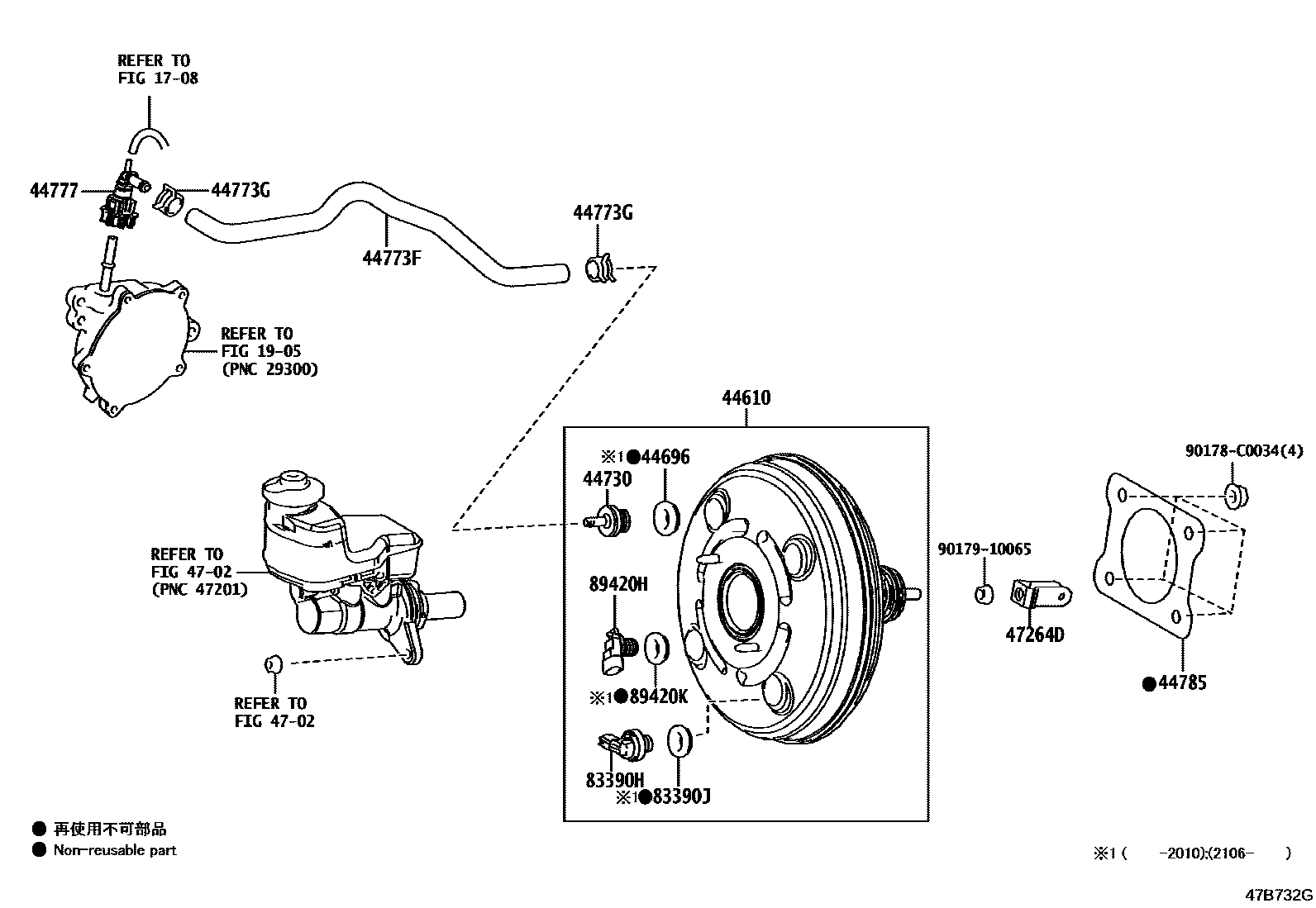

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1708

1905

44610BOOSTER ASSY, BRAKE

main44610-07160iAXXA50201903-201907

sub44610-07161

main44610-07161iAXXA50,MXXA50201908-202010

main44610-07180iAXXA50,MXXA50202010-202203

main44610-07190iAXXA50,MXXA50202203-202407

44696GROMMET, CHECK VALVE

main90080-48071iAXXA50,MXXA50201903-202203

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iMXXA50..B,E201908-202407

main44730-22150iAXXA50201903-201907

44773FHOSE, UNION TO CHECK VALVE

main44773-06190iMXXA50..B,E202407

main44773-07080iAXXA50,MXXA50201903-202407

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-C0034iAXXA50,MXXA50201903-202407

(L)

main90467-16014iMXXA50..B,E201903-202407

(J)

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-06020iMXXA50..B,E202208-202407

main44777-33010iAXXA50,MXXA50201903-202207

44785GASKET, BRAKE BOOSTER

main44785-02050iAXXA50,MXXA50201903-202407

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-06030iAXXA50,MXXA50201903-202407

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iAXXA50,MXXA50201903-202203

83390JGROMMET, VACUUM WARNING SWITCH

main90080-48071iAXXA50,MXXA50201903-202203

89420HSENSOR ASSY, VACUUM

main89421-52020iAXXA50,MXXA50201903-202203

main89421-71040iAXXA50,MXXA50202203-202407

89420KGROMMET, VACUUM SENSOR

main90016-AT003iMXXA50..B,E202203-202407

main90080-48071iAXXA50,MXXA50201903-202203

90178C0034

main90178-C0034

9017910065

main90179-10065

17 parts on this diagram · 2 diagrams in section
