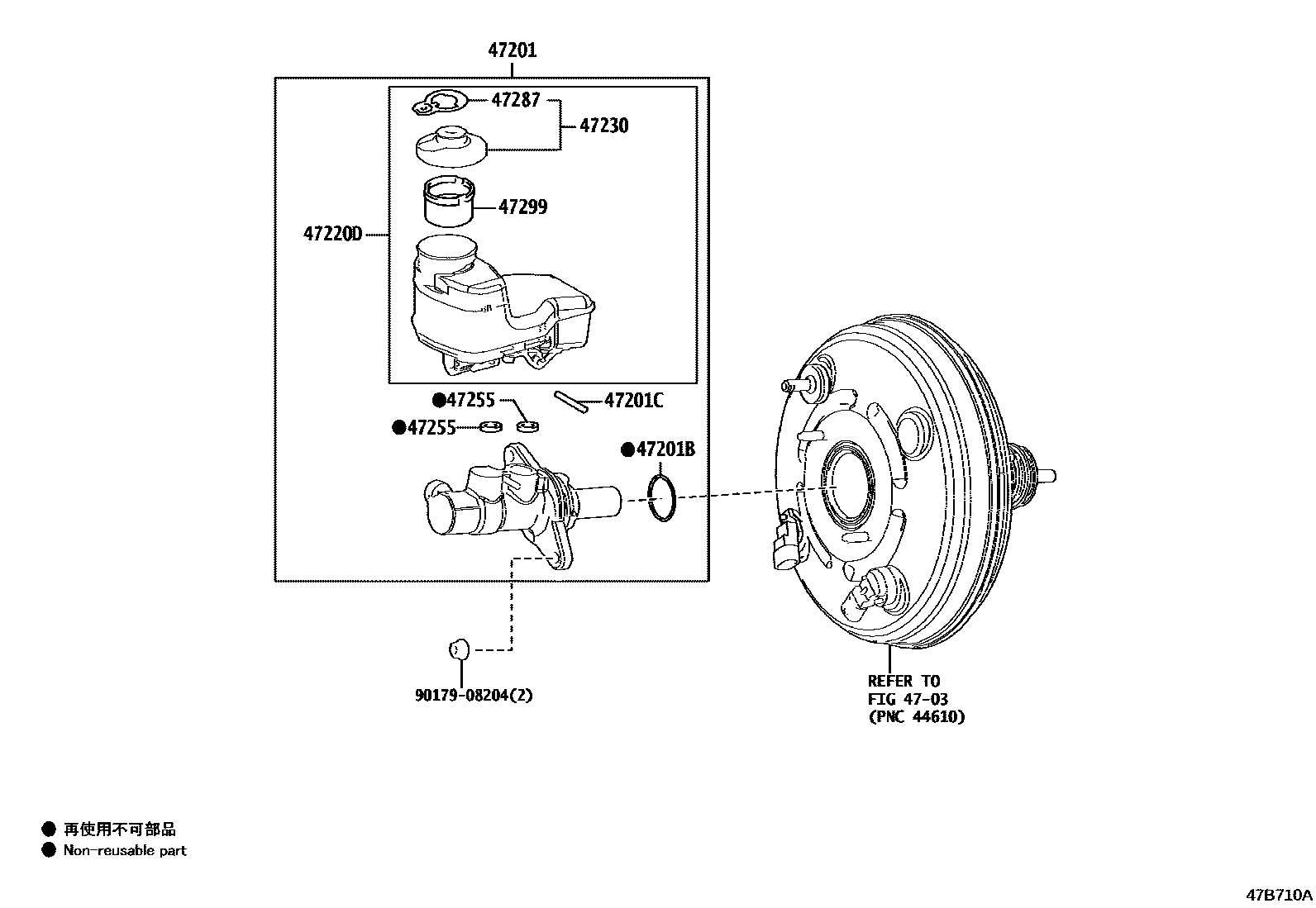

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-06550iAXXA50,MXXA50201903-202010

main47201-07120iAXXA50,MXXA50202010-202407

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH902iMXXA50..B,E201903-202407

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iAXXA50,MXXA50201903-202407

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-06350iMXXA50..B,E201903-202407

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0R030iAXXA50,MXXA50201903-202303

main47230-0R100iAXXH50202304

main47230-33330iAXXH50202002-202008

sub47230-47090

main47230-47090iAXXH52,MXXH50201903-202303

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT002iAXXA50,MXXA50201903-202407

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iAXXA50,MXXA50201903-202407

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iAXXA50,MXXA50201903-202407

9017908204

main90179-08204

10 parts on this diagram · 3 diagrams in section
